계양 G710L-E-02 4사이클 SV엔진 분해도

제품이미지

7 베어링 슬리브

266898-7

1,100

총 127개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

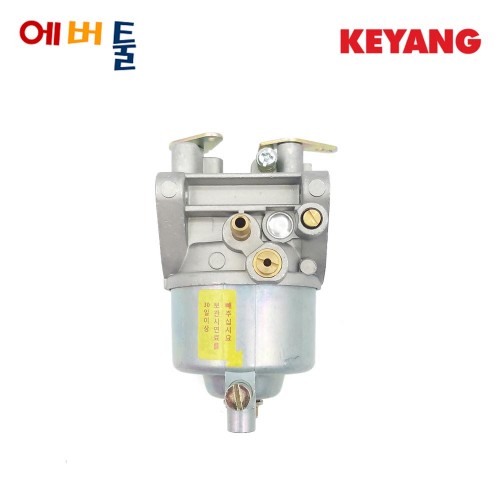

1-1	2040285	카뷰레터(F,GUANGDA)	1	41,800
1-2	2100404	INSULATOR	1	1,100	품절
1-3	2413203	카뷰레터가스켓(A)	2	550

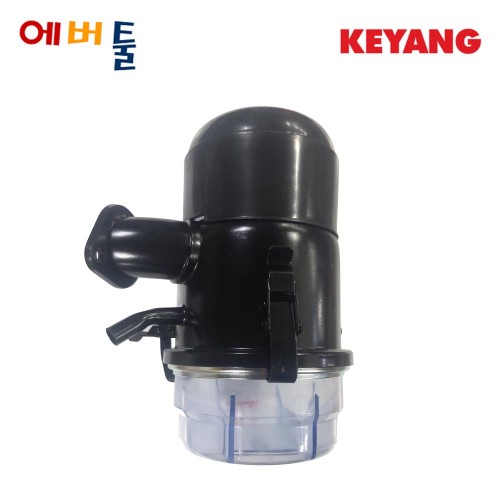

1-4	3100054	에어크리너아세이	1	40,700	품절
1-5	2402015	FLANGE BOLT(M6X95)(17)	2	550
1-6	2051801	CHOKE ROD	1	550
1-7	2071107	GROMMET(A)	1	1,100
1-8	2413204	카뷰레터가스켓(B)	2	550
1-9	2064018	CHOKE BRACKET	1	1,100
1-10	7739002	CHOKE LABEL	1	550
1-11	2070203	BREATHER TUBE	1	1,650
2-1	3120112	CRANKSHAFT ASSY	1	66,000
2-3	2024290	CRANKSHAFT GEAR	1	12,100	품절
2-4	2408207	WOODRUFF KEY(5X18)	1	1,100
2-5	2408206	WOODRUFF KEY(5*16)	1	550	품절
3-1	2402020	FLANGE BOLT(M8*30)(25)	8	550	품절
3-2	2413013	OIL SEAL(TC30X45X8 엔진)	1	1,100	품절
3-3	2135036	OIL GAUGE	2	1,100
3-4	2041408	CRANKCASE COVER	1	22,000
3-6	2021701	GOVERNOR GEAR SHAFT	1	1,100	품절
3-7	3152502	GOVERNOR GEAR ASSY	1	2,200
3-8	2417037	BALL BEARING(6206-엔진파트)	2	4,400	품절
3-9	2413205	CRANKCASE COVER GASKET	1	1,650
4-1	2040327	CYLINDER BLOCK	1	121,000	품절
4-1.1	2040328	CYLINDER BLOCK	1	121,000	품절
4-2	2402403	STUD BOLT	2	1,100
4-3	2417037	BALL BEARING(6206-엔진파트)	1	4,400	품절
4-4	2417029	BALL BEARING(6203-엔진파트)	1	2,420	품절
4-5	2051907	CLAMP(C)	1	1,100
4-7	3150602	BREATHER VALVE ASS'Y	1	4,400	품절
4-8	2413201	BREATHER GASKET	1	1,100
4-9	2409802	DOWEL PIN	2	220	품절
4-10	2407728	DRAIN PLUG WASHER	3	1,100
4-11	2013504	DRAIN PLUG	3	660
4-12	2413012	OIL SEAL(TC30428_엔진)	1	1,100
5-1	2413206	CYLINDER HEAD GASKET	1	4,950
5-3	2060102	TOP COVER(국제)	1	1,100
5-4	2402025	FLANGE BOLT(M8*43,SERRATE)	8	550	품절
5-5	2042107	CYLINDER HEAD(국제)	1	16,500
5-6	2051905	CLAMP(B)	1	550	품절
6-1	7725002	NAME PLATE(A)	1	220	품절
6-1.1	7725015	NAME PLATE(A)	1	220
6-3	2052802	CYLINDER BAFFLE	1	550	품절
6-4	7737106	DRIVE LABEL	1	220	품절
6-5	2053710	FAN COVER	1	15,400
6-5.1	2053709	FAN COVER	1	12,100
6-5.2	2053711	FAN COVER(아세아)	1	14,300
6-6	2054501	FRONT COVER(B)(아세아)	1	6,050	품절
6-7	2070959	FUEL HOSE	1	1,650
6-7.1	2070446	FUEL HOSE,G810L-E-01(370MM)	1	3,850
6-8	2415002	FUEL HOSE CLIP(P10.5)	2	550
6-9	2064041	FRONT BRACKET	1	1,650
6-10	2008804	STOP S/W(산업용)	1	2,200
6-11	2402832	SCR BOLT(키부착)	1	1,100
6-12	2056201	STARTING S/W BRACKET(키부착)	1	4,400
7-1	2403808	NUT(M14XP1.5)	1	1,100	품절
7-2	3140701	FLYWHEEL ASS'Y(4A)	1	82,500	품절
7-2.1	3140706	FLYWHEEL ASSY	1	58,300
7-3	3112408	IGNITION COIL ASSY(충전)	1	16,500
7-3.1	3112405	IGNITION COIL ASSY(점화)	1	14,300
7-4	3112402	IGNITION COIL ASSY(전원,4A)	1	16,500
7-4.1	3112403	IGNITION COIL ASSY(점등)	1	16,500
7-5	2404412	+PAN HD M/C S&SW&PW(M5*30)	4	110	품절
7-6	3119019	TRIGGER COIL ASSY(점화,4A)	1	16,500
7-7	2400102	HEX HD B & SW(M6*12)	2	110	품절
7-8	3112406	IGNITION COIL ASSY(점화,4A)	1	22,000	품절
7-9	2404266	+PAN HD M/C S&SW(M6*20)	2	220	품절
7-10	3112001	UNIT ASSY(4A)	1	19,800
7-10.1	3112004	UNIT ASSY	1	16,500
7-12	2055805	IGNITION BRACKET(키부착)	1	5,500
7-15	2071901	PLUG CAP	1	550

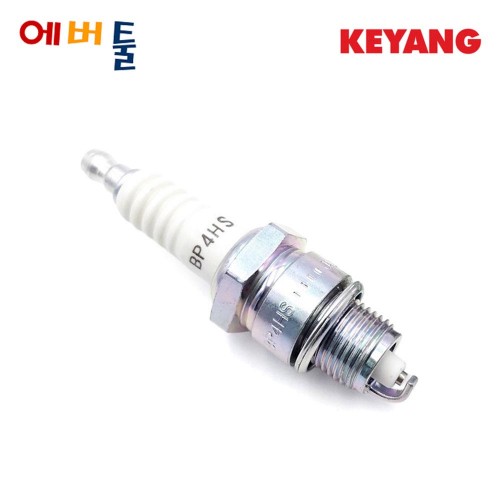

7-16	2012701	점화플러그 NGK BP-4HS	1	4,400
7-17	2071102	GROMMET	1	220	품절
7-18	2411601	PLUG SPRING	1	550
7-19	2058102	RECOIL STARTER PULLY	1	3,300

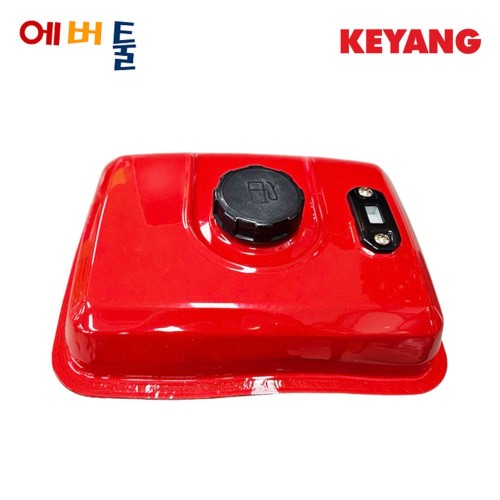

8-1	3100602	연료탱크	1	49,500	품절

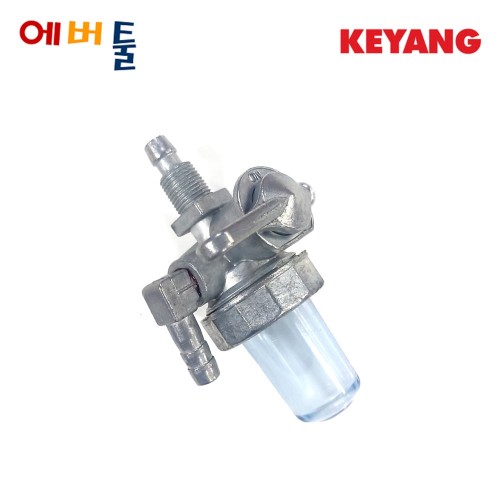

8-3	2418003	연료코크(부착형)	1	16,500
8-3.1	3140838	연료코크(부착형)	1	16,500
8-3.2	2038033	FUEL COCK FAN COVER측 부착용	1	13,200
8-4	7739011	INSTRUCTION LABEL	1	110
8-5	3109035	FUEL TANK CAP ASSY	1	3,300
9-1	2021703	GOVERNOR SHAFT	1	2,750	품절
9-3	2032202	GOVERNOR ROD	1	1,100
9-4	2411775	ROD SPRING	1	1,100
9-5	2403104	FLANGE NUT(M8)	2	2,200
9-6	2411404	GOVERNOR SPRING	1	1,100
9-7	2054804	GOVERNOR LEVER	1	1,650	품절
9-8	2404070	+PAN HD M/C SCREW(M6*40)	2	110	품절
9-9	2403103	FLANGE NUT(M6)	2	110	품절
9-10	3100305	CONTROL PANEL ASSY(키부착)	1	5,500

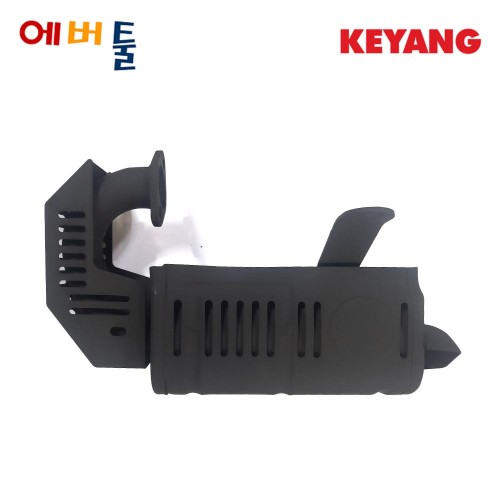

10-1	3100906	머플러 아세이	1	60,500
10-2	2403023	HEX NUT(M8,육각소형1종)	2	110	품절
10-3	2407111	(M.K)SPRING LOCK WASHER(M8)	2	1,100
10-4	2413208	머플러가스켓	1	1,100
11-1	2412611	PISTON TOP RING	1	3,300
11-2	2412603	PISTON 2ND RING	1	3,300
11-3	2412607	PISTON OIL RING	1	4,400
11-4	2045216	PISTON (CN,MAHLE)	1	14,300
11-5	2415103	PISTON PIN CLIP	2	550
11-6	3142017	CONNECTING ROD ASSY(AS용)	1	22,000	품절
11-8	2400189	PISTON PIN(CN)	1	2,750
11-9	9343881	PISTON RING SET	1	12,100	품절

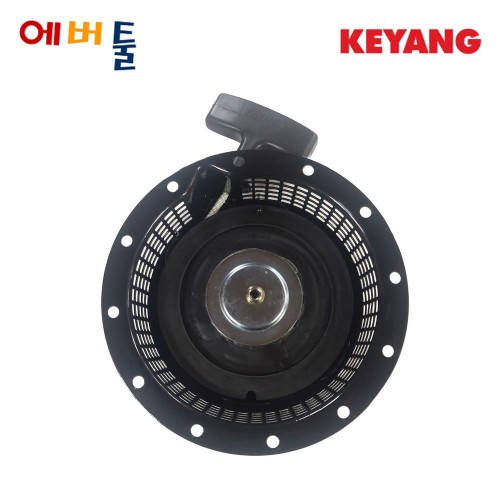

12-1	3150386	리코일스타터 아세이	1	24,200
12-1.1	3150149	RECOIL STARTER ASSY(CN)	1	24,200
12-2	2402012	FLANGE BOLT(M6*8)	1	110	품절
13-1	2402822	STARTER BOLT	2	220	품절
13-2	3119141	STARTER MOTOR ASSY(동진)	1	93,500
13-3	2403104	FLANGE NUT(M8)	2	2,200
13-4	2008017	MAGNETIC SWITCH	1	17,600
14-1	2031704	EXHAUST VALVE	1	3,850
14-2	2411706	VALVE SPRING	2	550
14-3	2060402	VALVE SPRING RETAINER	2	550
14-4	2031190	TAPPET	2	3,300
14-5	2033004	INTAKE VALVE	1	3,300
14-6	3120007	CAMSHAFT SYSTEM	1	55,000
15-1	2009719	STARTING S/W(키부착)	1	11,550
15-1.1	2009724	STARTING S/W(아세아)	1	12,100
15-2	1164801	CONNECTOR CABLE(아세아)	1	1,650
15-3	2038104	WIRE END PARTS	1	1,100
15-4	2407725	BIG WASHER	1	1,100
15-5	2408108	SUNK KEY(7*45,아세아)	1	550	품절
15-7	2455006	BOX SPANNER(21X165)	1	3,850
15-8	3111602	REGULATOR ASSY(아세아)	1	33,000
15-8.1	3111603	REGULATOR ASSY(키부착)	1	30,800	품절
15-11	3119007	RELAY ASS'Y	1	13,200	품절
15-12	2455302	WRENCH SPANNER(10*12)	1	1,760	품절
15-13	3156201	FUSE ASSY(키부착)	1	2,200
