보쉬 GBH2-20DRE 분해도 (3611B5A4B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 72개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

2	1619P08306	Field	1	14,190

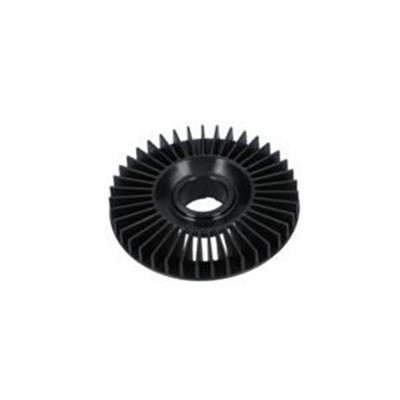

3/3/6	2606610097	Fan	1	2,530	품절
3/66	1900905029	Ball Bearing 608-2Z/C3	1	14,190	품절
3/67	1610905047	Groove ball bearing	1	4,840	품절
3/68	1600100037	Plain Washer	1	1,210	품절
4	1617200542	Switch	1	16,390
5	1614460026	Power supply cord	1	12,430
6	2600703018	Grommet	1	1,980
12	1617328032	Suppression Filter	1	4,840	품절
14	1615806187	Bearing Bracket	1	1,650
15	2603100056	Damping rubber	1	1,430
19	1610210184	O-Ring	2	1,210	품절
20	1612026151	Clamp Handle	1	9,900
20/2	1614690009	Driver Pin	1	2,530
20/3	1612026035	Switch Button	1	1,430
20/4	1610210046	O-Ring	1	1,650
20/5	1614611006	Compression Spring	1	2,530
22	1616328053	Gear Sleeve	1	5,500
27	1618710085	Striker	1	6,380
29	1613100034	Piston Pin	1	2,200
33	1615820103	Switching Element	1	1,980
34	1619P00829	Retaining ring	1	1,210
37	1610100016	Guide Disc	2	1,430
40	1613100019	Straight Pin	2	1,430
45	1611016003	Holding Plate	1	1,650
47	1619P09954	Plain bearing	1	3,080	품절
49	1615820104	Switching Element	1	1,980
51	1610021004	Shift Plate	1	1,210
52	1610021006	Shift Plate	1	1,210
53	1610021005	Shift Plate	1	1,210
54	1613023005	Guide Rod	1	1,430
55	1610508052	Protective Cap	1	1,430
60	1614601077	Spring retaining ring	1	1,430
63	1903230013	Ball	1	1,650
69	1613231030	Change-Over Switch	1	1,210	품절
71	2603490023	Torx Oval-Head Screw	5	1,210
72	1619P09645	Torx Oval-Head Screw	4	1,210	품절
73	1619P00220	Torx Oval-Head Screw	1	1,210
74	1619P00219	Tapping Screw	2	1,210	품절
75	1614643025	Compression Spring	1	1,210
76	1614643023	Compression Spring	1	1,210
77	1619P09722	Shaft Seal	1	2,200	품절
651	2603001009	Depth-Gauge	1	3,080
801	16170006B8	Motor Housing	1	21,450	품절
816	1617014146	Carbon-Brush Set	1	6,380
818	16170006BB	Intermediate Flange	1	16,390
821/28	1613124084	Striker Pin	1	2,860
821/31	1614601053	Retaining ring	1	1,210
821/32	1610508051	Rubber Bushing	1	2,860
821/36	1610551008	Holding Plate	1	1,430	품절
821/38	1616317084	Cylindrical Gear	1	12,430
821/39	1614601055	Retaining ring	2	1,210
821/40	1613100032	Straight Pin	2	1,210	품절
821/41	1610102072	Ratchet Disc	1	3,740
821/44	1610102092	Friction Washer	1	1,210
821/46	1614630003	Compression Spring	1	1,650
821/50	1619P11562	Guide Bushing	1	6,380	품절
821211	1619P09815	Hammer Pipe	1	24,200	품절
822	160202508X	Auxiliary Handle	1	12,430	품절
822120	160202507H	Auxiliary Handle	1	6,930
822124	1611316021	Clamping Band	1	2,200
822125	1613490002	T-Head Bolt	1	2,860
822802	1617000475	Support clamp	1	6,380
824	16170006BC	Jack Shaft	1	24,200
825	1607000E0P	Jack Shaft	1	33,110
826	1618700083	Hammer Piston	1	6,380

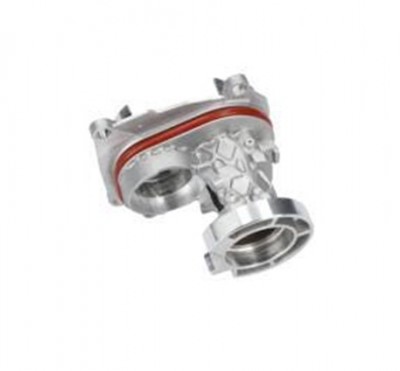

843	16170006BF	Gear Housing	1	21,450	품절

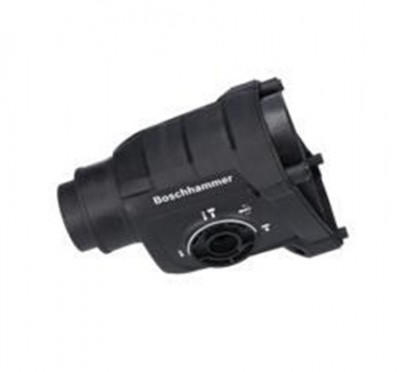

856	16170006D3	Protection Sleeve	1	6,930
865	1610210186	O-Ring	1	1,650
870	1619P01776	Connecting Cable	1	3,080
892	1615430020	Grease Tube	1	14,190
893	1615430001	Grease Tube	1	14,190
