보쉬 GBH2-26DRE 분해도 (0611253740)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 95개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

2	1619P02428	Field	1	14,190
3/5	1616610094	Fan	1	1,650	품절
3/13	1610905025	Groove ball bearing	1	3,960	품절
4/1102	1614449021	Connecting Cable	1	1,210
4/102	1614449015	Connecting Cable	1	1,430
6	1600703034	Grommet	1	1,980
11	1611110X17	Reference Plate	1	2,530
14	1619P15694	Ball Bearing	1	1,980	품절
16	1614336061	Brush Plate	1	12,430
17	1614465011	Suppression Filter	2	3,960
19	1611329024	Switch Contact	1	1,430
22	1616312004	Cylindrical Gear	1	8,030
27	1610311018	Striker	1	12,430
28	1613124081	Striker Pin	1	6,380
29	1613105012	Piston Pin	1	2,530
31	1610913016	Needle-Roller Assembly	1	2,530
32	1612026037	Clamp Handle	1	6,380
32/46	1614690002	Driver Pin	1	1,430
32/49	1612026035	Switch Button	1	1,430
32/76	1610210046	O-Ring	1	1,650
32/83	1614611006	Compression Spring	1	2,530
33	1610590014	Holding Jacket	1	1,650	품절
34	1610190067	Supporting Disc	1	1,650
35	1610202024	Plain bearing	1	3,080
36	1611016003	Holding Plate	1	1,650
37	1613100019	Straight Pin	3	1,430
38	1610190048	Catch Disk	1	3,080
41	1615500343	Housing Cover	1	5,500
42	1610102073	Thrust Ring	1	3,080
44	1610508047	Protective Cap	1	1,650
46	1610390051	Guide Bushing	1	3,960
47	1613100030	Needle Roller	4	2,200
48	1611098008	Tab Washer	1	1,650
49	1615700044	End Shield	1	1,650
50	1614611020	Compression Spring	1	2,200
54	1610502016	Rubber Bushing	1	1,210
55	1610290079	Seal Ring	1	2,530
56	1616B00086	O-Ring	1	1,650
57	1610210068	O-Ring	1	1,430
58	1610210178	O-Ring	1	1,430
59	1610283035	Rotary shaft lip seal	1	3,740
60	1610210176	O-Ring	1	1,210
62	1610210179	O-Ring	1	1,980
63	1610910063	Needle bearing	1	3,740
64/1	1610190060	Supporting Disc	1	1,650
66	1610202021	Plain bearing	1	1,980
68	1610283036	Rotary shaft lip seal	1	4,840
70	1903230013	Ball	1	1,650
71	1610101011	Shim washer	2	1,430
72	1604601027	Retaining ring	1	1,210	품절
74	1614601027	Retaining ring	1	1,210
75	1610101629	Retaining Washer	2	1,210
76	160343000A	Thread-forming tap. Screw	4	1,210
77	2603490024	Torx Oval-Head Screw	3	1,430
78	2603490022	Screw	1	1,210
79	1613435023	Thread-forming tap. Screw	2	1,210	품절
82	1614601034	Retaining ring	1	1,650
83	1604601028	Retaining ring	1	1,210
101	1614449014	Connecting Cable	1	1,650
103	1613435034	Lens Head Screw	1	1,210
105	1614611021	Compression Spring	1	1,430
651	1613001009	Depth-Gauge	1	2,530
691895	1615438409	Lock	2	3,960
691895	1615438431	Lock	2	3,960
801	1617000558	Motor Housing	1	18,480
803	1619P00349	Armature set	1	49,720
804	16170006D4	On-Off Switch	1	11,220

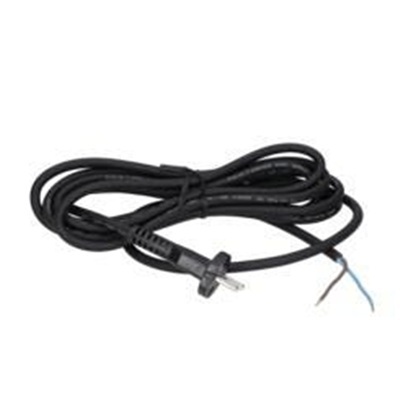

805	1607000392	Power supply cord	1	14,190
806	1900452012	End Splice	1	1,430	품절
811	1617000525	Carbon-Brush Set	1	6,930
820	16170006DX	Intermediate Flange	1	14,190
821	1617000564	Pipe	1	54,670
822	160202508X	Auxiliary Handle	1	12,430	품절
822120	160202507H	Auxiliary Handle	1	6,930
822124	1611316021	Clamping Band	1	2,200
822125	1613490002	T-Head Bolt	1	2,860
822802	1617000475	Support clamp	1	6,380
823	1617000579	Toothed Shaft	1	21,450
824	16170006EJ	Toothed Shaft	1	18,480
825	1617000598	Tool Holding Fixture	1	44,880
826	1600A01U34	Hammer Piston	1	14,190
830	1600A01U33	Drive bearing	1	14,190
840	1617000581	Gear Housing	1	30,140
843	1617000582	Protection Sleeve	1	6,930
845	1610522013	Air-Deflector Ring	1	1,650
861	1615820097	Switching Element	1	3,080
864	1617000A07	Supporting Disc	1	6,930
866	1614611022	Plain bearing	1	1,980
870/2	2603421207	Countersunk-Head Screw	1	1,430
871	1608571088	Chuck	1	21,450
872	2607950007	Chuck Wrench	1	3,960
892	1615430001	Grease Tube	1	14,190
893	1615430002	Grease Tube	1	36,630	품절
894	1615430020	Grease Tube	1	14,190
895	1615430019	Oil Reservoir	1	49,720
