보쉬 GBH2-28 분해도 (3611B675B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 88개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

2	1614220221	Pole Shoe	1	14,190

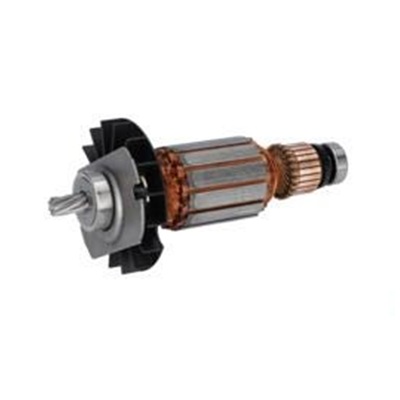

3	1614010270	Armature	1	54,670
3/13	1610905032	Groove ball bearing	1	3,080
3/14	1610905048	Groove ball bearing	1	5,500
3/49	1615700044	End Shield	1	1,650

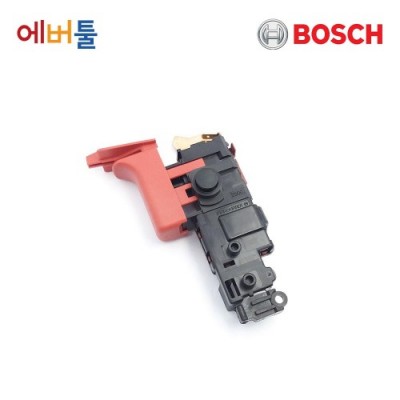

4/4	1600A02E6N	On-Off Switch	1	26,840
4/6	1600703034	Grommet	1	1,980
4/102	1614449015	Connecting Cable	1	1,430
4/103	1613435034	Lens Head Screw	1	1,210
9	160111C0TG	Manufacturer's nameplate	1	2,200	품절
10	160111C0TH	Manufacturer's nameplate	1	2,200	품절
11	1611110W02	Reference Plate	1	1,980	품절
12	1614465011	Suppression Filter	2	3,960
16	1614336093	Brush Plate	1	9,900	품절
19	1611329024	Switch Contact	2	1,430
24	16170006EJ	Toothed Shaft	1	18,480
24/65	1610905016	Groove ball bearing	1	6,380
26	16170006A5	Hammer Piston	1	30,140
26/27	1610311019	Striker	1	14,190
26/29	1600A01TD0	Piston Pin	1	2,860
26/56	1610210121	O-Ring	1	1,980
26/71	1610100016	Guide Disc	2	1,430
32	1612026037	Clamp Handle	1	6,380
32/46	1614690002	Driver Pin	1	1,430
32/49	1612026035	Switch Button	1	1,430
32/76	1610210046	O-Ring	1	1,650
32/83	1614611006	Compression Spring	1	2,530
36	1615808106	Bearing Holder	1	1,430
41	1615500428	Housing Cover	1	6,380
45	1610522015	Air-Deflector Ring	1	1,650	품절
47	1616312010	Control Element	1	3,740
54	1610502016	Rubber Bushing	1	1,210
55	1610290104	O-Ring	1	2,530
57	1610210208	O-Ring	1	1,430
76	160343000A	Thread-forming tap. Screw	4	1,210
77	2603490024	Torx Oval-Head Screw	3	1,430
79	1613435042	Thread-forming tap. Screw	4	1,210	품절
101	1614449014	Connecting Cable	1	1,650
105	1614643027	Compression Spring	1	1,430
109	160343508E	Thread-forming tap. Screw	2	1,210	품절
120	160202508X	Auxiliary Handle	1	12,430	품절
120120	160202507H	Auxiliary Handle	1	6,930
120124	1611316021	Clamping Band	1	2,200
120125	1613490002	T-Head Bolt	1	2,860
120802	1617000475	Support clamp	1	6,380
203	1610508047	Protective Cap	1	1,650
206	1613230003	Ball	1	1,430
207	1614601027	Retaining ring	1	1,210
208	1610101629	Retaining Washer	1	1,210
209	1610102638	Friction Washer	1	2,530
321	16170006CA	Toolholder	1	49,720
321/22	1616312004	Cylindrical Gear	1	8,030
321/28	1613124098	Striker Pin	1	14,190
321/33	1610590020	Holding Jacket	1	3,960
321/37	1613100019	Straight Pin	3	1,430
321/38	1600A008AG	Catch Disk	1	2,530
321/42	1610102084	Thrust Ring	1	5,500
321/46	1610390068	Guide Bushing	1	11,220
321/50	1614615008	Compression Spring	1	3,740
321/58	1610210105	O-Ring	2	2,860
321/59	1600A009VC	Shaft Seal	1	2,200
321/60	1610210209	O-Ring	1	1,430
321/72	1604601027	Retaining ring	1	1,210	품절
321/86	1614601034	Retaining ring	1	1,650
321/87	1604601028	Retaining ring	1	1,210
340	16058065C1	Gear Housing	1	24,200
340/48	1611098008	Tab Washer	1	1,650
340636	1610910063	Needle bearing	1	3,740
340636	1610390069	Bushing	1	1,650	품절
340/68	1610283036	Rotary shaft lip seal	1	4,840
340/78	2603490022	Screw	3	1,210
688	1613001009	Depth-Gauge	1	2,530
801	16170006BS	Motor Housing	1	30,140
805	1614460026	Power supply cord	1	12,430
811	1607000485	Carbon-Brush Set	1	66,660
811	1617000525	Carbon-Brush Set	1	6,930
820	16170006BT	Intermediate Flange	1	30,140
821	16170006C9	Tool Holding Fixture	1	40,480
823	16170006BW	Gear Sleeve	1	14,190
825	16170006CB	Tool Holding Fixture	1	8,030
828	1617000697	Striker Pin	1	33,110
830	16170006BX	Drive bearing	1	30,140
839	1607000C9A	Cover	1	6,380	품절
861	1615820097	Switching Element	1	3,080
870/2	2603421207	Countersunk-Head Screw	1	1,430
871	1608571069	Chuck	1	18,480
872	2607950007	Chuck Wrench	1	3,960
891	16170006BZ	Weight	1	3,960
