계양 WP-50 양수기 분해도

제품이미지

7 베어링 슬리브

266898-7

1,100

총 121개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1-2	9350354	볼트/GB5787-M8X32	4	1,100	품절
1-3	9350355	볼트/GB5787-M6X12	4	1,100	품절
1-4	9350356	WATER PUMP DAMPER RUBBER	4	1,100	품절
1-5	9350357	NUT/GB6177-M8	4	1,100	품절
1-6	9350358	FRAME	1	27,500
1-7	9350359	PUMP BODY	1	99,000
1-8	9350360	SUPPORT SEAT	1	22,000
1-9	9350361	PUMP SEAL(2 INCH WATER PUMP)	1	2,750	품절
1-10	9350362	FLAT GASKET/GB97-8X14X1.5	4	1,100
1-11	9350363	볼트/GB5789-M8X38	4	1,100	품절
1-12	9350374	WATER SEAL	1	7,700

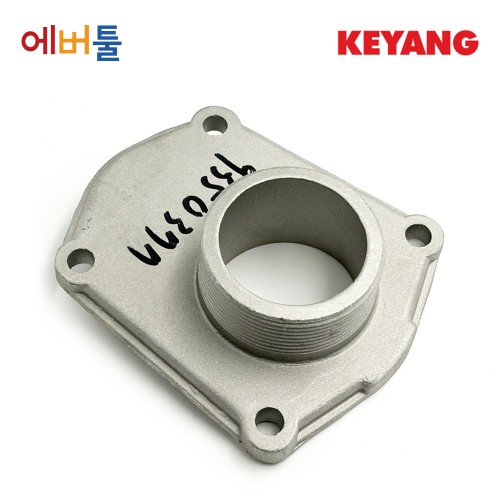

1-13	9350364	OUTPUT FLANGE (2 INCH)	1	5,500	품절
1-14	9350365	OUTPUT FLANGE GASKET(2 INCH)	1	1,100
1-15	9350366	HOOP(2 INCH PUMP)	3	1,100
1-16	9350367	IMPELLER	1	11,000
1-17	9350368	VOLUTE CASE	1	11,000
1-18	9350369	VOLUTE CASE SEAL RING(2	1	1,100
1-19	9350370	PUMP CASE/CASTING ALUMINUM	1	33,000	품절
1-20	9350353	FLAT GASKET/GB97-10X21X1.5	11	1,100	품절
1-21	9350372	볼트/GB5789-M8X25	8	1,100
1-22	9350345	PLUG SCREW WITH SEAL RING	2	1,100
1-23	9350375	PLUG SCREW	2	1,650	품절
1-24	9350376	INSPECT VALVE	1	2,200
1-25	9350377	INFLOW FLANGE	1	11,000
1-26	9350372	볼트/GB5789-M8X25	3	1,100
1-27	9350378	SEAL RING(2 INCH PUMP)	2	1,650
1-28	9350379	INLET OUTLET CONNECTOR	2	7,700	품절
1-29	9350380	INLET OUTLET JOINT	2	5,500
1-30	9350381	FILTER BOTTOM VALVE	1	4,400
2-1	9350253	2.55.07.003200 CLIP TUBE	2	2,200	품절
2-2	9350254	2.55.06.004600 TUBE FUEL	1	1,100
2-3	9350255	JOINT ASSY FUEL TANK	1	1,100
2-4	9350256	CAP COMP FUEL FILLER	1	5,500
2-5	9350257	2.55.05.005205 FILTER FUEL	1	1,100	품절
2-6	9350258	2.55.05.101200 FUEL TANK	1	33,000	품절
2-7	9350259	SPRING THROTTLE RETURN B	1	1,100
2-8	9350260	SPRING THROTTLE RETURN A	1	1,100
2-9	9350261	2.54.04.000200 ARM GOVERNOR	1	1,100	품절
2-10	9350336	2.63.01.00274 NUT FLANGE	5	1,100	품절
2-11	9350337	2.63.01.00387 PIN LOCK	1	1,100	품절
2-12	9350338	SHAFT GOVERNOR ARM	1	1,100	품절
2-13	9350246	2.54.03.002400 ROD GOVERRNOR	1	1,100
2-14	9350247	2.63.01.01756 BOLT FLANGE	9	1,100	품절
2-15	9350248	BOLT QUADRATE HEAD	1	1,100	품절
2-16	9350249	THROTTLE CONTROL ASSY	1	4,400
2-17	9350250	2.63.01.00370 WASHER PAIN	1	1,100	품절

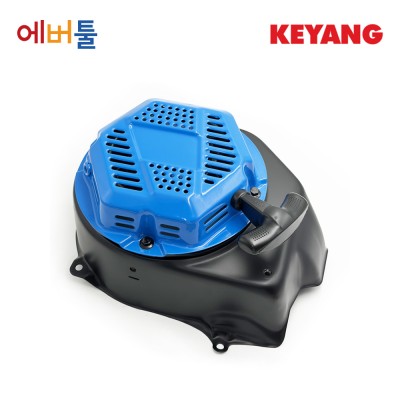

2-18	9350327	2.52.01.127700 RECOIL STARTER	1	22,000
2-19	9350252	2.51.07.000200 OIL STICK	1	1,100	품절
2-20	9350251	2.51.12.004900 CONNECTING ROD	1	5,500
2-21	9350328	2.51.09.000100 PIN PISTON	1	2,200
2-22	9350329	2.51.10.000100 CLIP PISTON PIN	2	1,100
2-23	9350330	2.51.08.000200 PISTON	1	5,500
2-24	9350331	2.51.11.004100 RING SET	1	4,400
2-25	9350332	2.52.06.001700 SHROUD	1	2,200	품절
2-26	9350333	BOLT STUD EXHAUST	2	1,100	품절
2-27	9350334	SWITCH ASSY ENGINE STOP(OIL ALERT)	1	2,200	품절
2-29	9350335	2.63.01.00278 NUT SPECIAL	1	1,100	품절
2-30	9350262	2.52.03.004500 PULLEY STARTER	1	2,200
2-31	9350263	2.52.04.002300 FAN COOLING	1	2,200	품절
2-32	9350282	2.53.01.000100 FLYWHEEL COMP	1	11,000	품절
2-33	9350273	2.52.07.000100 DIVERSION ASSY	1	1,100	품절
2-34	9350274	OIL SEAL2541.256	2	2,200
2-35	9350275	2.63.01.00180 BOLT FLANGE	4	1,100	품절
2-36	9350276	2.51.04.000700 ALART UNIT OIL	1	2,200
2-37	9350277	2.63.01.00178 BOLT FLANGE	1	1,100	품절
2-38	9350278	2.63.01.01754 BOLT DRAIN PLUG	2	1,100	품절
2-39	9350279	2.51.01.001400 CRANK CASE	1	33,000
2-40	9350280	BEARING RADIAL BALL	2	3,300	품절
2-41	9350281	OIL LEVEL SWITCH	1	3,300	품절
2-42	9350293	2.51.02.000100 GEAR GOVERNOR	1	2,200	품절
2-43	9350283	ARM VALVE ROCKER	2	2,200	품절
2-44	9350284	2.50.05.000103 BOLT PIVOT ARM	2	1,100	품절
2-45	9350285	2.50.06.000100 PLATE ASSY	1	1,100	품절
2-46	9350286	2.50.07.000100 ROD PUSH	2	1,100	품절
2-47	9350287	KEY SPECIAL WOODRUFF	1	1,100	품절
2-48	9350288	2.50.12.027100 MUFFLER ASSY	1	8,800	품절
2-49	9350289	2.51.15.001100 CRANKSHAFT COMP	1	19,800	품절
2-50	9350290	GASKET CASE COVER	1	2,200	품절
2-51	9350291	2.51.06.000500 OIL FILLER CAP	1	1,100	품절
2-52	9350264	2.60.03.000100 GASKET MUFFLER	1	1,100	품절
2-53	9350265	2.51.05.004000 COVER	1	9,900	품절
2-54	9350266	2.63.01.00208 BOLT, M8*32	6	1,100	품절
2-55	9350267	2.63.01.00166 BOLT, M6*10	3	1,100	품절
2-56	9350268	2.50.11.015300 AIR CLEANER	1	8,800
2-57	9350269	2.50.04.000100 VALVE EX	1	2,200	품절
2-58	9350270	2.50.08.000200 LEFTER VALVE	2	1,100	품절
2-59	9350271	2.51.16.000300 CAMSHAFT ASSY	1	9,900	품절
2-60	9350292	2.63.01.00404 PIN FLYING BLOCK	2	1,100	품절
2-61	9350272	PIVOT ROCKER ARM	2	1,100	품절
2-62	9350294	NUT PIVOT ADJUSTING	2	1,100	품절
2-63	9350296	2.63.01.00181 BOLT FLANGE 6*25	2	1,100	품절
2-64	9350295	COIL ASSY IGNITION	1	11,000
2-66	9350298	2.63.01.00256 BOLT FLANGE 8*55	4	1,100	품절
2-67	9350299	SPACER COMP AIR CLEANER	1	1,100	품절
2-68	9350300	2.55.01.000601 CHOKE HANDLE	1	1,100	품절
2-69	9350301	2.55.01.026600 CARBURETOR	1	22,000
2-70	9350302	GASKET CABURETOR	1	1,100
2-71	9350303	INSULATOR, CARBURETOR	1	1,100	품절
2-72	9350304	GASKET INSUL ATOR	1	1,100
2-73	9350305	2.63.01.00052 BOLT STUD IN	2	1,100
2-74	9350306	2.63.01.00365 WASHER,φ8	2	1,100	품절
2-75	9350307	2.50.01.007000 COVER COMP HEAD	1	4,400	품절
2-76	9350308	PACKING HEAD COVER	1	1,100	품절
2-77	9350309	2.50.09.001300 RATATOR VALVE	1	1,100
2-78	9350310	2.50.09.000200 SEAL GUIDE	1	1,100	품절
2-79	9350311	RETAINER VALVE SPRING	1	1,100	품절
2-80	9350312	2.50.09.000100 SPRING VALVE	2	1,100	품절
2-81	9350313	2.53.06.000300 PLUG SPARK	1	5,500
2-82	9350314	HEAD COMP CYLINDER	1	13,200	품절
2-83	9350315	2.60.08.006400 GASKET CYLINDER	1	2,200	품절
2-84	9350316	2.50.03.000100 VALVE IN	1	2,200	품절
2-85	9350317	2.63.01.00270 NUT HEX 8MM	2	1,100	품절
2-86	9350318	2.63.01.00182 BOLT, M6*28	1	1,100	품절
2-87	9350319	2.63.01.00175 BOLT, M6*16	2	1,100	품절
2-88	9350320	WASHER DRAIN PLUG	2	1,100	품절
2-89	9350321	2.62.01.000100 WIRE CLIP	1	1,100	품절
2-90	9350322	2.50.10.000100 SEAL GUIDE	1	1,100	품절
2-91	9350323	2.63.01.00023 PING	1	1,100	품절
2-92	9350324	2.62.01.000300 WIRE BOX	1	1,100	품절
2-93	9350325	DECORATION BOARD	1	2,200	품절
2-94	9350326	2.09.06.004900 THROTTLE HANDLE	1	1,100	품절
