보쉬 GWS6-100 분해도 (06013750E0)

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1

7 베어링 슬리브

266898-7

1,100

총 46개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0
이미지 항목번호 부품번호 부품명 소요량 판매가 장바구니 담기

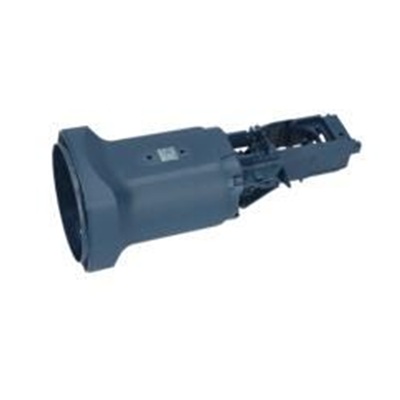

1 1619P09772 Motor Housing 1 8,800

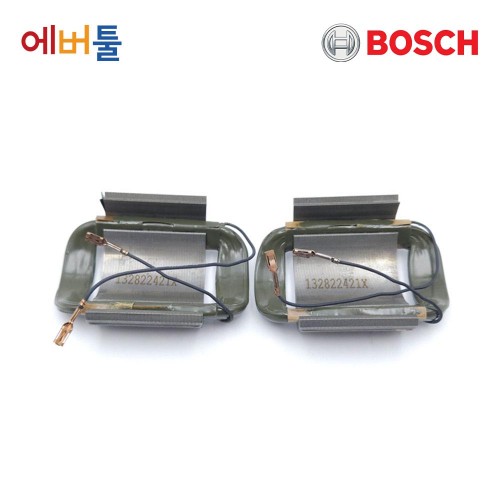

2 1604220328 Field 1 14,190

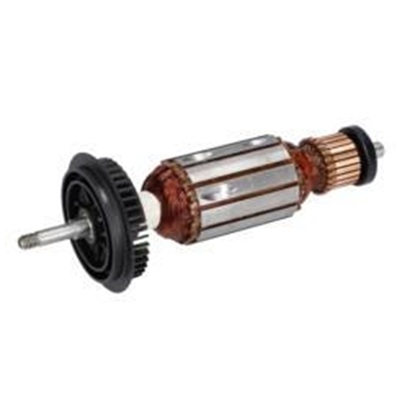

3 1619P01844 Armature 1 9,900

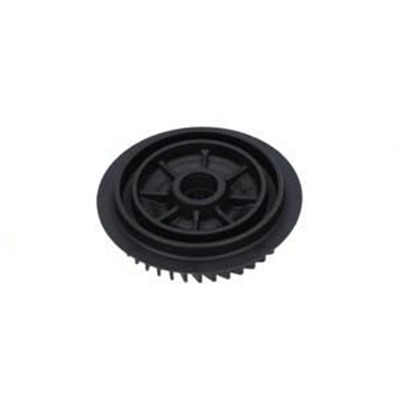

3/50 1606610141 Fan 1 2,860
4 1607200146 Switch 1 6,380

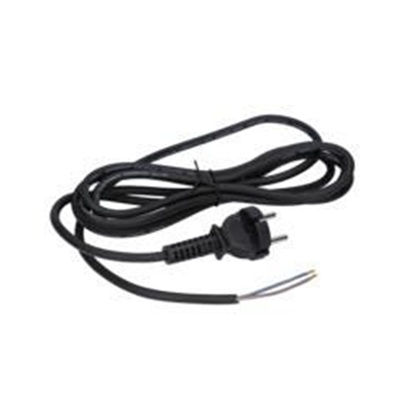

5 1604460312 Power supply cord 1 6,380
6 2600703012 Grommet 1 2,200
7 1601302017 Fastening Clamp 1 1,210

품절
12 1619P07647 Suppression Filter 1 3,960

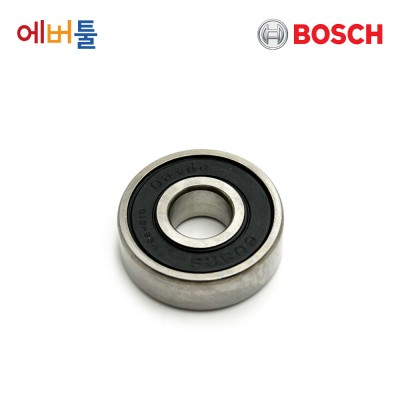

13 1619P00456 Ball Bearing 1 2,200

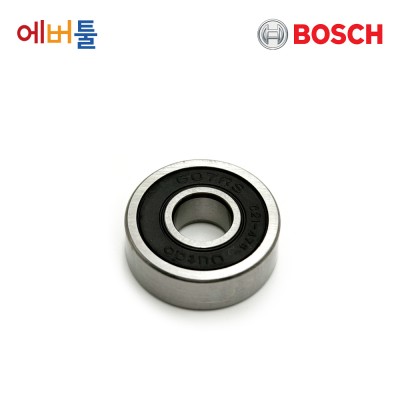

14 1619P00455 Ball Bearing 1 2,530

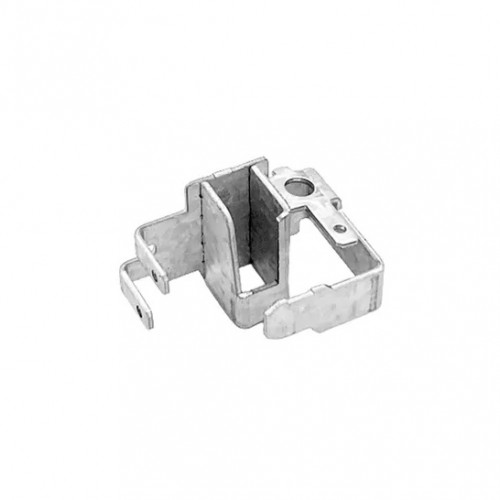

16 1619P01811 Brush Holder 2 2,200
17 1604652013 Spiral Spring 2 1,430
18 1604611031 Compression Spring 1 1,980
22 1602319009 Adjusting Slide 1 2,200

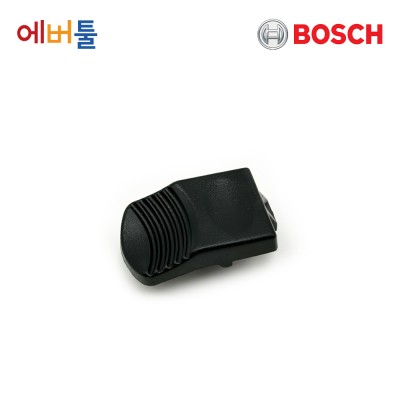

23 1619P02762 Switch Button 1 1,980
25 1605500194 Housing Cover 1 3,080
26 1600502023 Intermediate Ring 1 1,650
27 1600206025 Rubber Ring 1 1,650

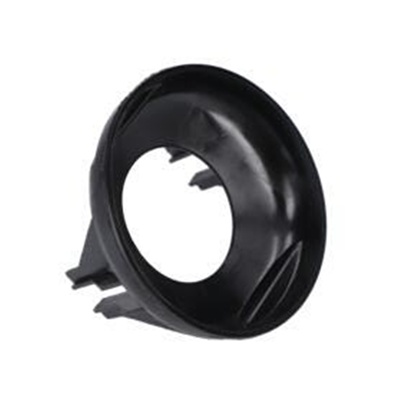

30 1600591024 Air-Deflector Ring 1 2,530
32 1603523111 Grinding Spindle 1 3,960
33 1600210041 O-Ring 1 1,980

품절
35 1600136016 Shim 1 1,980
35 1600136017 Shim 1 1,980
37 1600100033 Cover Disc 1 1,980
38 2609110150 Conversion Gear 1 3,960

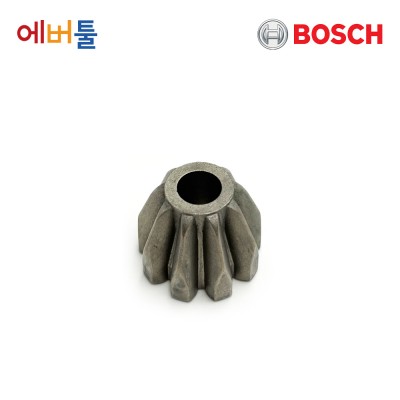

39 2609110149 Pinion 1 2,860
45 2915011007 Hex Nut 1 1,210
47 2609110052 Special Screw 1 1,210
48 1619P00220 Torx Oval-Head Screw 2 1,210
49 1603435068 Thread-forming tap. Screw 4 1,430
50 2910611020 Tapping Screw 1 1,430

품절
80 1619P09390 Cover Disc 1 1,650
132 3602311050 Key Holder 1 1,650

품절
650/10 160202509T Auxiliary Handle 1 2,530

품절
650/20 1619P09976 Round Nut With 2 Holes 1 1,650
650/30 2609110015 Pin-Type Face-Wrench 1 1,980
650/50 1605703115 Clamping-Flange 1 2,530

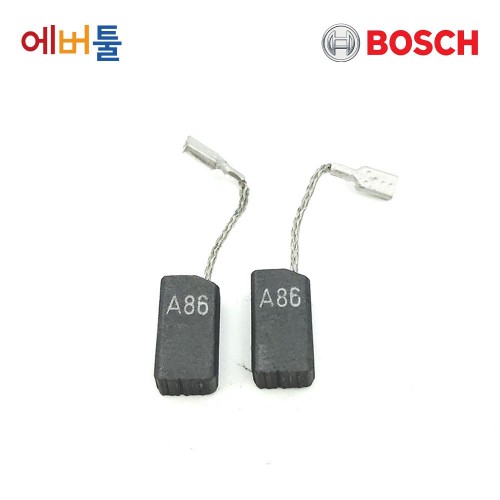

810 1607014145 Carbon-Brush Set 1 6,380

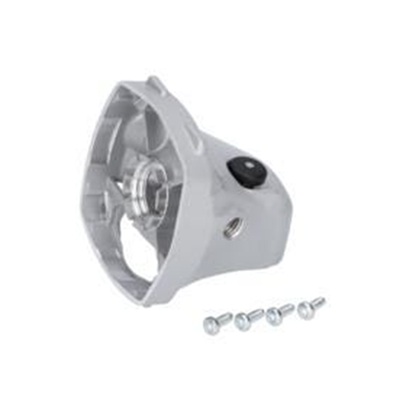

821 1605806466 Gear Housing 1 11,220
828 1619P02708 Bearing Flange 1 6,380
829 1600591023 Air-Deflector Ring 1 1,980

품절
840 1607000298 Push-Button 1 2,860
841 1600910018 Needle bearing 1 3,080
850 1619P01321 Protective Cover 1 6,380
857 2910641081 Oval-Head Screw 2 1,210

품절

목록에 없는 부품은 단종되었거나 제조사에서 공급하지 않는 부품입니다.
