보쉬 GWS750-125 분해도 (3601C940B2)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 48개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	1619P10958	Motor Housing	1	3,080
2	160422059E	Field	1	12,430

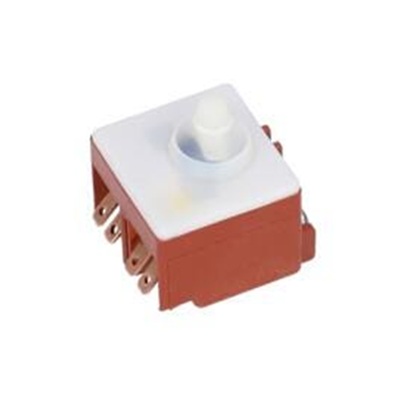

4	160720031V	Switch	1	6,380
5	1604460312	Power supply cord	1	6,380
6	2600703012	Grommet	1	2,200
7	1601302017	Fastening Clamp	1	1,210	품절
12	1619P15039	Suppression Filter	1	1,980	품절
14	1619P13103	Groove ball bearing	1	2,200
16	1619P01811	Brush Holder	2	2,200
17	1604652013	Spiral Spring	2	1,430
18	1619P11487	Compression Spring	1	1,210
22	1619P10967	Adjusting Slide	1	1,210
23	1619P13541	Switch Button	1	1,210
25	1619P10963	Housing Cover	1	2,530
26	1600502023	Intermediate Ring	1	1,650
27	1600206025	Rubber Ring	1	1,650
28/1	1619P07440	Ball Bearing	1	3,960
28/3	2916660013	Retaining clip	1	1,650
29	1619P10970	Air-Deflector Ring	1	1,210
30	1619P14139	Air Distributor	1	1,430
32	1619P06419	Grinding Spindle	1	6,930
33	1619P02820	O-Ring	1	1,430
35	1619P02821	Shim	1	1,210
35	1619P02822	Shim	1	1,430
36	1619P00987	Washer	1	1,210
37	1600100033	Cover Disc	1	1,980
41	1600200029	Plain bearing	1	2,860
45	2915011007	Hex Nut	1	1,210
47	2609110052	Special Screw	1	1,210
48	1619P00220	Torx Oval-Head Screw	2	1,210
50	1619P00105	Torx Oval-Head Screw	1	1,430	품절
55	1619P01066	Torx Oval-Head Screw	4	1,210
80	1619P09390	Cover Disc	1	1,650
650/1	160202509T	Auxiliary Handle	1	2,530	품절
650/2	1603345043	Round Nut	1	5,500
650/3	1619P08927	Pin-Type Face-Wrench	1	2,860

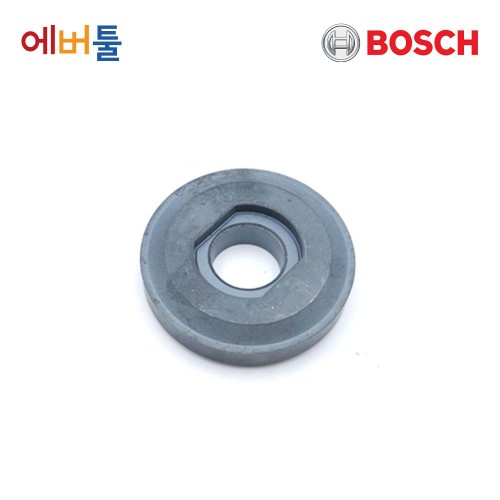

650/5	2605703014	Clamping Flange	1	4,840
650/52	1600210039	O-Ring	1	1,650
650/51	1600A00M3A	Clamping-Flange	1	4,840
651	1600A00XU7	Protective Cover	1	5,500
810	1619P11715	Carbon-Brush Set	1	3,740

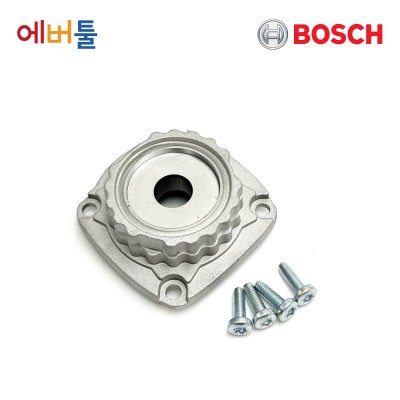

828	1619P07451	Bearing Flange	1	9,900
831	1619P12186	Gear Housing	1	9,900
839	1619PS0661	Gear	1	6,380	품절
840	1619P12188	Push Button	1	1,430
858	2910641081	Oval-Head Screw	2	1,210	품절
894	1615430020	Grease Tube	1	14,190
895	1605430003	Grease Tube	1	26,840
