보쉬 GWS9-100P 분해도 (3601C965B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 47개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	1619P10961	Motor Housing	1	3,740	품절

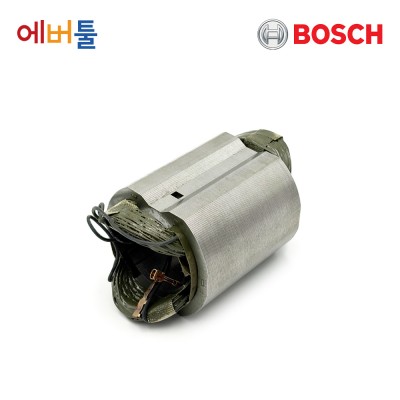

2	160422059G	Field	1	18,480
3	1604010BN1	Armature	1	18,480
6	2600703012	Grommet	1	2,200
7	1601302017	Fastening Clamp	1	1,210	품절
13	1619P08829	Groove ball bearing	1	3,960
14	1619P13103	Groove ball bearing	1	2,200
16	1619P01811	Brush Holder	2	2,200
17	1604652013	Spiral Spring	2	1,430
25	1619P14667	Housing Cover	1	3,080	품절
26	1600502023	Intermediate Ring	1	1,650
27	1600206025	Rubber Ring	1	1,650
28/1	1619P07440	Ball Bearing	1	3,960
28/3	2916660013	Retaining clip	1	1,650
29	1619P10970	Air-Deflector Ring	1	1,210
30	1619P14139	Air Distributor	1	1,430
32	1603523111	Grinding Spindle	1	3,960
33	1619P02820	O-Ring	1	1,430
35	1619P02821	Shim	1	1,210
35	1619P02822	Shim	1	1,430
36	1619P00987	Washer	1	1,210
37	1619P14544	Rotary shaft lip seal	1	1,210	품절
41	1600910018	Needle bearing	1	3,080
45	2915011007	Hex Nut	1	1,210
47	2609110052	Special Screw	1	1,210
48	1619P00220	Torx Oval-Head Screw	2	1,210
49	1603435068	Thread-forming tap. Screw	4	1,430
50	1619P00105	Torx Oval-Head Screw	1	1,430	품절
54	2603490025	Torx Oval-Head Screw	1	1,210
55	1619P01066	Torx Oval-Head Screw	4	1,210
62	1600210038	O-Ring	1	1,980	품절
80	1619P09390	Cover Disc	1	1,650
318	1619P14813	Switch-Pawl	1	2,860
321	1619P10979	Pin	1	1,210	품절
650/1	1619P10681	Auxiliary Handle	1	2,530
650/2	1619P09976	Round Nut With 2 Holes	1	1,650
650/3	1619P08928	Pin-Type Face-Wrench	1	2,530
650/5	1605703115	Clamping-Flange	1	2,530
651	1619P14537	Protective Cover	1	6,380
810	1619P11715	Carbon-Brush Set	1	3,740
828	1619P11094	Bearing Flange	1	9,900
838	1619P14559	Set Of Gears	1	8,800	품절
840	1619P12188	Push Button	1	1,430
843	1619P11076	Catch Lever	1	12,430
858	2910641081	Oval-Head Screw	2	1,210	품절
894	1615430020	Grease Tube	1	14,190
895	1605430003	Grease Tube	1	26,840
