보쉬 GWX9-125S 분해도 (3601GB20B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 52개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

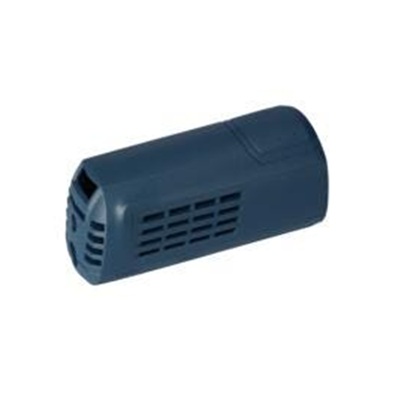

1	1619P10959	Motor Housing	1	3,080
2	160422059G	Field	1	18,480
4	160720031S	Switch	1	3,960
5	1604460312	Power supply cord	1	6,380
6	2600703012	Grommet	1	2,200
7	1601302017	Fastening Clamp	1	1,210	품절
9	1619P14768	Manufacturer's nameplate	1	1,980	품절
13	1619P08829	Groove ball bearing	1	3,960
14	1619P13103	Groove ball bearing	1	2,200
16	1619P01811	Brush Holder	2	2,200
17	1604652013	Spiral Spring	2	1,430
18	1619P11487	Compression Spring	1	1,210
22	1619P10968	Adjusting Slide	1	1,210
23	1619P10969	Switch Button	1	1,210
25	1619P13557	Housing Cover	1	3,080	품절
26	1600502023	Intermediate Ring	1	1,650
27	1600206025	Rubber Ring	1	1,650

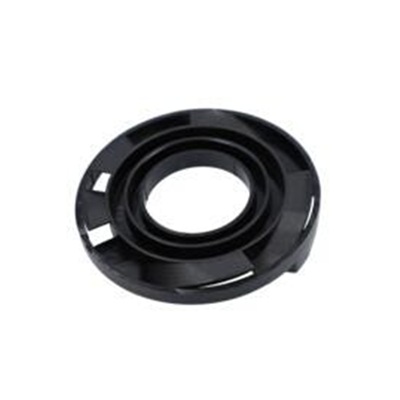

29	1619P10970	Air-Deflector Ring	1	1,210
30	1619P14769	Air Distributor	1	1,430
33	1600210035	O-Ring	1	1,430
35	1600136013	Shim	1	1,980
35	1600136014	Shim	1	1,980
35	1600136015	Shim	1	1,980
36	1619P00987	Washer	1	1,210
37	1600290016	Rotary shaft lip seal	1	1,980	품절
40	1600119011	Retaining clip	1	1,650
41	1600A012V6	Plain bearing	1	1,210	품절
45	2915011007	Hex Nut	1	1,210
47	2609110052	Special Screw	1	1,210
48	1619P00220	Torx Oval-Head Screw	2	1,210
49	160343508X	Thread-forming tap. Screw	4	1,210
50	1619P00105	Torx Oval-Head Screw	1	1,430	품절
51	160723358M	Speed governor	1	21,450
54	2603490025	Torx Oval-Head Screw	1	1,210
55	1619P01066	Torx Oval-Head Screw	3	1,210
56	1600A021AR	Braking Element	1	1,210	품절
101	1600A012V1	Lever	1	1,430	품절
102	1600A012V3	Torsion Spring	1	1,210	품절
103	1600A012V4	Straight Pin	1	1,210	품절
108	1619P02866	Shrinkable Tube	4	1,210	품절
131	3600210109	O-Ring	1	1,650
650/1	16020250A0	Auxiliary Handle	1	6,930	품절
651	1600A025XR	Protective Cover	1	6,380
810	1619P11715	Carbon-Brush Set	1	3,740
828	1619P15214	Parts Set	1	49,720
831	1619P15213	Gear Housing	1	26,840	품절
838	1619P15458	Set Of Gears	1	12,430	품절
843	1607000742	Catch Lever	1	4,840
858	2910641081	Oval-Head Screw	1	1,210	품절
891	1619P10681	Auxiliary Handle	1	2,530
894	1615430020	Grease Tube	1	14,190
895	1605430003	Grease Tube	1	26,840
