보쉬 GST150BCE 분해도 (3601E130B1)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 55개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

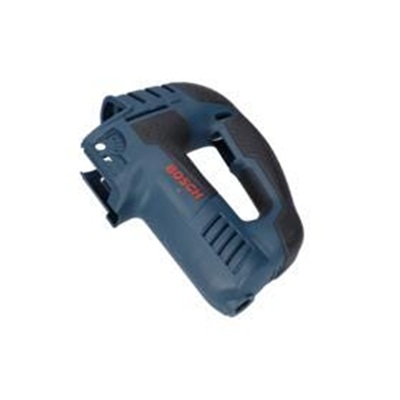

1	2605105128	Housing Section	1	26,840
2	2604220584	Field	1	16,390
3/9	2606610089	Fan	1	3,080	품절
4	2607200669	Switch	1	12,430
6	2600703017	Grommet	1	1,980
7	2601035004	Cable Clip	1	1,650
14	2600905112	Groove ball bearing	1	8,030	품절

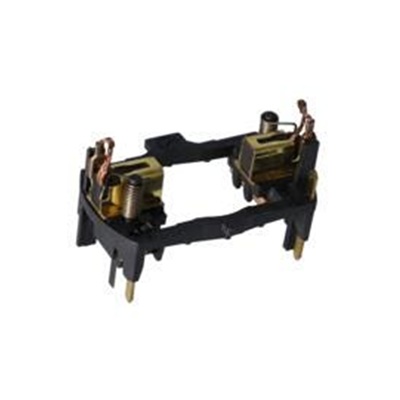

16	2605807109	Brush Plate	1	16,390	품절
17	1603100036	Rubber Buffer	1	1,430	품절
18	2916660008	Spring retaining ring	1	1,650
19	2603490022	Screw	2	1,210
26	2600100040	Shim	2	1,430
27	2916080908	Locking washer	1	1,210	품절
31	2600101119	Shim	1	1,980	품절
32	2600913040	Needle-Roller Assembly	1	3,740

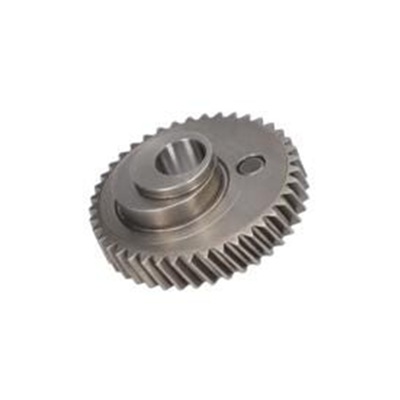

33	2606320099	Eccentric Cog Wheel	1	16,390
35	2601923015	Fork Lever	1	2,200	품절
36	2601098117	Counterweight	1	6,930	품절
37	2600101047	Shim	1	1,430	품절
38	2916080909	Locking washer	1	1,210
38	2916640905	Spring retaining ring	1	1,430
41	2600917900	Needle bearing	1	5,500
51	2603105131	Bearing bolt	1	1,650	품절
53	2603124156	Control Shaft	1	2,860	품절
56	2602026158	Rotary Knob	1	1,210
64	2601322035	Straight Pin	1	1,980	품절
80/2	2601099198	Work Board	1	3,080	품절
80/4	1613435023	Thread-forming tap. Screw	4	1,210	품절
84	2610364015	Hexagon Socket Screw Key	1	2,530
85	2601030019	Profile Beading	1	1,980
87	2605500203	Baffle	1	2,200	품절
88	2600040004	Fixing plate	1	2,200
90	2910141201	Hex Socket Head Cap Screw M6x20-8.8	1	1,980	품절
95	2603101065	Protecting Cover	1	1,430	품절
97	2604448343	Earth Conductor	1	1,980	품절
98	2604448335	Connecting Cable	1	1,650	품절
99	2603410051	Thread-forming tap. Screw	4	1,210
105	2604690056	Torsion Spring	1	1,650	품절
113	1607233560	Speed governor	1	33,110
115	2604448336	Connecting Cable	1	1,650	품절
117	2603490023	Torx Oval-Head Screw	9	1,210
118	1600A02B9X	Sponge	1	1,430	품절
654	2601099183	Pad	1	3,960	품절
655	2601016093	Splintering Protector	1	2,860	품절
656	2605730055	Suction Nozzle	1	3,080
657	2605510293	Covering hood	1	1,980	품절
801	2602026908	Cap-Handle	1	3,080	품절
803	2604011394	Armature	1	36,630
810	2604321941	Carbon-Brush Set	1	6,380

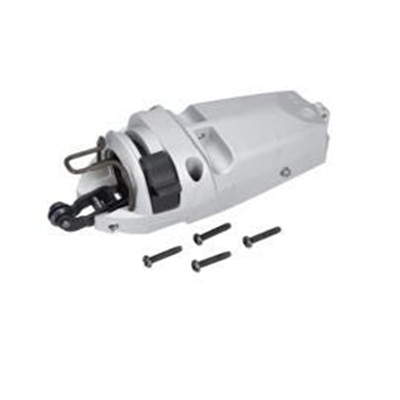

823	2605806881	Gear Housing	1	36,630
845	2601321908	Roller Lever	1	8,030
854	2602026909	Rotary Knob	1	1,980
860	2605808934	Gear Cover	1	102,190
866	1600A00HG2	Lifting Rod	1	40,480
880	2601016905	Base Plate	1	21,450	품절
