보쉬 GST160BCE 분해도 (3601E180B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 59개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	2605105206	Housing Section	1	30,140	품절

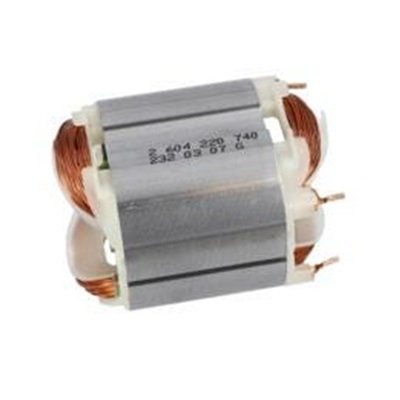

2	2604220740	Field	1	30,140

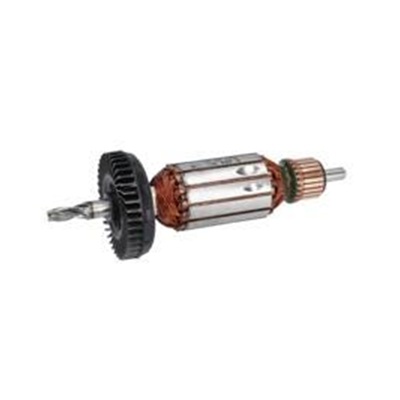

3	2604011420	Armature	1	44,880
3/9	2606610089	Fan	1	3,080	품절
4	2607200669	Switch	1	12,430
5	1607000386	Power supply cord	1	14,190
6	2600707078	Grommet	1	2,200
7	2601035004	Cable Clip	1	1,650
9	2601113156	Manufacturer's nameplate	1	1,980	품절
14	2600905112	Groove ball bearing	1	8,030	품절
16	2605807137	Brush Plate	1	16,390
18	2916660008	Spring retaining ring	1	1,650
19	2603490022	Screw	2	1,210
26	2600100040	Shim	2	1,430
27	2916080908	Locking washer	2	1,210	품절
31	2600101124	Shim	1	1,210	품절
32	2600913040	Needle-Roller Assembly	1	3,740
33	2606320107	Eccentric Cog Wheel	1	14,190
35	2601923015	Fork Lever	1	2,200	품절
36	2601098120	Counterweight	1	12,430	품절
37	2600101047	Shim	1	1,430	품절
38	2916640905	Spring retaining ring	1	1,430
40	2600101130	Shim washer	1	1,430
41	2600917900	Needle bearing	1	5,500
51	2603105131	Bearing bolt	1	1,650	품절
53	2603124157	Control Shaft	1	3,080	품절
56	2602026170	Rotary Knob	1	1,430	품절
61	2604610151	Compression Spring	2	1,430
64	2601322045	Straight Pin	1	1,430	품절
78	2600206031	Damping Element	1	1,980
87	2605500206	Air-Deflector Ring	1	6,380
90	2910131205	Hex Socket Head Cap Screw M6x30-8.8	1	1,650
95	2603101060	Protecting Cover	1	2,860	품절
97	2604448270	Earth Conductor	1	1,430	품절
98	2604448365	Connecting Cable	1	1,650	품절
99	2603410051	Thread-forming tap. Screw	4	1,210
105	2604690060	Torsion Spring	1	1,210	품절
114	1607233384	EL luma module	1	24,200
115	2600030025	Headlamp Switch	1	1,980
117	2603490023	Torx Oval-Head Screw	8	1,210
118	2603490027	Torx Oval-Head Screw	2	1,210
656/4	2601016093	Splintering Protector	1	2,860	품절
660	2605730066	Suction Socket	1	3,080	품절
661	2605510296	Covering hood	1	2,530	품절
801	2607990070	Ejection Lever	1	6,930
808	160111A58S	Nameplate	1	1,980	품절
810	2604320918	Carbon-Brush Set	1	8,030
813	16072335AM	Speed governor	1	36,630
823	2605806868	Gear Housing	1	73,480
828	2602098024	Tensioning Lever	1	3,960
845	2601321911	Roller Lever	1	9,900
852	2601098121	Work Board	1	12,430
854	2602026909	Rotary Knob	1	1,980
860	2605808943	Gear Cover	1	133,870
866	1600A00H4H	Lifting Rod	1	82,610
880	2601099256	Base Plate	1	44,880
880/85	2602317067	Clamping Piece	1	2,860	품절
881	2601099900	Work Board	1	9,900	품절
884	2600590018	Ratchet Cap	1	2,200	품절
