총 45개
이미지 또는 부품명 클릭시 상세정보 조회
0
/
0
| 이미지 | 항목번호 | 부품번호 | 부품명 | 소요량 | 판매가 | 장바구니 담기 |
|---|
|

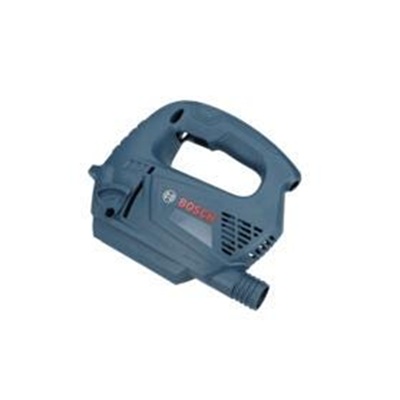

1 | 1619P14032 | Housing Section | 1 | 14,190 | |
|

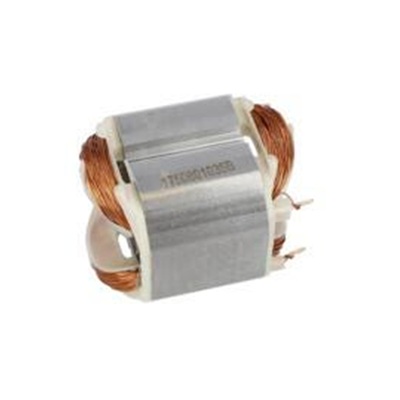

2 | 1619P13750 | Field | 1 | 11,220 | |
|
3 | 1619P13749 | Armature | 1 | 18,480 | |
|

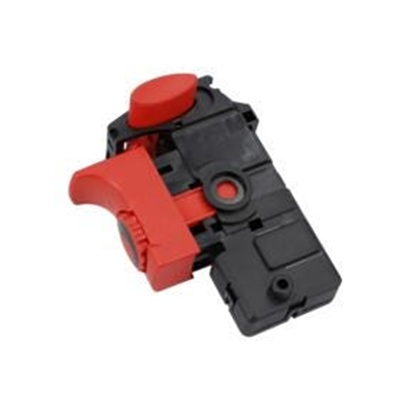

4 | 1607200357 | Switch | 1 | 11,220 | |
|

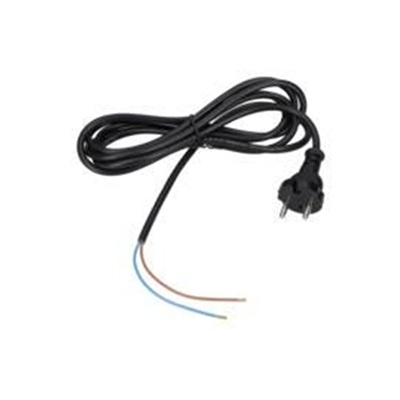

5 | 1619P11766 | Power supply cord | 1 | 11,220 |
품절 |
|
6 | 1619P14642 | Grommet | 1 | 1,430 | |
|
7 | 2601035001 | Cable Clip | 1 | 1,430 | |
|
9 | 1619P14036 | Manufacturer's nameplate | 1 | 1,980 |
품절 |
|
12 | 1619P14037 | Suppression Filter | 1 | 4,840 |
품절 |
|

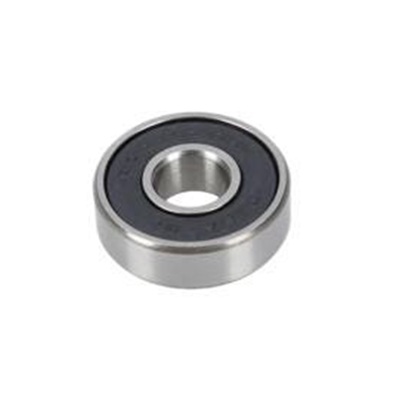

13 | 2600905110 | Groove ball bearing | 2 | 3,740 |
품절 |
|

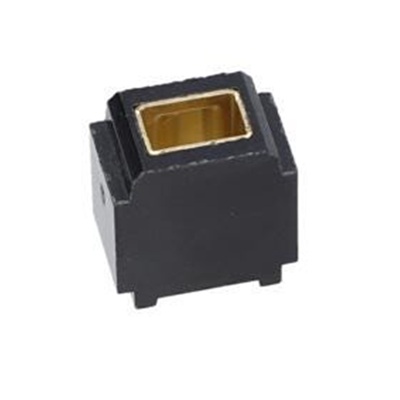

16 | 1619X02735 | Brush Holder | 2 | 1,650 | |
|
19 | 2603490022 | Screw | 11 | 1,210 | |
|
22 | 1619P14682 | Shim | 1 | 1,430 | |
|
23 | 1619P14055 | Insert | 2 | 1,650 | |
|
24 | 2603120019 | Detent Pin | 1 | 1,430 | |
|
27 | 1619X07569 | Spring retaining ring | 1 | 1,210 | |
|
28 | 1619P01396 | Shim | 1 | 1,210 | |
|
29 | 1619P14042 | Counterweight | 1 | 6,380 | |
|
30 | 1619P14636 | Coiled Spring | 1 | 1,430 | |
|

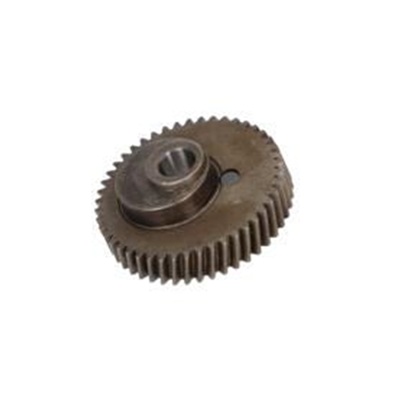

31 | 1619P14043 | Eccentric Cog Wheel | 1 | 9,900 | |
|
32 | 2600914022 | Needle bearing | 1 | 3,960 | |
|
33 | 2609110610 | Cyl Head tapping screw | 2 | 1,210 | |
|
34 | 2603201020 | Bearing bolt | 4 | 1,210 | |
|
35 | 1619P14052 | Fork Lever | 1 | 2,200 | |
|
36 | 1619X04574 | Seal | 1 | 1,650 | |
|
37 | 1619P14053 | Change-Over Switch | 1 | 1,650 |
품절 |
|
38 | 1619P07156 | Control Shaft | 1 | 1,430 | |
|
39 | 1619X01409 | Holding Pin | 2 | 1,210 |
품절 |
|
40 | 1619P14045 | Lifting Rod | 1 | 11,220 | |
|
41 | 1619P14056 | Profile Beading | 1 | 1,430 | |
|
42 | 1619P14049 | Plain bearing | 1 | 2,530 | |
|
43 | 2600590006 | Ratchet Cap | 1 | 1,430 | |
|
44 | 1619P07163 | Fixing plate | 1 | 1,210 | |
|
45 | 1619X04887 | Hex Socket Head Cap Screw | 1 | 1,650 |
품절 |
|
46 | 1619P14050 | Base Plate | 1 | 4,840 | |
|
47 | 1619P16757 | Roller Lever | 1 | 6,930 | |
|
48 | 1619P14677 | Needle-Roller Assembly | 1 | 2,530 | |
|
49 | 1619P14058 | Protecting Cover | 1 | 1,980 | |
|
51 | 1619P14277 | Cable | 2 | 2,200 | |
|
52 | 1619P07159 | Bearing bolt | 1 | 1,210 | |
|
653 | 2610364015 | Hexagon Socket Screw Key | 1 | 2,530 | |
|
656 | 1619P14054 | Covering hood | 1 | 1,980 | |
|
810 | 1619P13476 | Carbon-Brush Set | 1 | 2,530 | |
|
825 | 1619P14685 | Bracket | 1 | 8,030 | |
|
895 | 3605430003 | Grease Tube | 1 | 21,450 |
목록에 없는 부품은 단종되었거나 제조사에서 공급하지 않는 부품입니다.
