보쉬 GST75BE 분해도 (3601E8F0B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 48개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

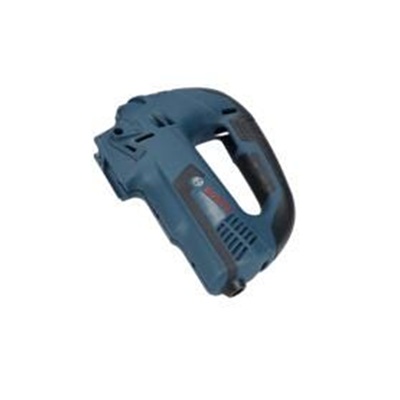

1	1619P07126	Housing Section	1	18,480
3/6	2606610123	Fan	1	1,980	품절
4	2607200669	Switch	1	12,430
5	1604460390	Power supply cord	1	6,930	품절
6	2600703028	Grommet	1	1,430
7	2601035001	Cable Clip	1	1,430
14	2600905110	Groove ball bearing	1	3,740	품절
19	2603490022	Screw	11	1,210
22	1619P07152	Torsion Spring	1	1,210
23	1619P07128	Protecting Cover	1	1,430	품절
24	1619P07151	Lever Switch	1	2,200
29	2600914022	Needle bearing	1	3,960
30	1619P07576	Shim	1	1,650
32	2600101077	Shim	1	1,430
33	1619P07137	Fork Lever	1	2,860
36	2600100588	Shim	3	1,430
37	1619P07133	Counterweight	1	6,930
39	2916640905	Spring retaining ring	1	1,430
40	1619P07147	Lifting Rod	1	33,110
41	1619P08903	Plain bearing	1	1,650
42	1619P11327	Coiled Spring	1	1,210
43	1619P07139	Needle Roller	1	1,650
44	1619P07143	Bearing bolt	1	1,210	품절

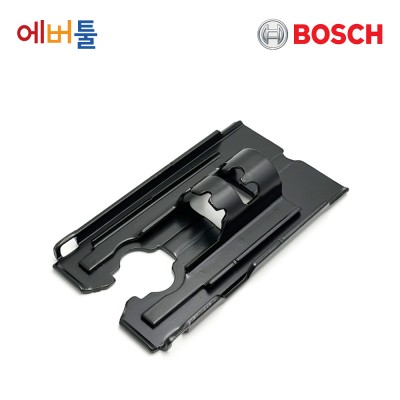

45	1619P07162	Base Plate	1	6,930
46	1619P07138	Bearing bolt	1	1,980
47	2601030019	Profile Beading	1	1,980
48	1619P07163	Fixing plate	1	1,210
49	2916640001	Spring retaining ring	2	1,210
57	1619P02848	Torx Oval-Head Screw	1	1,430
58	1619P13426	Roller Lever	1	4,840
59	1619P07159	Bearing bolt	1	1,210
65	2910141197	Hex Socket Head Cap Screw M6x16-8.8	1	1,210
67	1619P07158	Switch Slide	1	2,200
72	2603435015	Cross Recessed-Head Screw	2	1,650

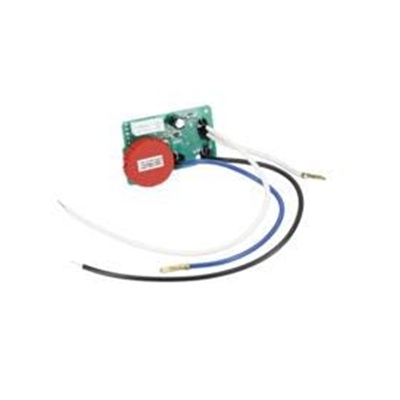

80	1619P16839	Speed governor	1	26,840	품절
652	2610364015	Hexagon Socket Screw Key	1	2,530
653	2601016065	Splintering Protector	1	3,080
654	1619P07167	Suction Nozzle	1	3,960
656	1619P07166	Covering hood	1	1,980	품절

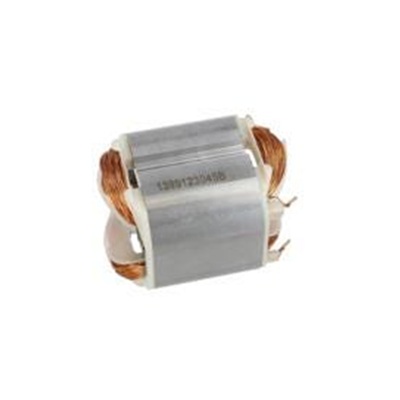

802	1619P09155	Field	1	12,430	품절
803	1619P09157	Armature	1	30,140

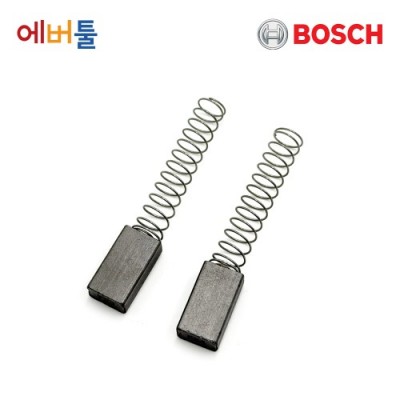

810	2604321925	Carbon-Brush Set	1	5,500

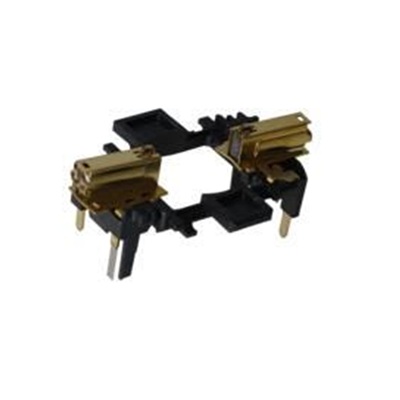

816	2609001621	Brush Plate	1	8,800

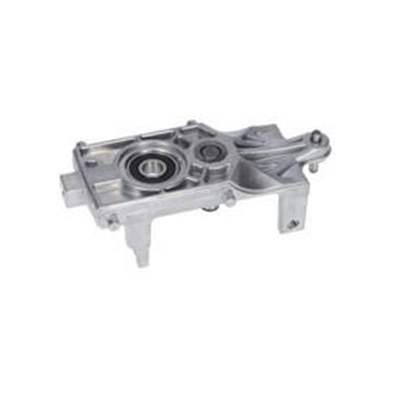

826	1619P08888	Bearing Bracket	1	14,190
827	1619P08889	Eccentric Cog Wheel	1	14,190
853	1619P09053	Earth Conductor	1	1,650	품절
862	1619P08890	Change-Over Switch	1	2,530
895	3605430003	Grease Tube	1	21,450
