보쉬 GBH18V-21 분해도 (3611J111B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 70개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

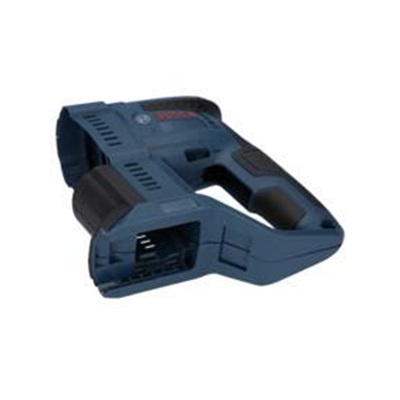

1	1619P15614	Motor Housing	1	16,390
2	1619P15329	Stator	1	18,480
3	1619P15328	Rotor	1	24,200

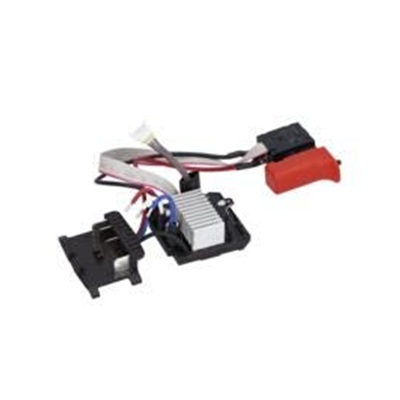

4	1600A020T1	Electronic Module	1	60,610
5	2604690055	Compression Spring	1	1,210	품절
6	1619P13744	Lens	1	1,650
16	2603490022	Screw	1	1,210
17	1610290108	O-Ring	1	1,430	품절
19	1610210184	O-Ring	1	1,210	품절
20	1612026151	Clamp Handle	1	9,900
20/2	1614690009	Driver Pin	1	2,530
20/3	1612026035	Switch Button	1	1,430
20/4	1610210046	O-Ring	1	1,650
20/5	1614611006	Compression Spring	1	2,530
22	1619PS1115	Gear Sleeve	1	1,980	품절
26	1618700083	Hammer Piston	1	6,380
27	1618710085	Striker	1	6,380
28	1613124084	Striker Pin	1	2,860
29	1613100034	Piston Pin	1	2,200
31	1619P09816	Retaining ring	1	1,210
32	1610508051	Rubber Bushing	1	2,860
33	1615820103	Switching Element	1	1,980
34	1619P00829	Retaining ring	1	1,210
36	1610551008	Holding Plate	1	1,430	품절
37	1610100016	Guide Disc	2	1,430
38	1616317084	Cylindrical Gear	1	12,430
39	1614601055	Retaining ring	2	1,210
40	1613100032	Straight Pin	2	1,210	품절
41	1610102072	Ratchet Disc	1	3,740
44	1610102092	Friction Washer	1	1,210
45	1611016003	Holding Plate	1	1,650
46	1614630003	Compression Spring	1	1,650
47	1610202031	Plain bearing	1	3,740	품절
49	1615820104	Switching Element	1	1,980
50	1619P11562	Guide Bushing	1	6,380	품절
51	1610021004	Shift Plate	1	1,210
52	1610021006	Shift Plate	1	1,210
53	1610021005	Shift Plate	1	1,210
54	1613023005	Guide Rod	1	1,430
55	1610508052	Protective Cap	1	1,430
60	1614601077	Spring retaining ring	1	1,430
63	1903230013	Ball	1	1,650
65	1610210244	O-Ring	1	1,650	품절
67	1619P16119	Groove ball bearing	1	3,740	품절
68	1600100037	Plain Washer	1	1,210	품절
69	1619P13747	Change-Over Switch	1	1,650
71	2603490023	Torx Oval-Head Screw	8	1,210
72	1619P09645	Torx Oval-Head Screw	4	1,210	품절
75	1614643025	Compression Spring	1	1,210
76	1614643023	Compression Spring	1	1,210
77	1610283048	Shaft Seal	1	3,740	품절
211	1619P09815	Hammer Pipe	1	24,200	품절
651	1613001009	Depth-Gauge	1	2,530
653	2607337085	Battery Pack	1	188,650

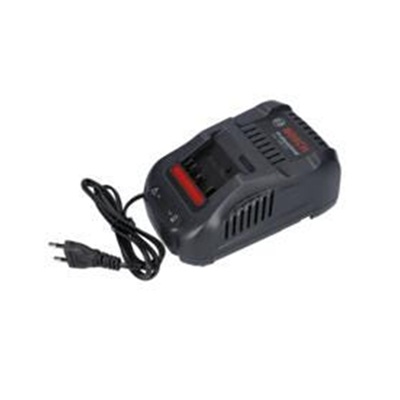

654	2607225933	Charger	1	102,190
691895	1619P14336	Latch	2	3,080	품절
807	1619P15676	Intermediate housing	1	2,860
808	1619P16110	Label	1	5,500
818	1619P15677	Intermediate Flange	1	16,390
821	1619P09617	Hammer Pipe	1	30,140
822	160202508X	Auxiliary Handle	1	12,430	품절
822120	160202507H	Auxiliary Handle	1	6,930
822124	1611316021	Clamping Band	1	2,200
822125	1613490002	T-Head Bolt	1	2,860
822802	1617000475	Support clamp	1	6,380
824	16170006BC	Jack Shaft	1	24,200

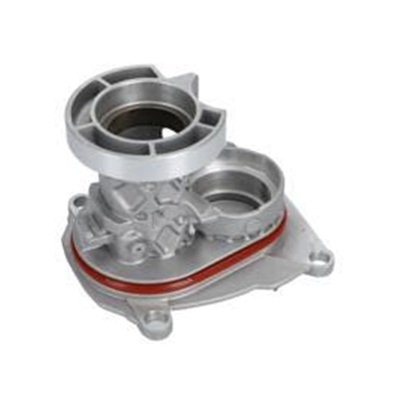

843	1619P15678	Gear Housing	1	24,200
856	16170006D3	Protection Sleeve	1	6,930
892	1615430020	Grease Tube	1	14,190
893	1615430001	Grease Tube	1	14,190
