보쉬 GBH18V-22 분해도 (3611J24000)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 60개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	16051082R3	Motor Housing	1	12,430
2	1600A0299X	Stator	1	33,110
3	1600A0299Y	Rotor	1	33,110
4	1619P18209	Electronics Module	1	73,480
5	2604690055	Compression Spring	1	1,210	품절
6	1600A026NJ	Lens	1	1,430
17	1619P17872	Sealing Ring	1	1,650	품절
18	1619PS1037	Intermediate Flange	1	16,390	품절
19	1610210208	O-Ring	1	1,430
20	1612026151	Clamp Handle	1	9,900
20/2	1614690009	Driver Pin	1	2,530
20/3	1612026035	Switch Button	1	1,430
20/4	1610210046	O-Ring	1	1,650
20/5	1614611006	Compression Spring	1	2,530
21	161859713C	Toolholder	1	21,450
26	1619P17855	Hammer Piston	1	12,430
26/65	1610210186	O-Ring	1	1,650
43	16058066B4	Gear Housing	1	14,190
51	1610021004	Shift Plate	1	1,210
52	1610021006	Shift Plate	1	1,210
53	1600A02195	Shift Plate	1	1,430
54	1613023005	Guide Rod	1	1,430
55	1610508052	Protective Cap	1	1,430
56	1610499060	Protection Sleeve	1	1,650
57	1610102025	Friction Washer	1	1,650
58	1619P16959	Support	1	1,980
59	1610102045	Friction Washer	1	1,210
60	1614601077	Spring retaining ring	1	1,430
61	1610551005	Holding Plate	1	1,980
62	1619P01799	Conical helical spring	1	1,210
63	1903230013	Ball	1	1,650
67	1600A00798	Guide Piece	1	6,380
68	1600A001CL	Bellows	1	3,080
69	1600A027G6	Switch Slide	1	1,210
70	160343509H	Torx Oval-Head Screw	1	1,650
71	2603490023	Torx Oval-Head Screw	8	1,210
72	1619P09645	Torx Oval-Head Screw	4	1,210	품절
74	1619P00220	Torx Oval-Head Screw	1	1,210
75	1614643025	Compression Spring	1	1,210
76	1614643023	Compression Spring	1	1,210
79	1613435023	Thread-forming tap. Screw	2	1,210	품절
80	1619P01380	Screw	4	1,210
120	1619P16971	Auxiliary Handle	1	6,380	품절
120120	1619P20196	Auxiliary Handle	1	2,200
120121	1617000475	Support clamp	1	6,380
120122	1613231010	Push-Button	1	1,430
120123	2604610028	Compression Spring	1	1,430	품절
120124	1611316021	Clamping Band	1	2,200
120125	1613490002	T-Head Bolt	1	2,860
651	1613001009	Depth-Gauge	1	2,530

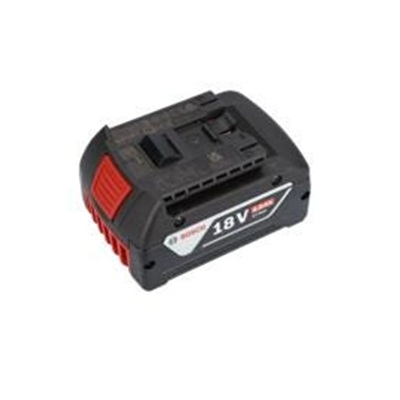

653	1617S020T1	Battery Pack	1	60,610	품절
653	1617S020T2	Battery Pack	1	82,610	품절

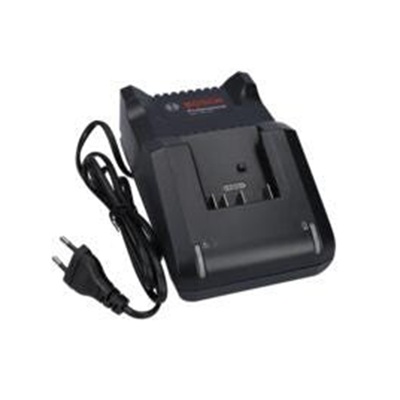

654	2607226251	Fast Charger	1	60,610	품절
691	1619P17425	Latch	2	2,860

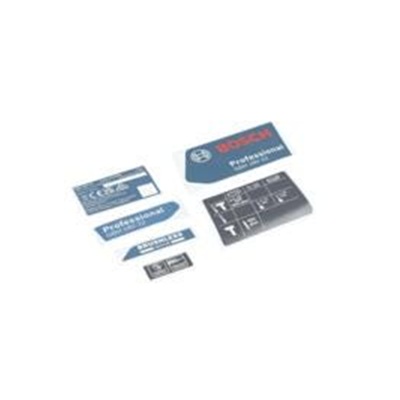

808	1619P17864	Label	1	4,840	품절
824	1619PS1035	Jack Shaft	1	14,190
856	16170006D3	Protection Sleeve	1	6,930
892	1615430001	Grease Tube	1	14,190
894	1615430020	Grease Tube	1	14,190
895	1615430019	Oil Reservoir	1	49,720
