보쉬 GBH18V-24C 분해도 (3611J230B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 92개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	1619P16303	Housing Section	1	14,190
2	1600A023NK	Stator	1	26,840
3	1619P17162	Rotor	1	33,110
3/49	1615700044	End Shield	1	1,650

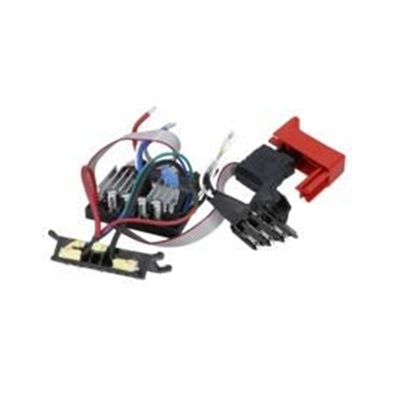

4	1600A024XX	Electronic Module	1	73,480
5	1609280477	Compression Spring	1	1,430
6/1	1600A025P4	Electronics Module	1	21,450	품절
6/2	1600A0251J	Cell Cover	1	1,650
7	1619P16921	Electronic Module	1	16,390
17/18	1610210156	O-Ring	1	1,430
27	1619P16308	Striker	1	12,430	품절
29	1619P16954	Piston Pin	1	3,740
32	1612026157	Clamp Handle	1	8,030
32/1	1610210046	O-Ring	1	1,650
36	1619P16599	Bearing Holder	1	1,210
41	1619P16304	Intermediate housing	1	2,200
46	1619P09571	Driver Pin	1	1,210
49	1612026035	Switch Button	1	1,430
51	1619P16310	Control Element	1	2,530
55	1610210206	Seal Ring	1	3,740
56	1616B00086	O-Ring	1	1,650
57	1610210068	O-Ring	1	1,430
64/1	1619P12278	Supporting Disc	1	1,430
71	1610100016	Guide Disc	2	1,430
76	1613435022	Thread-forming tap. Screw	4	1,430
77	2603490023	Torx Oval-Head Screw	1	1,210
79	1613435023	Thread-forming tap. Screw	2	1,210	품절
80	1619P17247	Torx Oval-Head Screw	7	1,210
81	2603490022	Screw	1	1,210
83	1614611006	Compression Spring	1	2,530
84	1619P16312	Change-Over Switch	1	1,210	품절
88	2916660042	Retaining ring	1	1,210
93	1600A00798	Guide Piece	1	6,380
100	1619P13744	Lens	1	1,650
101	1619P16684	Shim	1	1,210
105	1619P16314	Compression Spring	2	1,210
109	160343507U	Thread-forming tap. Screw	1	1,210
120	1619P17171	Auxiliary Handle	1	18,480
120120	160202509C	Auxiliary Handle	1	3,080
120121	1617000475	Support clamp	1	6,380
120122	1613231010	Push-Button	1	1,430
120123	2604610028	Compression Spring	1	1,430	품절
120124	1611316021	Clamping Band	1	2,200
120125	1613490002	T-Head Bolt	1	2,860
200	1619P16315	Bellows	1	1,430
202	1610499054	Protection Sleeve	1	1,650
203/1	1610101018	Support Disc	1	1,210
204	1614643003	Compression Spring	1	1,210
206	1903230013	Ball	1	1,650
207	1614601027	Retaining ring	1	1,210
208	1610101629	Retaining Washer	1	1,210
209	1610102025	Friction Washer	1	1,650
321	1619P13452	Pipe	1	36,630	품절
321/22	1616312004	Cylindrical Gear	1	8,030
321/28	1613124081	Striker Pin	1	6,380
321/33	1610590014	Holding Jacket	1	1,650	품절
321/34	1619P12280	Supporting Disc	1	1,650
321/37	1613100019	Straight Pin	2	1,430
321/38	1610190048	Catch Disk	1	3,080
321/42	1619P13410	Thrust Ring	1	4,840
321/46	2608670714	Guide Bushing	1	3,080
321/50	1614611020	Compression Spring	1	2,200
321/58	1610210178	O-Ring	1	1,430
321/59	1610283035	Rotary shaft lip seal	1	3,740
321/60	1610210176	O-Ring	1	1,210
321/72	1604601027	Retaining ring	1	1,210	품절
321/82	1614601034	Retaining ring	1	1,650
321/83	1604601028	Retaining ring	1	1,210
340	1619P16689	Impact Mechanism Housing	1	9,900
340/48	1611098008	Tab Washer	1	1,650
340/63	1610910063	Needle bearing	1	3,740
340/67	2600910006	Needle bearing	1	2,530
340/68	1610283017	Rotary shaft lip seal	1	4,840
651	1613001009	Depth-Gauge	1	2,530
653	2607337085	Battery Pack	1	188,650
654	2607225933	Charger	1	102,190
691	1619P17425	Latch	2	2,860
802	1619P17163	Stator	1	82,610
808	1619P17686	Label	1	1,980	품절
817	1619P17351	Bearing Flange	1	30,140
820	1619P17352	Intermediate Flange	1	21,450
821	1619P13455	Pipe	1	24,200
824	1619P13457	Toothed Shaft	1	8,800
826	1619P17564	Hammer Piston	1	40,480
828	1619P13453	Striker Pin	1	12,430
830	1619P17539	Drive bearing	1	40,480
843	1619P13459	Protective Cap	1	4,840
864	1619P13461	Supporting Disc	1	2,860	품절
892	1615430001	Grease Tube	1	14,190
893	1615430002	Grease Tube	1	36,630	품절
894	1615430020	Grease Tube	1	14,190
895	1615430019	Oil Reservoir	1	49,720
