보쉬 GBH18V-26 분해도 (3611J090E3)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 94개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

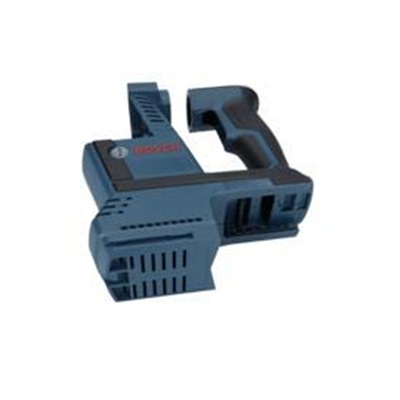

1	16051082B2	Housing Section	1	21,450

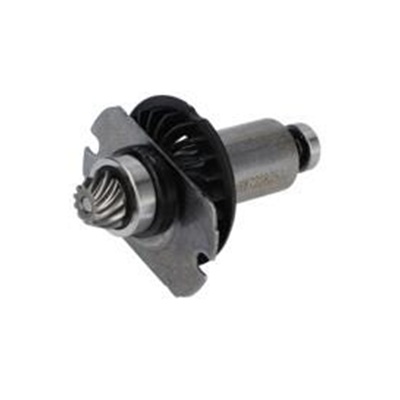

3	1600A00AR1	Rotor	1	40,480

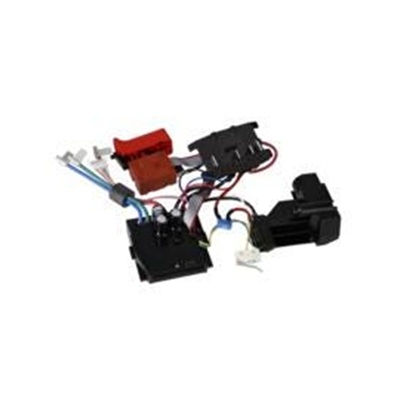

4	160723359J	Electronics Module	1	82,610

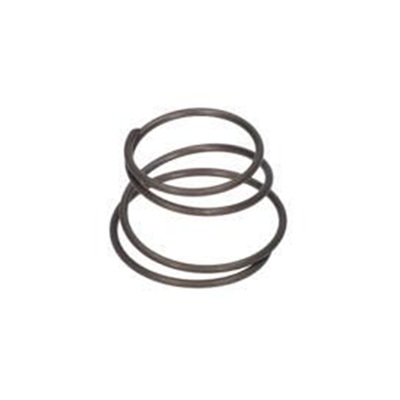

5	1609280477	Compression Spring	1	1,430
9	160111C0RN	Manufacturer's nameplate	1	1,980	품절
10	160111C0RP	Manufacturer's nameplate	1	1,980	품절
11	160111C0RX	Reference Plate	1	1,980	품절
17/18	1610210156	O-Ring	1	1,430

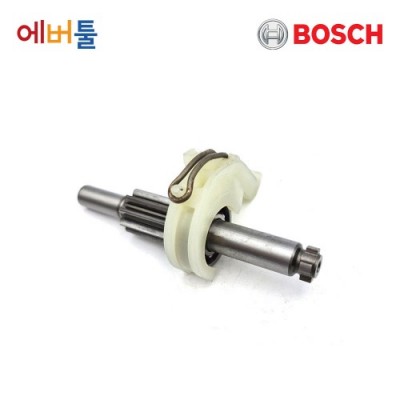

24	1600A00H7C	Jack Shaft	1	12,430
24/61	1600A00MX9	Switching Element	1	1,430
24/65	1610905016	Groove ball bearing	1	6,380

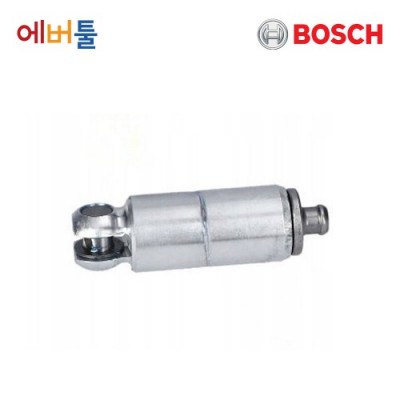

26	1600A00H7D	Hammer Piston	1	14,190
26/27	1600A00733	Striker	1	6,380
26/29	1600A01TD0	Piston Pin	1	2,860
26/56	1610210187	O-Ring	1	1,650
26/71	1610100016	Guide Disc	2	1,430

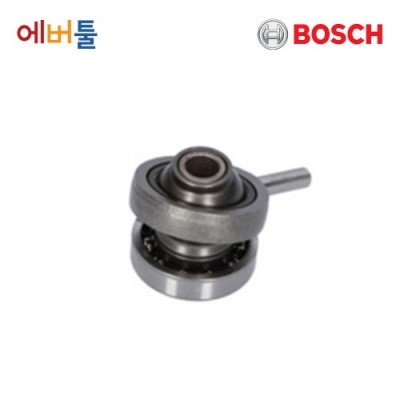

30	1600A00H7E	Drive bearing	1	14,190
32	1612026037	Clamp Handle	1	6,380
32/46	1614690002	Driver Pin	1	1,430
32/49	1612026035	Switch Button	1	1,430
32/76	1610210046	O-Ring	1	1,650
32/83	1614611006	Compression Spring	1	2,530
36	1600A007TL	Bearing Holder	1	1,650
41	16051082B8	Motor Housing	1	3,080
47	1613100030	Needle Roller	4	2,200
51	1600A007JH	Control Element	1	4,840
55	1610210206	Seal Ring	1	3,740
57	1610210208	O-Ring	1	1,430
64/1	1610190060	Supporting Disc	1	1,650
76	1613435022	Thread-forming tap. Screw	4	1,430
77	2603490023	Torx Oval-Head Screw	12	1,210
79	1613435023	Thread-forming tap. Screw	2	1,210	품절
80	160343000V	Torx Oval-Head Screw	7	1,210
81	1603435086	Torx head	1	1,210
84	1600A001E5	Switch Slide	1	1,210
88	2916660042	Retaining ring	1	1,210
92	1600A001ED	Control Element	1	1,650
93	1600A00798	Guide Piece	1	6,380
94	1601200006	Leaf Spring	1	1,210
100	1600A00752	Lens	1	1,430
101	1600A007RX	Adjusting disk	1	1,430
101	1600A007RY	Adjusting disk	1	1,430
101	1600A007RZ	Adjusting disk	1	1,430
102	2603100056	Damping rubber	2	1,430
105	1600A007RE	Compression Spring	1	1,210
109	160343507U	Thread-forming tap. Screw	2	1,210
120	160202508X	Auxiliary Handle	1	12,430	품절
120120	160202507H	Auxiliary Handle	1	6,930
120124	1611316021	Clamping Band	1	2,200
120125	1613490002	T-Head Bolt	1	2,860
120802	1617000475	Support clamp	1	6,380
200	1600A001CL	Bellows	1	3,080
202	1600A028AU	Protection Sleeve	1	1,650
203	1610508047	Protective Cap	1	1,650
204	1614643003	Compression Spring	1	1,210
206	1903230013	Ball	1	1,650
207	1614601027	Retaining ring	1	1,210
208	1610101629	Retaining Washer	1	1,210
209	1610102025	Friction Washer	1	1,650
210	1610190011	Holding Plate	1	1,430	품절
211	160460102S	Retaining ring	1	1,210
321/22	1600A007JW	Cylindrical Gear	1	5,500
321/28	1613124081	Striker Pin	1	6,380
321/33	1610590014	Holding Jacket	1	1,650	품절
321/37	1613100019	Straight Pin	3	1,430
321/38	1600A008AG	Catch Disk	1	2,530
321/42	1610102073	Thrust Ring	1	3,080
321/46	1610390051	Guide Bushing	1	3,960
321/50	1614611020	Compression Spring	1	2,200
321/58	1610210178	O-Ring	1	1,430
321/59	1610283035	Rotary shaft lip seal	1	3,740
321/60	1610210176	O-Ring	1	1,210
321/62	1610210179	O-Ring	1	1,980
321/72	1604601027	Retaining ring	1	1,210	품절
321/73	1614601012	Retaining ring	1	1,430	품절
321/82	1614601034	Retaining ring	1	1,650
321/83	1604601028	Retaining ring	1	1,210

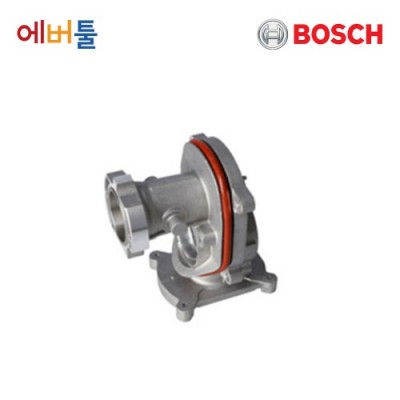

340	1600A00H7F	Impact Mechanism Housing	1	24,200
340/48	1611098008	Tab Washer	1	1,650
340/63	1610910063	Needle bearing	1	3,740
340/67	1610910098	Needle bearing	1	2,530
340/68	1610283036	Rotary shaft lip seal	1	4,840
340/78	2603490022	Screw	1	1,210
651	1613001009	Depth-Gauge	1	2,530

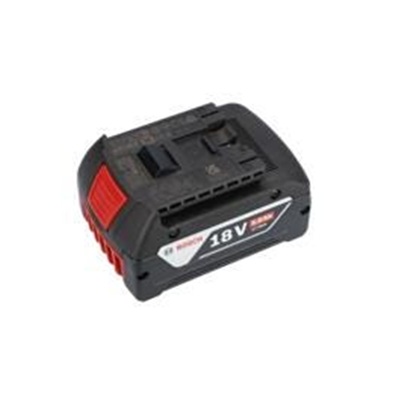

653	1617S020T2	Battery Pack	1	82,610	품절
802	1600A015E8	Stator	1	36,630
808	160111A3H9	Nameplate	1	1,980

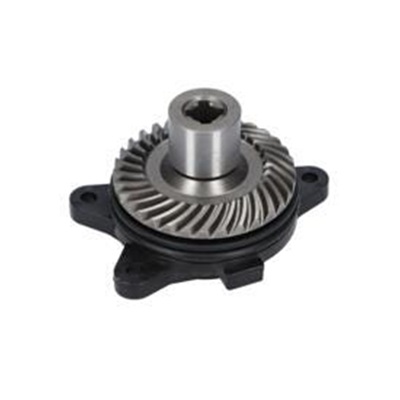

817	1607000C8Y	Bearing Flange	1	24,200
820	1607000C8X	Intermediate Flange	1	26,840
821	1607000C8Z	Pipe	1	54,670
825	1617000598	Tool Holding Fixture	1	44,880
843	1617000582	Protection Sleeve	1	6,930
855	160021007U	O-Ring	1	3,740
864	1617000A07	Supporting Disc	1	6,930
