보쉬 GBH18V-28C 분해도 (3611J20050)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 110개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1/1	16051082R9	Housing Section	1	14,190
1/61	1600A0202R	Hook	1	3,080
1/62	1600A0248A	Compression Spring	1	1,210
1/65	1600A0248B	Set screw	1	1,210
1/69	16055002H3	Cover	1	1,430
1/70	1600A020GG	Sliding element	1	1,430
2/41	1600A01U07	Stator Casing	1	2,530
2/81	1603435086	Torx head	2	1,210
3	1600A01RN0	Rotor	1	36,630
3/14	1610905044	Groove ball bearing	1	5,500
3/47	1610283047	Rotary shaft lip seal	1	8,030
3/48	1610290102	Bearing Ring	1	3,960
3/48/1	1610210208	O-Ring	1	1,430
3/49	1615700044	End Shield	1	1,650
5	1609280477	Compression Spring	1	1,430
9	160111C4V5	Manufacturer's nameplate	1	1,980	품절
10	160111C4V6	Manufacturer's nameplate	1	1,980	품절
11	160111C4UW	Reference Plate	1	1,980	품절
16	2607202905	Switch	1	6,380
17	1600A0253T	Switch-Pawl	1	1,430
26	16170006A5	Hammer Piston	1	30,140
26/27	1610311019	Striker	1	14,190
26/29	1600A01TD0	Piston Pin	1	2,860
26/56	1610210121	O-Ring	1	1,980
26/71	1610100016	Guide Disc	2	1,430
32	1612026151	Clamp Handle	1	9,900
32/322	1614690009	Driver Pin	1	2,530
32/323	1612026035	Switch Button	1	1,430
32/324	16002100A4	O-Ring	1	1,210
32/325	1614611006	Compression Spring	1	2,530
40	1600A01VU9	Impact Mechanism Housing	1	11,220
53	1610210245	O-Ring	1	2,200
55	1610210206	Seal Ring	1	3,740
63/63	1600A001CN	Needle bearing	1	1,980
63/64	1610390069	Bushing	1	1,650	품절
66	1610202021	Plain bearing	1	1,980
68	1610283036	Rotary shaft lip seal	1	4,840
73	160343003T	Screw	5	1,210
74	160343000V	Torx Oval-Head Screw	4	1,210
75	2603490023	Torx Oval-Head Screw	13	1,210
76	2603490027	Torx Oval-Head Screw	4	1,210
78	1600A003TA	Shim	2	1,210
78	1600A004FU	Shim	2	1,210	품절
78	1600A004FV	Shim	2	1,210
79	1613435023	Thread-forming tap. Screw	2	1,210	품절
80	1600A0276C	Ferrite	2	1,210
82	1613490017	Thread-forming tap. Screw	4	1,980
83	1600A029GH	Woven-Fabric Flex. Tubing	1	1,210
84	1600A021VM	Switch Slide	1	1,210
85	160120000P	Leaf Spring	1	1,210
94	1600A02603	Ribbon cable	1	1,430
98	1600A022TD	Contact block	1	1,430
100	1600A000LE	Lens	1	1,430
101	1607503764	Printed-Board Assembly	1	3,740
102	1600A016CY	Electronics Module	1	6,380
103	1600A024Y3	Ribbon cable	1	1,430
104	16072335NS	Electronic Module	1	16,390
113	1616325002	Switching Panel	1	8,030
120	16020250AS	Auxiliary Handle	1	5,500
120120	160202509C	Auxiliary Handle	1	3,080
120124	1611316021	Clamping Band	1	2,200
120125	1613490001	T-Head Bolt	1	5,500
120802	1617000685	Support clamp	1	3,080
130	1616333049	Gear Sleeve	1	12,430
135	1614601067	Retaining ring	1	1,430
136	1610205017	Felt Disc	1	1,210
137	2916660012	Spring retaining ring	1	1,430
138	1600A028UM	Guide Piece	1	1,210
200	1600A001CL	Bellows	1	3,080
203	1610508047	Protective Cap	1	1,650
206	1613230003	Ball	1	1,430
207	1614601027	Retaining ring	1	1,210
208	1610101629	Retaining Washer	1	1,210
209	1610102089	Friction Washer	1	2,200
211	160460102S	Retaining ring	1	1,210
321	1618597135	Tool Holding Fixture	1	36,630
321/22	1616312004	Cylindrical Gear	1	8,030
321/28	1613124098	Striker Pin	1	14,190
321/33	1610590020	Holding Jacket	1	3,960
321/37	1613100019	Straight Pin	3	1,430
321/38	1600A008AG	Catch Disk	1	2,530
321/42	1610102084	Thrust Ring	1	5,500
321/46	1610390068	Guide Bushing	1	11,220
321/50	1614615008	Compression Spring	1	3,740
321/58	1610210105	O-Ring	2	2,860
321/59	1600A009VC	Shaft Seal	1	2,200
321/60	1610210209	O-Ring	1	1,430
321/72	1604601027	Retaining ring	1	1,210	품절
321/86	1614601034	Retaining ring	1	1,650
321/87	1604601028	Retaining ring	1	1,210
651	1613001009	Depth-Gauge	1	2,530
653122	160111C29Y	Sticker	1	1,980	품절

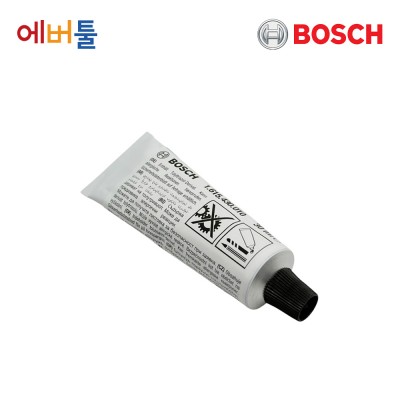

661	1615430010	Grease Tube	1	3,740
802	1607000EX5	Stator	1	30,140
804	1607000EX3	Electronics Module	1	82,610
805	1607000EX6	Electronics Module	1	6,930
808	160111AA1D	Nameplate	1	1,980	품절
820	1617000A5J	Intermediate Flange	1	24,200
821	1618597138	Tool Holding Fixture	1	40,480
825	1617000A5K	Jack Shaft	1	49,720
828	1617000697	Striker Pin	1	33,110
830	1617000698	Gear Sleeve	1	24,200
870/2	2603421207	Countersunk-Head Screw	1	1,430
871	1608571069	Chuck	1	18,480
872	2607950007	Chuck Wrench	1	3,960
892/1	1600A016ML	Cover Panel	1	1,210
892/2	1600A013WF	Electronics Module	1	26,840
893	1600A01N8R	Cover unit	1	1,430	품절
899	1607000EX4	Contact Plate	1	8,030
8025	1618597139	Tool Holding Fixture	1	8,030	품절
