보쉬 GSH388 분해도 (0611388040)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 79개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	1619P10299	Motor Housing	1	16,390
2	1619P01908	Field	1	26,840
6	1610703053	Grommet	1	1,980
7	1601302019	Fastening Clamp	1	1,430
9	1611110C06	Sticker	2	2,530	품절

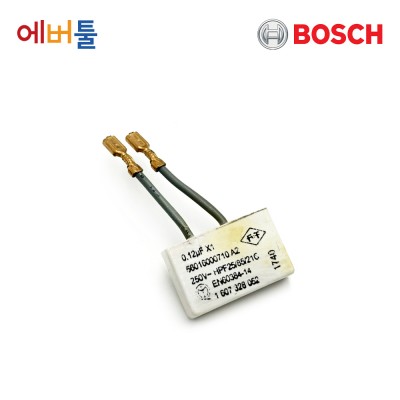

12	1607328052	Suppression Filter	1	2,860

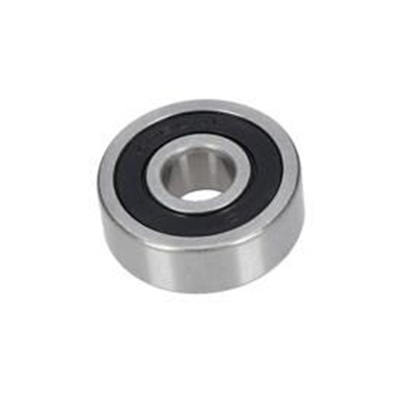

13	1610900026	Groove ball bearing	1	8,030
14	1610905041	Groove ball bearing	1	6,930	품절

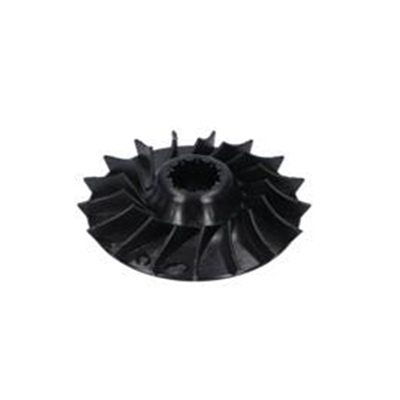

15	1616610085	Fan	1	2,200	품절
16	1610499055	Ratchet Sleeve	1	4,840

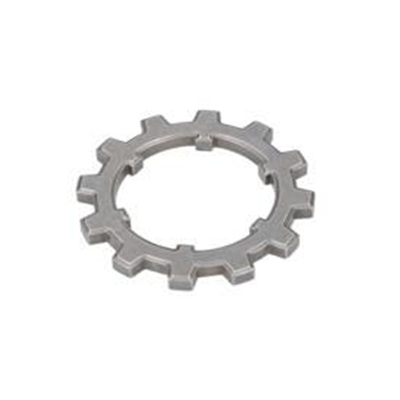

17	1610241000	Catch Disk	1	2,530

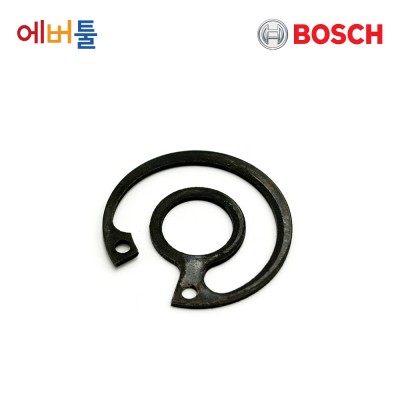

18	1614601030	Retaining ring	1	1,980
21	1610508038	Protective Cap	1	5,500

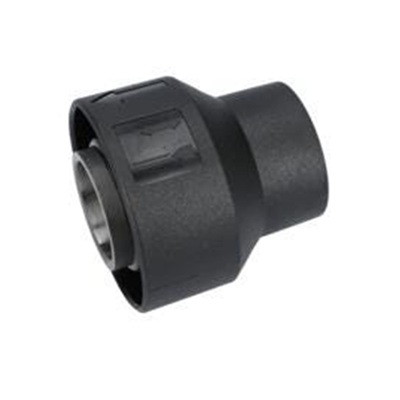

22	1610591024	Protection Sleeve	1	12,430
25	1612300034	Stopping Device	2	2,530
27	1600591032	Air-Deflector Ring	1	2,200	품절
28	1614621000	Compression Spring	1	2,200
31	1610251006	Supporting Disc	1	3,740
34	1610516013	Flange	1	1,430	품절

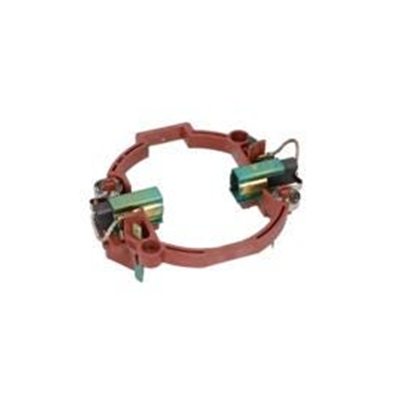

42	1614336041	Brush Holder	1	21,450
43	1615500303	Fan Cover	1	6,380
53	1610102054	Support Disc	1	2,530
57	1618710073	Striker	1	21,450	품절
69	1610099004	Retaining Bracket	1	1,980	품절
75	1619P10300	Handle	1	16,390
81	1615132079	Handle Cover	1	6,930

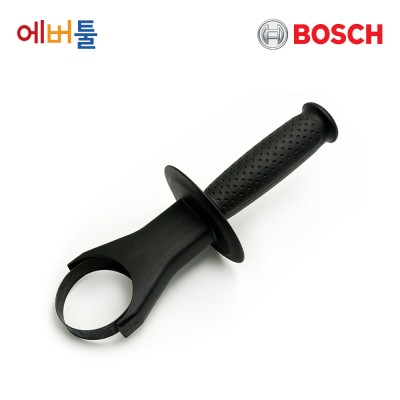

84	160202507H	Auxiliary Handle	1	6,930
86	1613490002	T-Head Bolt	1	2,860
87	1611316019	Clamping Band	1	2,860

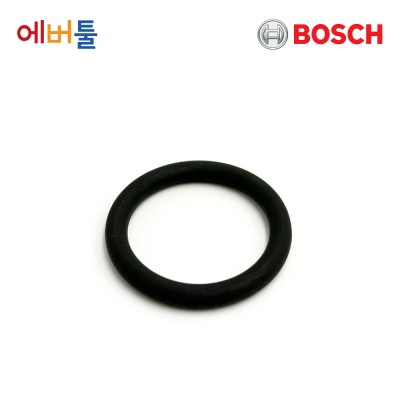

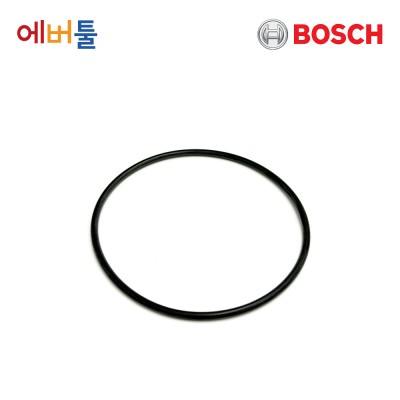

95	1610210173	O-Ring	1	1,650
104	1610210095	O-Ring	1	1,980
111	1610290064	Bushing	1	1,430	품절
112	1613300008	Hex Nut	1	1,980
113	1613435009	Tapping Screw	2	1,430	품절
116	1610311017	Inner Ring	1	3,960
121	1610328018	Bushing	1	9,900	품절
126	2603490022	Screw	1	1,210

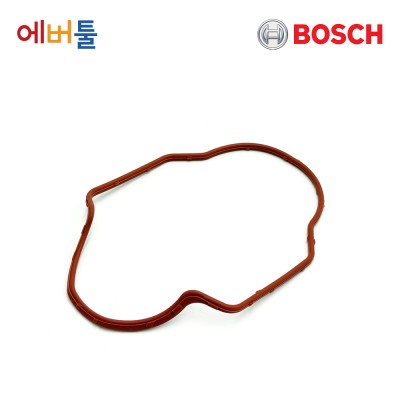

138	1611015050	Sealing Frame	1	6,380

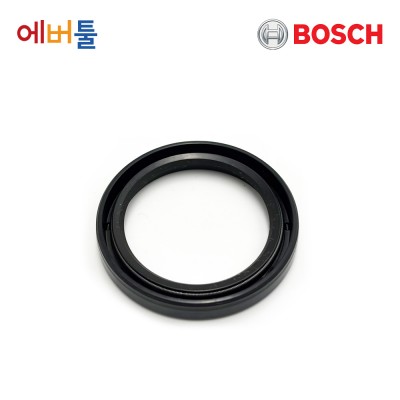

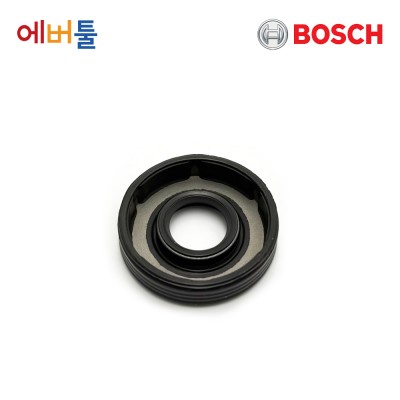

141	1610290066	Rotary shaft lip seal	1	6,380
142	1610290061	Rotary shaft lip seal	1	3,740	품절

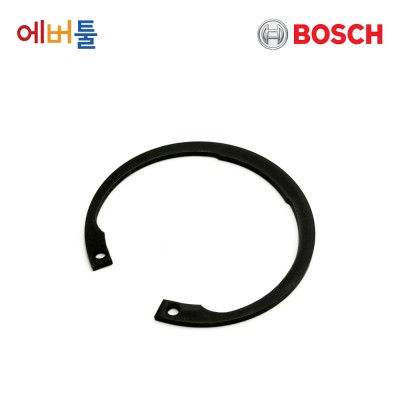

143	1614601021	Retaining ring	1	4,840
145	1610119012	Spring retaining ring	1	1,980
150	1614601041	Retaining ring	1	1,210	품절
154	2916660024	Spring retaining ring	1	3,080
160	1610210172	Damping Ring	1	3,960	품절
162	1610210091	O-Ring	1	2,530

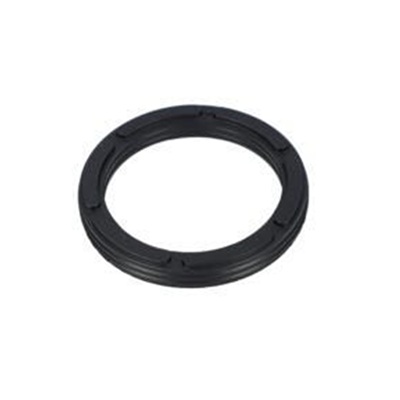

163	1610290065	Seal Ring	1	5,500
164	1610210144	O-Ring	1	3,080
165	1610210153	O-Ring	1	4,840
167	1610290062	Rotary shaft lip seal	1	2,530
171	1613435014	Torx Oval-Head Screw	4	1,650
172	1613435013	Torx Oval-Head Screw	4	1,650	품절
175	2912401018	Tapping Screw	2	1,210	품절
176	1613435012	Torx Oval-Head Screw	2	1,650	품절
177	1603435051	Tapping Screw	2	1,650	품절
178	1604412069	Connecting Cable	1	4,840	품절
661	1615430010	Grease Tube	1	3,740

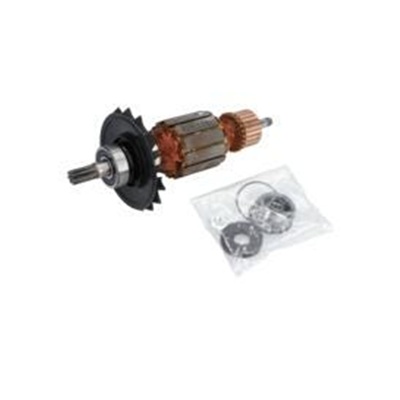

803	1619P04545	Armature	1	102,190
804	1617200110	Switch	1	21,450

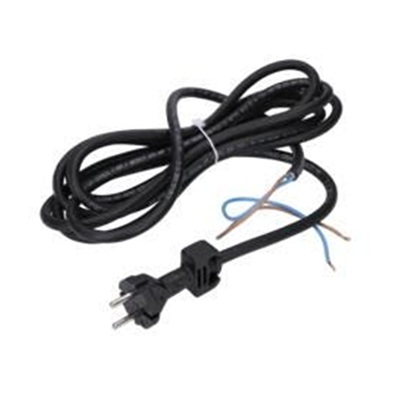

805	1607000227	Power supply cord	1	18,480
806	1900452012	End Splice	4	1,430	품절
808	160111A3H5	Nameplate	1	1,980	품절

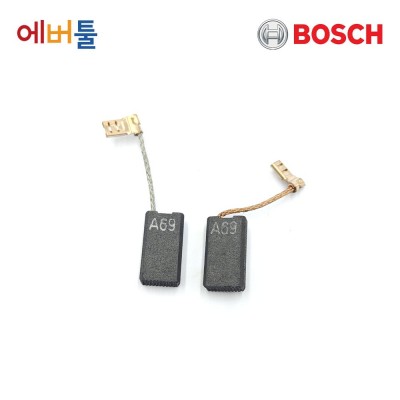

811	1617014138	Carbon-Brush Set	1	9,900
817	1614652004	Spiral Spring	2	4,840
818	2910011088	Socket head cap screw	2	1,210	품절

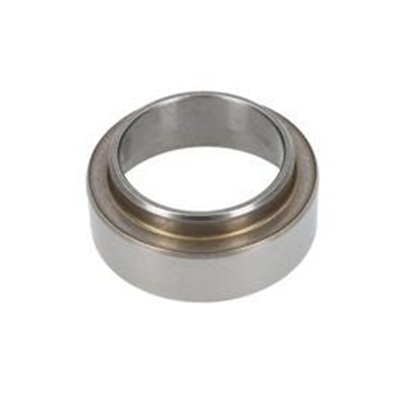

821	1617000835	Bushing	1	16,390
835	1617000838	Hammer Pipe	1	117,370	품절
838	1615190088	Covering hood	1	9,900	품절

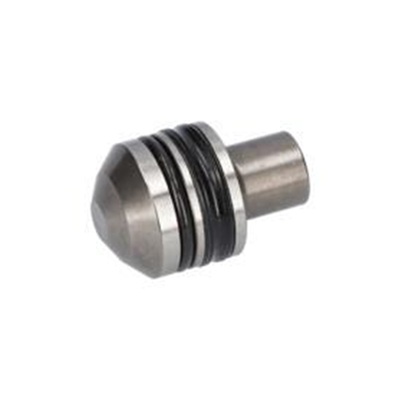

841	1617000452	Striker Pin	1	33,110
854	1617000442	Stop Disc	1	30,140

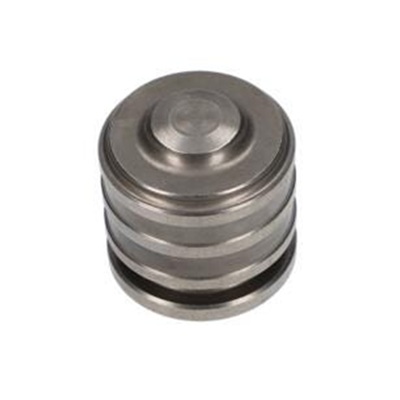

856	1617000836	Hammer Piston	1	21,450
872	1600A01BG3	Eccentric	1	33,110
874	1617000422	Holding-Down-Appliance	1	8,800
884	1607000F30	Auxiliary Handle	1	21,450
886	1617000459	Auxiliary Handle	1	8,800
890	1609244B42	Mounting Sleeve	1	133,870	품절
892	1609244B43	Bow	1	133,870
895	1615430019	Oil Reservoir	1	49,720
898	1615437512	Oil Reservoir	1	8,800
