보쉬 GCM18V-216 분해도 (3601M410B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 163개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

2	160702266T	DC motor	1	117,370
4	2607202382	Switch	1	9,900
21	1609B06265	Ribbon cable	1	1,650
25	1609B06252	Box	1	1,980
26	1609B06253	Cover	1	2,530
28	1619P01642	Compression Spring	1	1,210
29	1609B04070	Cap	1	1,430
30	1609B06268	Locking Lever	1	1,210
31	1609B06269	Compression Spring	1	1,210
32	1609B04073	Guide Bracket	1	3,740
38	1609BP7084	Screw	1	1,210
39	1609B06570	Cover	1	1,210
41	1609B04154	Rod	1	3,080
42	1609B06259	Mitre Fence	1	12,430
44	1609B06261	Mitre Fence	1	14,190
45	1609B02206	Screw	2	1,210
46	1609B05238	Table	1	60,610
51	1609B03746	End cap	1	3,960	품절
52	1609B06251	Handle	1	6,380
56	1609B00780	Screw	4	1,210
57	1609BP7326	Knob	1	1,210
58	1609B03708	Scale	1	2,200
59	1609B05382	Knurled Screw	1	1,210
60	1609B05298	Cover	1	1,210
61	1609B00863	Plain Washer	1	1,210	품절
62	1609B00717	Pointer	1	1,210	품절
63	1609B03714	Wear Plate	1	2,860	품절
64	1609B04236	Bolt	1	1,430
65	1609B04227	Adjusting Nut	1	1,210
66	1609B01949	Nut	3	1,210
67	1609B06571	Washer	1	1,210
70	1609B00682	Screw	1	1,210	품절
72	1609B05203	Bolt	1	1,210
74	1609B00704	Lock Nut	1	1,210	품절
75	1609B00670	Washer	2	1,430
77	1609B00705	Rubber Bushing	4	1,210
80	1609BP7098	Rubber Ring	1	1,210
81	1609BP7026	Hexagon Socket Screw Key	1	2,200
84	1609B05242	Support Plate	1	2,530
86	1609B05240	Rod	1	1,650	품절
87	1609B04079	Knob	1	4,840
88	1609B05241	Lever	1	1,650	품절
89	1609B02211	Spring	1	1,210
90	1609B01664	Screw	2	1,430
92	1609B05115	Cable	1	1,650
93	1609BP7341	Contact strap	1	1,210
94	1609B03727	Supporting foot	1	1,650	품절
95	1609B03729	Wear Plate	1	1,210	품절
96	1609B04108	Pivot Shaft	1	2,860
97	1609B04086	Screw	2	1,650	품절
98	1609B03723	Screw	1	1,210	품절
99	1609B01324	Plain Washer	6	1,210	품절
101	1609B01462	Shoulder Screw	2	1,210	품절
105	1609BP7143	Set screw	2	1,210
111	1609B01668	Washer	4	1,210	품절
114	1609B03739	Stop Plate	1	1,210	품절
118	1609B04134	Wear Plate	2	1,210
119	1609B03758	Pointer	1	1,430
120	1609BP7053	Compression Spring	2	1,210
121	1609BP7045	Plain Washer	1	1,210
122	1609B03749	Hex Socket Head Cap Screw	1	1,210	품절
123	1609BP7343	Contact strap	1	1,210
124	1609B03755	Knob	1	1,430	품절
125	1609B03762	Rotor	1	4,840
126	1609B03763	Felt Washer	4	1,210
127	1609B03769	Bolt	1	2,530
128	1609B02215	Lever	1	1,430
129	1609BP7081	Screw	1	1,210
130	1609B03773	Friction Plate	1	4,840	품절
131	1609B01041	Hex Nut	3	1,210	품절
132	1609B03776	Stop bolt	2	1,210
133	1609B03771	Pivot Pin	1	3,960	품절
134	1609B06272	Screw	2	1,210
136	1609B03767	Detent Pin	1	2,200	품절
137	1609B03757	Clip	1	1,430	품절
138	1609B00601	O-Ring	1	1,430
140	1609B03745	Handle Plate	2	2,200	품절
141	1609B03747	Carrying Handle	1	6,930	품절
142	1609B03768	Tapping Screw	1	1,210	품절
143	1609B03753	Slide Stop	1	1,430
144	1609B03752	Special Nut	1	2,530
145	1609B06667	O-Ring	1	1,210	품절
146	1609B00660	Spring Washer	2	1,210	품절
147	1609B03795	Shoulder Screw	1	1,210	품절
148	1609B00382	Knob	1	3,080
149	1609B00417	Compression Spring	1	1,210
150	1609B02203	Retaining Plate	1	1,430
151	1609B03766	Retaining Plate	1	1,430
152	2610027044	Dust Extraction	1	5,500
153	1609B03777	Set screw	2	1,210	품절
158	2610027045	Dust Extraction	1	2,860
159	2610027046	Bracket	1	1,430
160	1609B01561	Screw	6	1,210
161	1609B05201	Shoulder Screw	1	1,430	품절
162	1609B00623	Screw	2	1,210
164	1609B01690	Screw	1	1,210	품절
167	1609B01602	Wear Plate	2	1,210	품절
168	1609B04188	Lower guard	1	9,900	품절
169	1609B04001	Linkage	1	8,030	품절
170	1609B04002	Cover	1	1,210
171	1609B04004	Spring	1	1,430	품절
172	1609BP7145	Screw	1	1,210
173	1609B05251	Spring Clip	1	1,430
174	1609B04235	Ball Bearing	1	3,080
176	1609B04163	Screw	2	1,210
178	1609B00974	Lock Nut	2	1,430	품절
179	1609BP7134	Tapping Screw	3	1,210
182	1609B04205	Set screw	2	1,210	품절
184	1609BT4033	Nut	1	1,210
185	1609BP7068	Spring retaining ring	1	1,430
186	1609BP7050	Washer	1	1,980
187	1609B03774	Ball Bearing	4	8,030	품절
188	1609B03780	Spacer	2	1,210
189	1600200029	Plain bearing	1	2,860
190	1609B04017	Deflector	1	2,860	품절
191	1609B06271	Chip Deflector	1	2,530
192	1609B05230	Clamping Flange	1	4,840
193	1609B06289	Clamping Flange	1	2,860
194	1609B05364	Flange Bolt	1	1,430
195	1609B04020	Wheel	1	1,210
197	1609B06264	Housing Cover	1	2,200
198	1609B06286	Housing Cover	1	1,980
199	2609110353	Torx Oval-Head Screw	6	1,650
200	1609B00637	Tapping Screw	6	1,210
201	1609B00973	Screw	2	1,210
202	1609B06270	Screw	4	1,210
203	1609B00458	Quick-Lock	1	1,210	품절
212	1609B04208	Screw	1	1,210
215	1609B04664	Chip Deflector	1	3,740
225	1609B06301	Cover	1	1,430
231	1609B06266	Ribbon cable	1	1,430
232	1609B00691	Nut	2	1,650
234	1609B03791	Rubber lip	1	1,430
235	1609B04225	Plain Washer	2	1,210
236	1609B04220	Rubber Strip	1	1,430	품절
238	1609B04222	Rubber Strip	1	1,430
239	1609B00633	Screw	2	1,210
240	1609B06262	Battery Holder	1	3,080

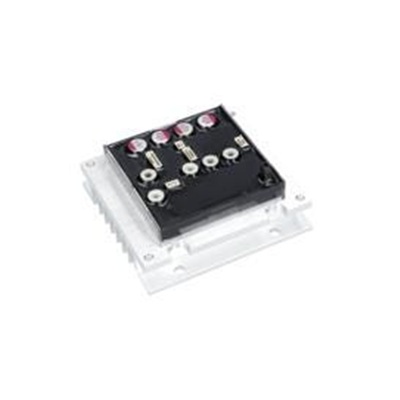

241	16072335F8	Electronics Module	1	133,870
242	1609B06832	Cable Set	1	16,390	품절
244	1609B03361	Screw	5	1,210
245	1609280477	Compression Spring	1	1,430
247	1609B06267	Cover	1	1,210
254	1609B06283	Label	1	1,980
255	1609B06285	Label	1	1,980
263	1609B06575	Label	2	1,980
284	1609B00703	Plain Washer	2	1,210
808	1609BN0379	Nameplate	1	1,980
822	1609B01726	Laser	1	14,190
825	1609B04127	Dust-Protection Cover	1	6,380

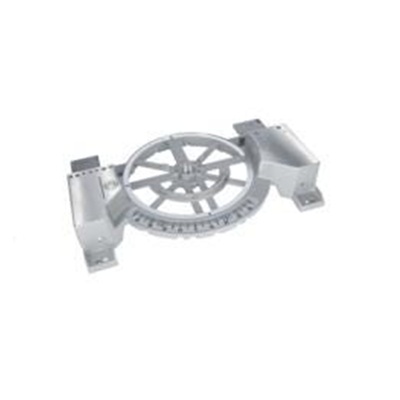

840	1609B06665	Base	1	54,670
843	1609B06578	Mitre Fence	1	12,430
844	1609B06666	LED lamp	1	6,380
847	1609B06579	Pivot	1	54,670
848	1609B06663	Yoke	1	44,880
849	1609B06664	Arm	1	40,480
850	1609B05349	Gear cover	1	8,030
851	1617S019K0	Battery Pack	1	188,650	품절
852	1609B04224	Clamp	1	12,430	품절
854	1609B06278	Dust Bag	1	4,840
855	1609B06573	Gear	1	18,480
866	1609B04124	Torsion Spring	1	8,800
876	1609B05323	Knob	1	9,900	품절
