보쉬 GCM18V-254D 분해도 (3601M51180)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 154개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	1609B07536	Motor Housing	1	6,930
4	2607202558	Switch	1	8,800
19	1609B07540	Screw	8	1,210
20	1609B08250	Warning Label	1	1,210	품절
22	1609B07537	Screw	2	1,210
23	1609B07564	Spring Washer	4	1,210
24	1609B07542	Mounting Plate	1	2,200
29	1609B07547	Porous Bearing	1	2,860
30	1609B08065	Arm	1	66,660
31	1609B08066	Cable Cover	1	1,210
32	1609B07550	Screw	5	1,210
33	1609B07551	Compression Spring	1	1,210
34	1609B07552	Detent Pin	1	1,650	품절
35	1609B07553	Retaining ring	1	1,210
36	1609B07554	Push Button	1	1,210
37	16072335NH	Electronics Module	1	102,190
40	1609B07557	Lamp Housing	1	1,430
41	1609B07558	Protective Glass	1	1,210
42	1609B07559	Reflector	1	1,430
43	1609B07560	Led Board	1	4,840
44	1609B07561	Screw and washer assembly M4×10/8.8	5	1,210
45	1609B07562	Cable	1	1,650
46	1609B07563	Cover	1	3,080
48	1609B07565	Handle	1	11,220
49	1609B07566	Screw	14	1,210
50	1609B07567	Battery Holder	1	2,200
51	1609B06831	Cable Set	1	11,220
52	1609B07568	Battery Holder	1	2,530
53	1609B07569	Button	1	1,430
54	1609B07570	Compression Spring	1	1,210
55	1609B07571	Air-Deflector Ring	1	1,650
56	1609B07572	Handle	1	9,900
57	1609B07573	Tapping Screw	2	1,210
58	1609B07574	Screw and washer assembly M5×16/4.8	2	1,210
61	1609B07721	Cable tie	1	1,430	품절
64	1609B07580	Compression Spring	1	1,210
68	1609B07669	Washer	2	1,210
69	1609B07586	Stop Plate	1	1,650
72	1609B07633	Screw	2	1,210
74	1609B07703	Screw	5	1,210
75	1609B07592	Knob	2	1,430
76	1609B07593	Supporting foot	4	1,430
77	1609B07594	Washer	2	1,210
78	1609B07595	Spring Washer	1	1,210
79	1609B07642	Lock Nut	1	1,210
80	1609B08068	Base	1	91,850
81	1609B07598	Stop Plate	1	1,430
82	1609B07599	Auxiliary Support	1	5,500
83	1609B07719	Screw	2	1,210
84	1609B08070	Bolt	1	1,210
85	1609B08071	Scale Plate	1	1,650
86	1609B08072	Wear Plate	3	2,860
87	1609B08073	Mitre Fence	1	33,110
94	1609B08076	Mitre Fence	1	9,900
95	1609B08077	Mitre Fence	1	11,220
96	1609B07610	Screw	4	1,210	품절
97	1609B08159	Shoulder Screw	1	1,430
98	1609B08078	Locking Lever	1	2,860	품절
99	1609B07613	Knob	1	3,740	품절
100	1609B08080	Spring Plate	1	1,430	품절
101	1609B07615	Washer	3	1,210
102	1609B08081	Rod	1	2,530
103	1609B07617	Fixing plate	1	1,210
105	1609B07619	Pressure Screw	1	1,210
106	1609B07620	Rubber Retaining Ring	1	1,210
108	1609B07622	Support Plate	2	1,650
109	1609B07623	Pointer	1	1,210
114	1609B07628	Spring Washer	3	1,210
115	1609B07676	Screw	1	1,210
120	1609B07634	Screw	3	1,210
121	1609B08087	Screw	2	1,210
123	1609B08089	Lock Nut	1	1,430
124	1609B07715	Lock Nut	3	1,210
127	1609B07639	Knurled Nut	1	1,210
128	1609B08091	Knob	1	1,650
129	1609B07641	Locking Pin	1	2,530
130	1609B08092	Washer	1	1,210
132	1609B07644	Shoulder Screw	2	1,430
133	1609B08094	Connecting Link	1	11,220
134	1609B08256	Flange	1	5,500

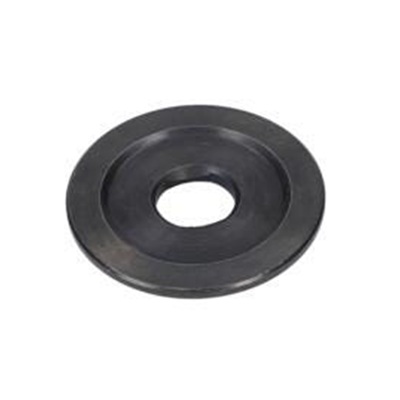

136	1619PA6973	Clamping Flange	1	2,530

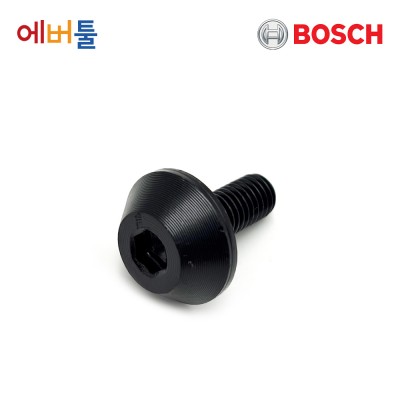

137	1619PA4354	Thread-forming tap. Screw	1	1,430
138	1609B07649	Bushing	2	1,210
139	1609B08095	Wear Plate	2	1,430
140	1609B08096	Bushing	1	2,200
141	1609B07591	Torsion Spring	1	21,450
142	1609B08097	Shaft	1	3,080
143	1609B07654	Stop Plate	1	1,430
145	1609B07655	Wave spring	1	1,210
147	1609B07657	Locking Pin	1	2,860
148	1609B08098	Shaft	1	2,530
149	1609B07659	Nut	1	1,210
150	1609B07660	Pointer	1	1,210
152	1609B08101	Cover Plate	2	1,650
153	1609B07663	Felt Washer	4	1,210
154	1609B07664	Rubber Pad	2	1,210
155	1609B08102	Bracket	1	60,610
156	1609B07666	Compression Spring	2	1,210
157	1609B07667	Knob	1	1,430
158	1609B07668	Compression Spring	2	1,210
159	1619PA7028	Holder	1	1,210
160	1609B08103	Pressure Screw	1	1,430
162	1609B07672	Handwheel	1	2,860
167	1609B07677	Shoulder Screw	3	1,210
169	1609B07679	Pressure Screw	1	1,210
170	1609B07680	Nut	2	1,210
171	1609B07681	Pressure Screw	2	1,210
172	1609B08266	Knob	1	1,210
173	1609B07683	Compression Spring	1	1,210
174	1609B07693	Tapping Screw	1	1,210
175	1609B07685	Knob	1	1,430
176	1609B07686	Connection plate	2	2,530
177	1609B07687	Carrying Handle	1	5,500
178	1609B07688	Tapping Screw	2	1,210
179	1609B08106	Detent plate	1	6,380
180	1609B07690	Rubber lip	1	1,210
181	1609B08107	Dust Extraction	1	2,860
182	1609B07692	Tapping Screw	1	1,210
183	1609B08108	Washer	1	1,210
184	1609B07694	Tapping Screw	3	1,210
186	1609B07696	Connector	1	1,430
189	1609B07717	O-Ring	1	1,650
190	1609B07700	Retaining ring	1	1,210
191	1609B08258	Knob	1	1,210
192	1609B08161	Screw	8	1,210
193	1609B07714	Control Lever	1	1,430
194	1609B07629	Washer	1	1,210
195	1609B07712	Hexagon Socket Screw Key 45	1	2,200
196	1609B07706	Screw	3	1,210
197	1609B07707	Laser module	2	11,220
199	1609B08109	Cover	1	1,430
202	1609B07704	Holder	1	1,430
203	1609B07705	Holder	1	1,430
204	1609B07716	Support Plate	1	1,430
205	1609B07720	Terminal lug	2	1,210
206	1609B07724	Label	1	1,430
207	1609B07722	Label	1	1,430
208	1609B07723	Label	1	1,430
209	1609B07726	Label	1	1,430
210	1609B07684	Washer	1	1,210
216	1609B07725	Label	1	1,430
217	1609B07583	Lock Nut	2	1,210
218	1609B07661	Screw	2	1,210
802	1609B08351	Brushless DC motor	1	82,610
804	1609B08155	Table	1	91,850
808	1609B08261	Nameplate	1	1,980	품절
812	1609B08120	Lower guard	1	26,840
825	1609B07605	Output Shaft	1	30,140
831	1609B08129	Bracket	1	73,480
861	1609B07675	Supporting Block	2	24,200
863	1609B08353	Linear Roller Bearing	1	8,030
870	1609B08121	Extension Stand	2	30,140
888	1609B07930	Dust Bag	1	6,380
892	1609B06932	Adjustable screw clamp	1	12,430
