보쉬 GWS18V-10 분해도 (3601JJ4081)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 49개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

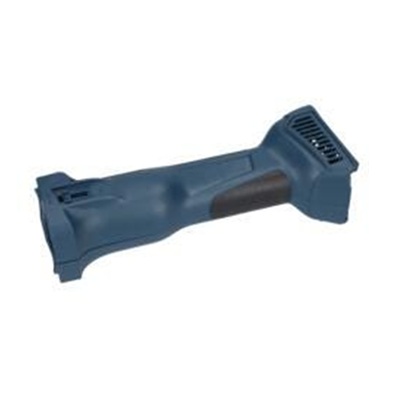

1	1619P15334	Motor Housing	1	16,390

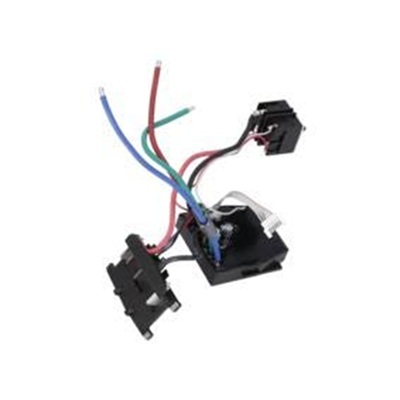

4	2607202328	Switch	1	12,430
5	1619P16641	Fan	1	1,430

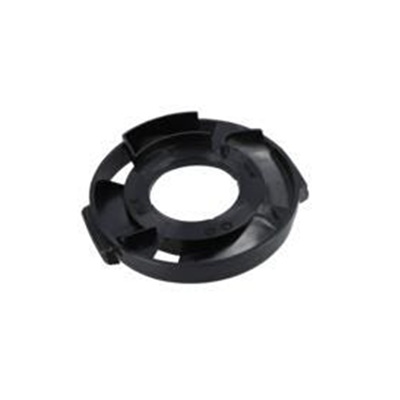

6	1600591065	Air-Deflector Ring	1	1,980
9	1619P15337	Manufacturer's nameplate	1	1,980	품절
12	1600A00RK2	Ferrite	1	1,650
17	1600100P12	Cover	1	1,430
18	1619P15338	Switch Handle	1	1,430
20	1619P16511	Adjusting Slide	1	1,210
28	3600210109	O-Ring	1	1,650
33	1600210035	O-Ring	1	1,430
35	1600136013	Shim	1	1,980
35	1600136014	Shim	1	1,980
35	1600136015	Shim	1	1,980
36	1610100023	Washer	1	1,210
45	1619P17544	Hex Nut	1	1,210
46	1609280477	Compression Spring	1	1,430
49	2914491410	Thread-forming tap. Screw UM4x16-St	4	1,210
50	2609110201	Torx Flat-Head Screw	4	1,650
53	1619P01066	Torx Oval-Head Screw	3	1,210
54	2603490025	Torx Oval-Head Screw	1	1,210
60	1600A00P18	Reverse-Transfer Lever	1	1,210
80	1619P09390	Cover Disc	1	1,650
321/7	1619P16508	Air Distributor	1	6,930
321/14	1619P09955	Groove ball bearing	1	3,740
321/27	1600206025	Rubber Ring	1	1,650
321/37	1600A00P17	Holder	1	1,210
321/40	1600119011	Retaining clip	1	1,650
321/41	1600200029	Plain bearing	1	2,860
321104	1600210044	O-Ring	1	1,210
343	1607000742	Catch Lever	1	4,840
343/44	1604611042	Compression Spring	1	1,430
650/1	1619P10681	Auxiliary Handle	1	2,530
650/2	1600A029FC	Quick Acting Flange	1	8,030	품절
650/5	2605703014	Clamping Flange	1	4,840
651	1600A025XR	Protective Cover	1	6,380
652	2607225937	Charger GAL 1880 CV	1	102,190	품절
653	1617S020T1	Battery Pack	1	60,610	품절
653	1617S020T2	Battery Pack	1	82,610	품절

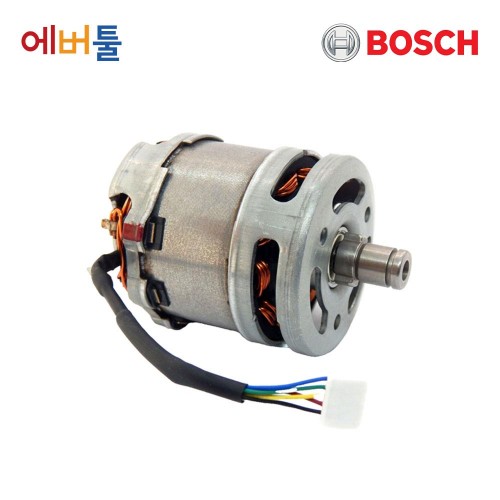

802	1607000CA4	Motor	1	82,610
803	1607000CA5	Bevel Gear Shaft	1	8,030

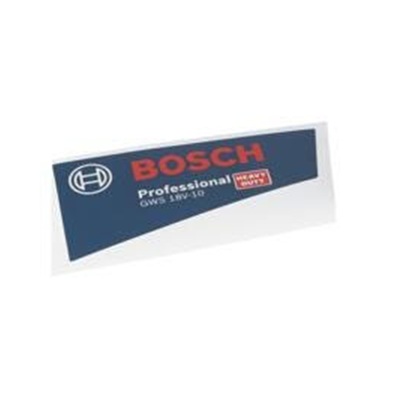

808	1619P15474	Nameplate	1	1,980	품절

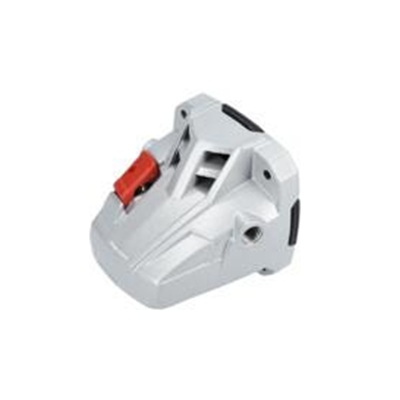

821	1607000CA6	Gear Housing	1	30,140
828	1619P17885	Bearing Flange	1	26,840	품절
840	1607000V41	Push-Button	1	2,860
851	1619P15493	Electronics Module	1	91,850
884	1607000CA9	Filter Unit	1	6,930
894	1615430020	Grease Tube	1	14,190
895	1605430003	Grease Tube	1	26,840
