보쉬 GWS18V-10SC 분해도 (3601JG34B1)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 58개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	16051082DU	Motor Housing	1	16,390
5	160661016E	Fan	1	2,200
6	1600591065	Air-Deflector Ring	1	1,980
9	160111C2MW	Manufacturer's nameplate	1	1,980	품절
12	1600A00RK2	Ferrite	1	1,650
17	1600100P12	Cover	1	1,430
18	1600A00P2P	Switch Handle	1	1,650
20	1600A00P14	Adjusting Slide	1	1,430
28/284	3600210109	O-Ring	1	1,650
28/32	1607000D6A	Grinding Spindle	1	4,840
28/80	1619P09390	Cover Disc	1	1,650
33	1600210035	O-Ring	1	1,430
35	1600136013	Shim	1	1,980
35	1600136014	Shim	1	1,980
35	1600136015	Shim	1	1,980
35	1600136020	Shim	1	2,530
36	1610100023	Washer	1	1,210
45	1603300016	Hex Nut	1	1,430
46	1609280477	Compression Spring	1	1,430
49	2914491410	Thread-forming tap. Screw UM4x16-St	4	1,210
50	1603435071	Thread-forming tap. Screw	4	1,210
53	1603435078	Torx Oval-Head Screw	3	1,210	품절
54	1603414026	Torx Oval-Head Screw	1	1,210
60	1600A00P18	Reverse-Transfer Lever	1	1,210
89	1600A00P2M	Light Conductor	1	1,650
90	16072335LX	Speed governor	1	21,450
91	1607503438	Electronics Module	1	9,900	품절
92	1600A00M53	Cover Panel	1	1,210
94	16055002BV	Cover	1	1,650	품절
95	1600A00P1B	Cover	1	1,210
321/7	1600591066	Air Distributor	1	2,200
321/14	1600905032	Groove ball bearing	1	3,740
321/27	1600206025	Rubber Ring	1	1,650
321/37	1600A00P17	Holder	1	1,210
321/40	1600119011	Retaining clip	1	1,650
321/41	1600200029	Plain bearing	1	2,860
321104	1600210044	O-Ring	1	1,210
343	1607000742	Catch Lever	1	4,840
343/44	1604611042	Compression Spring	1	1,430
650/1	16020250A0	Auxiliary Handle	1	6,930	품절
650/2	1600A029FC	Quick Acting Flange	1	8,030	품절
650/5	2605703014	Clamping Flange	1	4,840
652	1600A021MH	Protective Cover	1	6,380
653	2607225933	Charger	1	102,190
654	1607A350AS	Battery Pack	1	188,650
654	2607337267	Battery Pack	1	152,240	품절
802	1607000CA4	Motor	1	82,610
803	1607000CA5	Bevel Gear Shaft	1	8,030

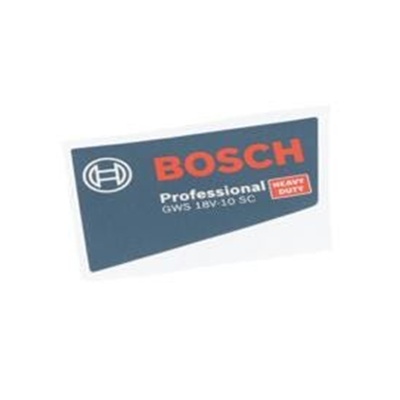

808	160111A9BP	Nameplate	1	1,980	품절

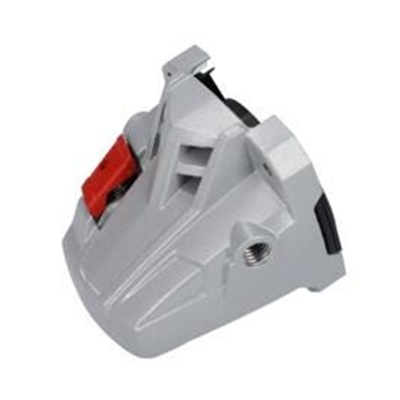

821	16058065S3	Gear Housing	1	26,840
828	1607000D6D	Bearing Flange	1	9,900
840	1607000V41	Push-Button	1	2,860

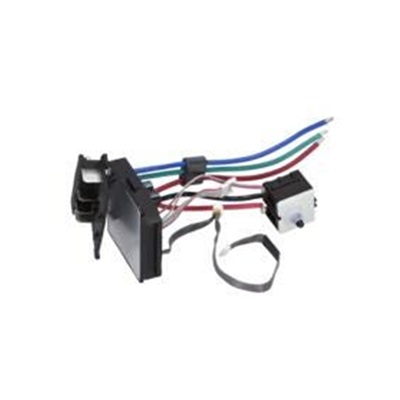

851	1607000D5W	Electronics Module	1	91,850
852	1600A02059	Protective Cover	1	8,030
884	1607000CA9	Filter Unit	1	6,930
891	160202509T	Auxiliary Handle	1	2,530	품절
893	1607950052	N-Type Face-Wrench	1	2,530	품절
899	1607000D33	Protective Cover	1	11,220
