보쉬 GSH5CE 분해도 (3611C210B2)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 94개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

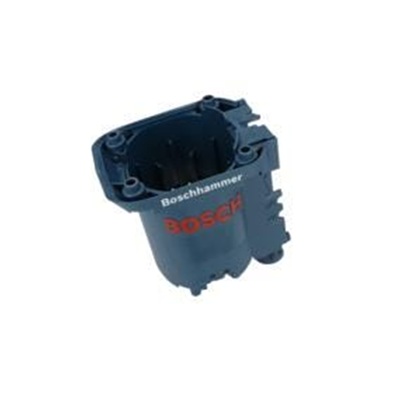

1	1615102161	Motor Housing	1	21,450

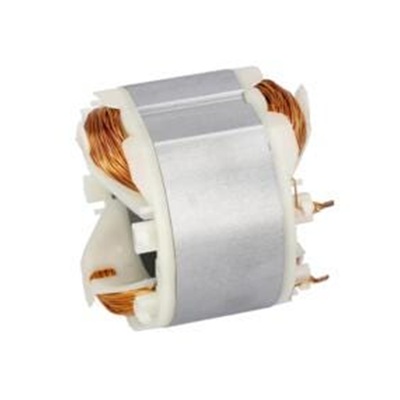

2	1614220123	Field	1	33,110	품절

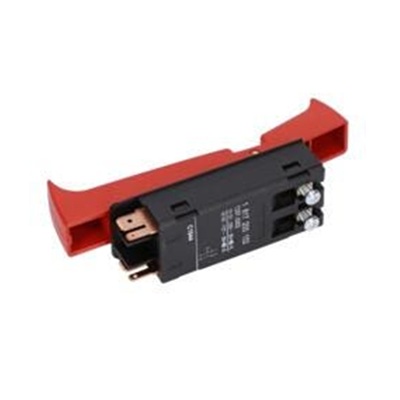

4	1617200102	Switch	1	12,430

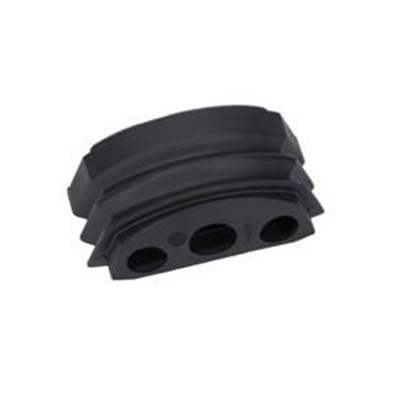

6	1600703035	Grommet	1	2,200
7	1601302018	Fastening Clamp	1	1,430
13	1610900026	Groove ball bearing	1	8,030
14	1610905041	Groove ball bearing	1	6,930	품절
15	1616610090	Fan	1	8,030	품절
16	1610499055	Ratchet Sleeve	1	4,840
17	1610241000	Catch Disk	1	2,530
18	1614601030	Retaining ring	1	1,980
21	1610508038	Protective Cap	1	5,500
22	1600A0221L	Rotection Sleeve	1	3,080
23	1610520001	Stop Sleeve	1	8,030	품절
25	1612300036	Stopping Device	2	8,800
26	1600A019WL	Indexing Disk	1	2,200
27	1610591028	Air-Deflector Ring	1	1,980	품절

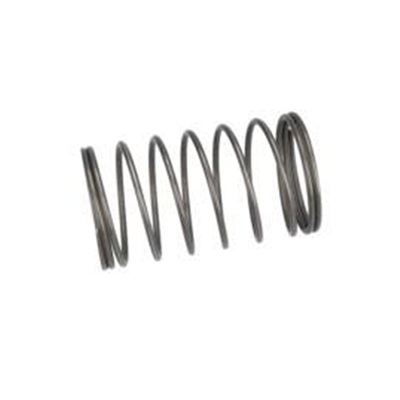

28	1614621010	Compression Spring	1	2,860
31	1610290049	Damping Ring	1	2,200	품절
34	1610516013	Flange	1	1,430	품절
37	1615500390	Bearing Pedestal	1	5,500	품절
38	1615190158	Covering hood	1	4,840	품절
42	1614336085	Brush Holder	1	30,140	품절

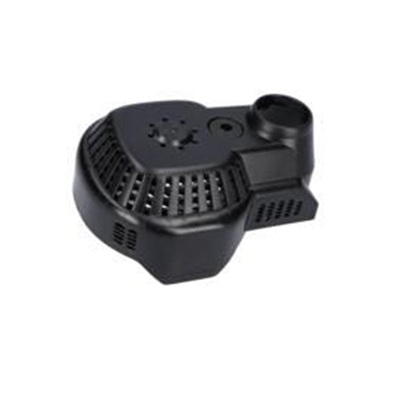

43	1615500410	Fan Cover	1	8,800	품절
44	1614621007	Compression Spring	1	2,200	품절
45	1610499064	Control Bushing	1	11,220	품절
53	1610102054	Support Disc	1	2,530
54	1610231001	Guide Bushing	1	8,030
57	1618710089	Striker	1	16,390
69	1610099005	Retaining Bracket	1	1,650	품절

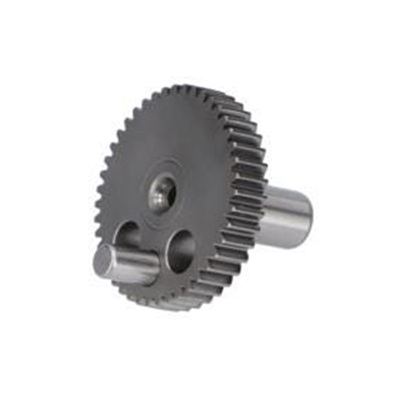

72	1600A014S6	Eccentric Cog Wheel	1	30,140
73	16055002EP	Housing Cover	1	24,200
74	1600A0073C	Holding-Down-Appliance	1	2,530	품절
75	1615132118	Handle	1	40,480
80	1617233049	Speed governor	1	66,660
81	1615132088	Handle Cover	1	16,390	품절
86	2911021267	Hex Screw	1	2,530
88	1619P16922	Star Knob	1	2,530
95	1610210173	O-Ring	1	1,650
104	1610210095	O-Ring	1	1,980
111	1610290064	Bushing	1	1,430	품절
112	1613300008	Hex Nut	1	1,980
113	1613435009	Tapping Screw	2	1,430	품절
116	1610913029	Needle-Roller Assembly	2	2,860
121	1610328018	Bushing	1	9,900	품절
126	2603490022	Screw	1	1,210
138	1611015050	Sealing Frame	1	6,380
139	1600A018Z1	Felt	1	1,430
141	1610290066	Rotary shaft lip seal	1	6,380
142	1610290061	Rotary shaft lip seal	1	3,740	품절
143	1614601021	Retaining ring	1	4,840
144	1610251006	Supporting Disc	1	3,740
145	1610119012	Spring retaining ring	1	1,980
146	1610113012	Shim	1	2,200	품절
150	1614601041	Retaining ring	1	1,210	품절
154	2916660024	Spring retaining ring	1	3,080
156	1610224009	Retaining ring	1	1,430	품절
160	1610210172	Damping Ring	1	3,960	품절
161	1610290093	Damping rubber	1	1,430	품절
162	1610210203	O-Ring	1	5,500
163	1610290065	Seal Ring	1	5,500
165	1610210153	O-Ring	1	4,840
167	1610290062	Rotary shaft lip seal	1	2,530
168	1610210144	O-Ring	1	3,080
171	1613435014	Torx Oval-Head Screw	4	1,650
172	1613435013	Torx Oval-Head Screw	4	1,650	품절
175	2912401018	Tapping Screw	4	1,210	품절
176	1613435012	Torx Oval-Head Screw	2	1,650	품절
177	2603490024	Torx Oval-Head Screw	2	1,430
195	1613490015	Torx Oval-Head Screw	2	1,980	품절
196	1613435019	Screw and washer assembly	1	1,430	품절
200	1610284000	Bellows	1	6,380	품절
661	1615430010	Grease Tube	1	3,740

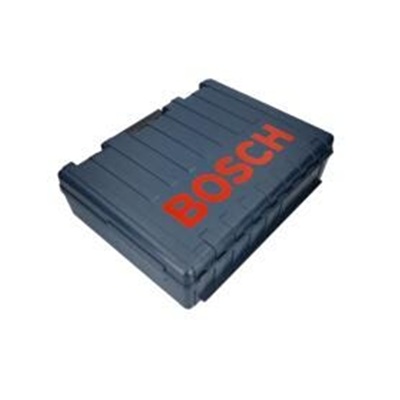

691	16054381CC	Carrying Case	1	36,630	품절

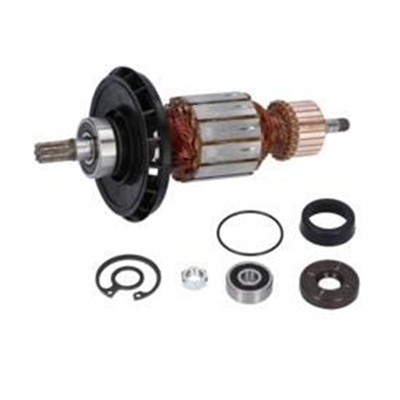

803	1614011098	Armature	1	91,850
805	1617000723	Power supply cord	1	21,450
811	1617014144	Carbon-Brush Set	1	11,220
815	1609271281	Socket head cap screw	2	1,210	품절
817	1614652004	Spiral Spring	2	4,840
818	2910011082	Socket head cap screw	2	1,210	품절
821	1617000835	Bushing	1	16,390
825	1617000706	Bearing Shaft	1	8,030	품절
840	1617000898	Impact Mechanism Housing	1	102,190
841	1617000899	Striker Pin	1	33,110
854	1617000707	Guide Bushing	1	18,480	품절
856	1617000A00	Hammer Piston	1	14,190	품절
884	1602025097	Auxiliary Handle	1	33,110
886	2911011270	Hex Screw	1	2,860
889	1618040084	Clamping Piece	1	1,980
890	1609244B42	Mounting Sleeve	1	133,870	품절
891	1617000A26	Spring Pack	1	18,480
892	1609244B43	Bow	1	133,870
895	1615430015	Grease Tube	1	30,140

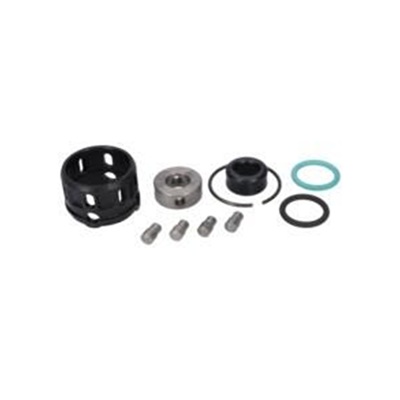

897	1617000708	Wear and Tear Part Set	1	36,630	품절
