보쉬 GSH9VC 분해도 (3611C220B1)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 106개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	1615108165	Motor Housing	1	24,200	품절
2	1614220124	Field	1	24,200	품절
4	161720030B	Switch	1	24,200

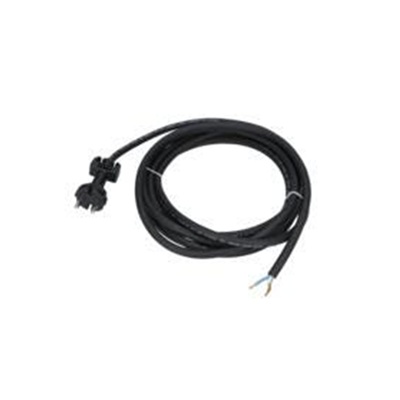

5	1614460098	Power supply cord	1	16,390
6	1610703053	Grommet	1	1,980
7	1601302018	Fastening Clamp	1	1,430
13	1610900026	Groove ball bearing	1	8,030
14	1610910096	Needle-Roller Bearing	1	16,390
15	1616610109	Fan	1	11,220
21	1610508038	Protective Cap	1	5,500
22	1610591051	Protection Sleeve	1	5,500
23	1610520006	Stop Sleeve	1	12,430	품절
24	1610500025	Headed Bush	1	6,380	품절
25	1612300027	Stopping Device	2	6,930
26	1600A019WL	Indexing Disk	1	2,200

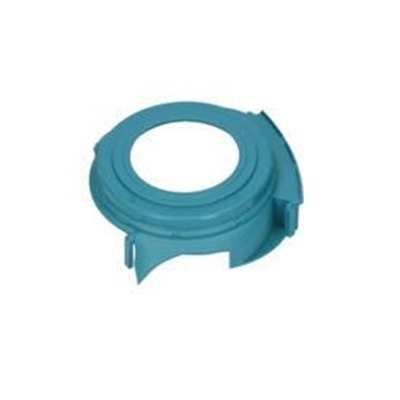

27	160059105C	Air-Deflector Ring	1	1,980	품절
28	1614621010	Compression Spring	1	2,860
31	1610290129	Damping Ring	1	3,740
37	1610322018	Control Bushing	1	4,840
38	1615190177	Covering hood	1	24,200	품절
42	1614336090	Brush Holder	1	36,630	품절
43	1615500435	Brush-Cover	1	6,930	품절
44	1614621020	Compression Spring	1	1,980	품절
45	1610591052	Holding-Down-Appliance	1	1,650	품절
48	1619990186	Clutch Sleeve	1	4,840	품절
52	1610224015	Retaining snap ring	1	1,210	품절
54	1600A019Z4	Spacer Tube	1	2,200	품절
58	1600A0014J	Locking Bush	1	3,740	품절
59	1615805074	Bearing Pedestal	1	6,380	품절
72	1616317090	Eccentric Cog Wheel	1	40,480
80	16072335R4	Speed governor	1	54,670

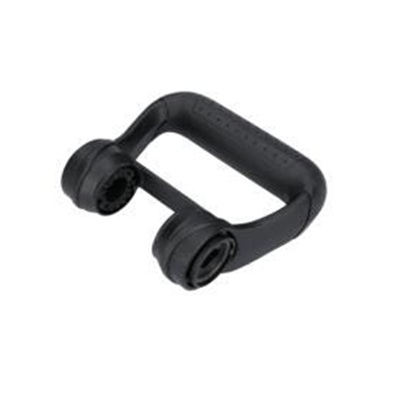

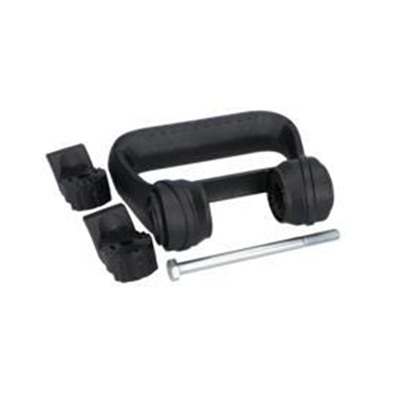

84	1602025081	Auxiliary Handle	1	14,190
85	1600A008BL	Clamping Piece	2	1,980	품절
86	2911021267	Hex Screw	1	2,530
88	1619P16922	Star Knob	1	2,530
94	1610290111	Supporting Disc	1	1,650	품절
95	1613120023	Driving Pin	4	2,860	품절
99	1600220029	Backup ring	1	2,200
110	1610190073	Seal Ring	1	1,210	품절
111	1610290046	Bushing	1	2,200	품절
112	1613300007	Hex Nut	1	1,430
113	1613412001	Tapping Screw	2	1,430	품절
115	1610300086	Bushing	1	3,740
117	1610913023	Needle-Roller Assembly	1	12,430
119	1610910081	Needle-Roller Bearing	1	9,900
120	1610190080	Spacer Tube	1	8,030	품절
122	1610290128	Spacer Ring	1	4,840	품절
125	1613435040	Torx Oval-Head Screw	16	1,650	품절
126	2603490023	Torx Oval-Head Screw	1	1,210
129	1610300080	Bushing	1	2,860	품절
138	1611015064	Sealing Frame	1	3,960
142	1610290112	Rotary shaft lip seal	1	2,860	품절
143	1614601072	Retaining ring	1	1,980	품절
144	1610103025	Supporting Disc	1	2,530	품절
151	1610210222	O-Ring	1	1,210	품절
152	1614601073	Retaining ring	1	1,430	품절
153	2916540017	Retaining ring	1	1,430
154	2916660027	Spring retaining ring	1	2,860	품절
155	1614601074	Retaining ring	2	1,430	품절
157	1610210103	O-Ring	1	1,980
158	1610210224	O-Ring	1	1,210
160	1610210246	O-Ring	1	1,430	품절
161	1610210227	Damping Ring	1	5,500	품절
162	1600210080	O-Ring	2	1,650	품절
165	1610290125	Seal Ring	1	6,380
166	1613200020	Cylindrical Roller	6	2,200
167	161029012A	Rotary shaft lip seal	1	2,860	품절
168	1610206027	Packing Washer	1	1,980
171	1613414026	Torx socket button screw	4	1,210
172	1613435041	Torx Oval-Head Screw	4	1,430	품절
175	2603490021	Torx Oval-Head Screw	4	1,210	품절
189	1615133038	Handle	1	9,900
190	1615500438	Handle Cover	1	11,220
192	1614611028	Rocker Foot	1	3,740
194	1610099018	Screw Plate	1	1,650
195	1610099019	Screw Plate	1	1,650
196	1610026004	Damping rubber	2	1,210
197	1616232000	Leaf Spring	1	6,930	품절
204	1615102162	Rear Housing Section	1	14,190	품절
206	1612386006	Holding strip	1	1,210	품절
208	1615190180	Diaphragm	1	3,080
661	1615430010	Grease Tube	1	3,740
691	161543851A	Carrying Case	1	36,630

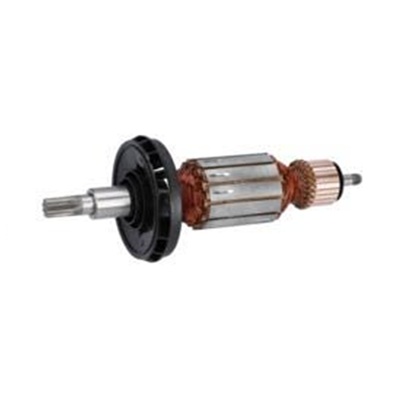

803	1614010267	Armature	1	152,240
804	1610190027	Stop Disc	1	3,740	품절
808	160111A3H5	Nameplate	1	1,980	품절
810	1617000A50	Carbon-Brush Set	1	16,390
820	1618597102	Toolholder	1	102,190	품절
821	1610508058	Plain bearing	1	21,450
840	1607000C38	Impact Mechanism Housing	1	152,240	품절
841	1617000A4R	Striker Pin	1	36,630	품절
849	1617000A31	Control Fork	1	4,840	품절
853	1610231004	Guide Bushing	1	21,450	품절
856	1617000A32	Hammer Piston	1	36,630
857	1617000A33	Striker	1	21,450	품절
858	1616317620	Cylindrical Gear	1	8,800	품절
872	1617000A35	Eccentric	1	73,480
873	1617000A4S	Housing Cover	1	60,610
883	1613490019	Hex Screw	1	1,980	품절

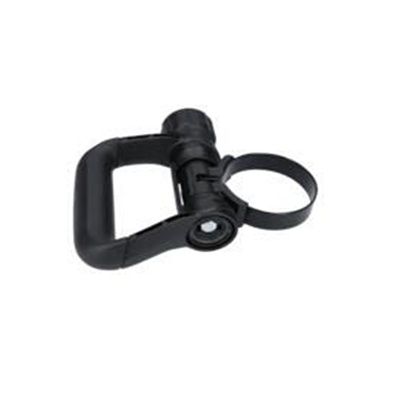

884	160202508T	Auxiliary Handle	1	30,140
885	160202508J	Auxiliary Handle	1	44,880
887	1600A01BH0	Clamping Band	1	6,930
891	1612099005	Rocker Arm	1	6,930	품절
897	1610415005	Bellows	1	6,380
898	1610415004	Bellows	1	6,380	품절
899	1600A004E6	Service package	1	49,720	품절
