보쉬 GBH18V-45C 분해도 (3611J13180)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 105개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

9	160111C375	Manufacturer's nameplate	1	1,980	품절
10	160111C376	Manufacturer's nameplate	1	1,980	품절
14	1610910096	Needle-Roller Bearing	1	16,390
21	1610508038	Protective Cap	1	5,500
22	1610591051	Protection Sleeve	1	5,500
23	1610520006	Stop Sleeve	1	12,430	품절
24	1610500025	Headed Bush	1	6,380	품절
25	1612300027	Stopping Device	2	6,930
26	1600A019WL	Indexing Disk	1	2,200
28	1614621010	Compression Spring	1	2,860
31	1610290129	Damping Ring	1	3,740
37	1610322018	Control Bushing	1	4,840
38	1615190177	Covering hood	1	24,200	품절
43	1600A01D7D	Fan Cover	1	14,190
44	1614621020	Compression Spring	1	1,980	품절
45	1610591052	Holding-Down-Appliance	1	1,650	품절
47	1610300076	Gear Sleeve	1	5,500	품절
48	1619990177	Clutch Sleeve	1	6,380	품절
52	1610224015	Retaining snap ring	1	1,210	품절
54	1600A019Z4	Spacer Tube	1	2,200	품절
58	1616317620	Cylindrical Gear	1	8,800	품절
59	1615805074	Bearing Pedestal	1	6,380	품절
72	1616317090	Eccentric Cog Wheel	1	40,480
84	160202507H	Auxiliary Handle	1	6,930
84	160202509C	Auxiliary Handle	1	3,080
85	1618040095	Support clamp	1	3,740	품절
87	1617000807	Clamping Band	1	12,430	품절
94	1610290111	Supporting Disc	1	1,650	품절
95	1613120023	Driving Pin	4	2,860	품절
98	1610101015	Shim ring	1	1,430	품절
99	1600220029	Backup ring	1	2,200
104	1610190027	Stop Disc	1	3,740	품절
116	1610913029	Needle-Roller Assembly	2	2,860
117	1610913023	Needle-Roller Assembly	1	12,430
119	1610910081	Needle-Roller Bearing	1	9,900
120	1610190080	Spacer Tube	1	8,030	품절
122	1610290128	Spacer Ring	1	4,840	품절
123	160343003T	Screw	5	1,210
124	2603490022	Screw	2	1,210
125	1613435040	Torx Oval-Head Screw	1	1,650	품절
127	1610300079	Bushing	1	2,860	품절
129	1610300080	Bushing	1	2,860	품절
138	1611015064	Sealing Frame	1	3,960

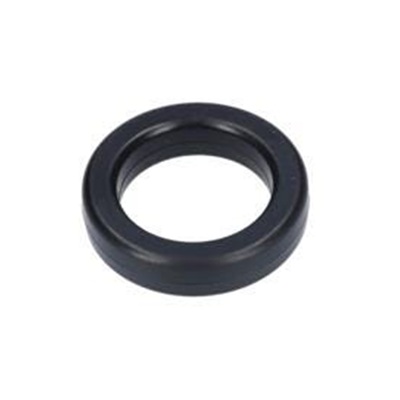

142	1610290112	Rotary shaft lip seal	1	2,860	품절
143	1614601072	Retaining ring	1	1,980	품절
144	1610103025	Supporting Disc	1	2,530	품절
151	1610210222	O-Ring	1	1,210	품절
152	1614601073	Retaining ring	1	1,430	품절
153	2916540017	Retaining ring	1	1,430
154	2916660027	Spring retaining ring	1	2,860	품절
155	1614601074	Retaining ring	2	1,430	품절
157	1610210103	O-Ring	1	1,980
158	1610210224	O-Ring	1	1,210
160	1610210246	O-Ring	1	1,430	품절
161	1610210227	Damping Ring	1	5,500	품절
162	1600210080	O-Ring	2	1,650	품절
165	1610290125	Seal Ring	1	6,380
166	1613200020	Cylindrical Roller	6	2,200
167	161029012A	Rotary shaft lip seal	1	2,860	품절
168	1610206027	Packing Washer	1	1,980
171	1613414026	Torx socket button screw	4	1,210
172	1613435041	Torx Oval-Head Screw	4	1,430	품절
189	160513217Z	Handle	1	5,500
190	1600A015RL	Handle Cover	1	6,380
192	1600A015RV	Rocker Foot	1	2,200	품절
196	1600A002PC	Damping rubber	2	1,430
197	160120000C	Leaf Spring	1	6,380	품절
204	1600A01A78	Rear Housing Section	1	24,200
206	1612386006	Holding strip	1	1,210	품절
240	1600A000K3	Counterweight	1	6,380
241	1615190181	Guide Piece	1	1,980
242	1615190182	Guide Piece	1	1,980
243	1614621013	Compression Spring	4	1,980
304	2607202360	Switch	1	5,500
381	16072335EP	Electronic Module	1	24,200
383	1600A016CY	Electronics Module	1	6,380
384	1607503567	Ribbon cable	1	1,980
387	1600A01N8R	Cover unit	1	1,430	품절
388	1600A01P8Z	LED-Module	1	3,740
800	1610102095	Shim	1	1,210
800	1610102096	Shim	1	1,430	품절

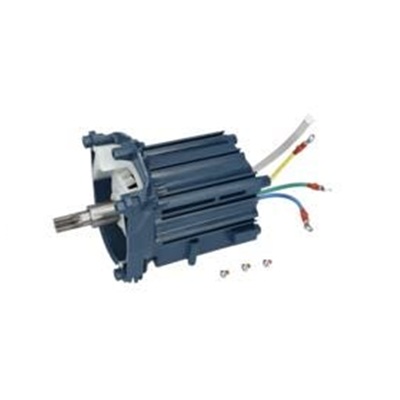

801	1607000DN4	Brushless DC motor	1	133,870
802	1600A01R8P	Ribbon cable	1	2,860	품절
805	1607000DN6	Contact retainer	1	33,110
805/1	1607000DL8	Contact retainer	1	12,430
806	1607000DF6	Rail	1	24,200
808	160111A3H5	Nameplate	1	1,980	품절
820	1618597102	Toolholder	1	102,190	품절
821	1610508058	Plain bearing	1	21,450
839	1607000EX8	Motor Hood	1	12,430	품절

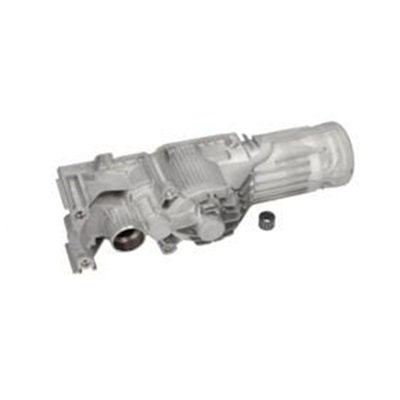

840	1617000A29	Impact Mechanism Housing	1	152,240	품절
841	1617000A4R	Striker Pin	1	36,630	품절
849	1617000A31	Control Fork	1	4,840	품절
853	1610231004	Guide Bushing	1	21,450	품절
856	1617000A32	Hammer Piston	1	36,630
857	1617000A33	Striker	1	21,450	품절
860	1607000EL4	Spur Wheel Clutch	1	133,870	품절
872	1617000A35	Eccentric	1	73,480
873	1617000A36	Housing Cover	1	40,480	품절

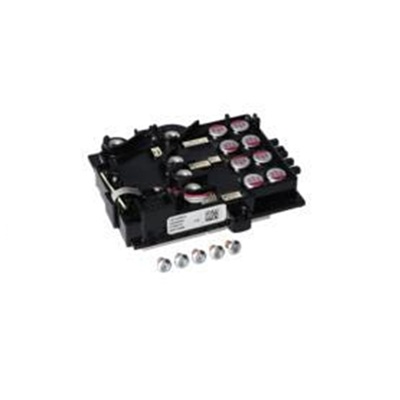

880	1607000DN5	Electronics Module	1	152,240
891	1607000DF1	Rocker Arm	1	9,900
894	1607000DF2	Screw Plate	1	9,900
895	1607000DF3	Diaphragm	1	26,840
897	1607000DF4	Boot	1	12,430
898	1607000DF5	Boot	1	12,430
