보쉬 GBH5-40DCE 분해도 (3611B640B3)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 100개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	1615102161	Motor Housing	1	21,450
2	1614220123	Field	1	33,110	품절

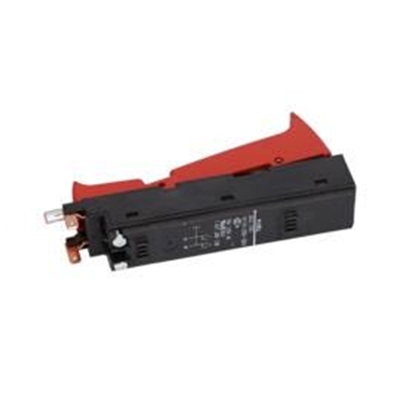

4	1617200120	Switch	1	12,430
6	1600703035	Grommet	1	2,200
7	1601302018	Fastening Clamp	1	1,430
13	1610900026	Groove ball bearing	1	8,030
14	1610905041	Groove ball bearing	1	6,930	품절
15	1616610090	Fan	1	8,030	품절
21	1610508038	Protective Cap	1	5,500
22	1600A0221K	Protection Sleeve	1	2,860	품절
23	1610520001	Stop Sleeve	1	8,030	품절
25	1612300036	Stopping Device	2	8,800
26	1600A019WL	Indexing Disk	1	2,200
27	1610591028	Air-Deflector Ring	1	1,980	품절

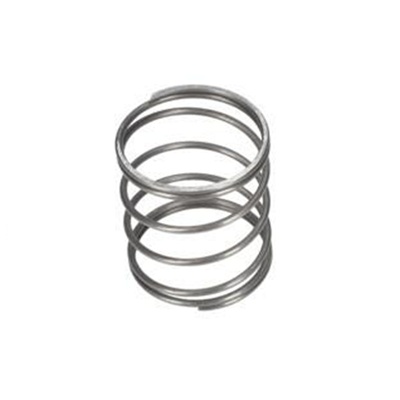

28	1614621010	Compression Spring	1	2,860
31	1610290049	Damping Ring	1	2,200	품절
34	1610516013	Flange	1	1,430	품절
35/2	160015001F	Spring retaining ring	1	1,650
37	1615500393	Bearing Pedestal	1	5,500
38	1615190159	Covering hood	1	11,220	품절
42	1614336085	Brush Holder	1	30,140	품절
43	1615500410	Fan Cover	1	8,800	품절
44	1614617004	Compression Spring	1	2,200	품절
45	1610499070	Control Bushing	1	12,430	품절
47	1610300064	Gear Sleeve	1	3,960	품절
48	1616334012	Clutch Sleeve	1	3,080	품절
53	1610290068	Support Disc	1	2,530
57	1618710091	Striker	1	21,450

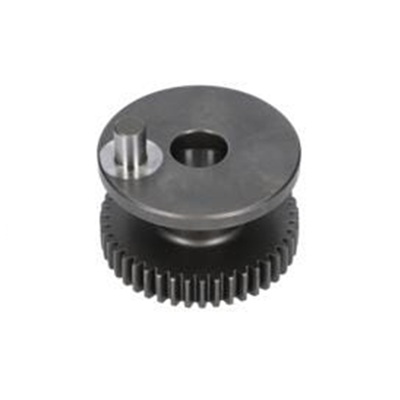

72	1600A014S9	Eccentric Cog Wheel	1	16,390
74	1611921001	Guide Plate	1	1,980	품절
75	1615132118	Handle	1	40,480
79	1613435015	Torx Oval-Head Screw	2	1,430

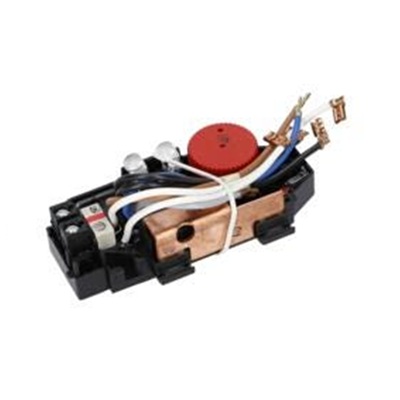

80	1617233047	Speed governor	1	44,880
81	1615132088	Handle Cover	1	16,390	품절
86	1613490002	T-Head Bolt	1	2,860
87	1611316019	Clamping Band	1	2,860
94	1610102056	Friction Washer	1	2,200
95	1610210173	O-Ring	1	1,650
97	1610031005	Locking washer	1	2,530	품절
99	1610102059	Support Disc	1	1,980	품절
102	1610102057	Shim	1	1,430
102	1610102058	Shim	1	1,430
104	1610210160	O-Ring	1	2,530
106	1610499073	Retaining snap ring	1	3,960	품절
111	1610290064	Bushing	1	1,430	품절
112	1613300008	Hex Nut	1	1,980
113	1613435009	Tapping Screw	2	1,430	품절
117	1610913029	Needle-Roller Assembly	4	2,860
120	1610590019	Stop Sleeve	1	12,430
126	2603490022	Screw	1	1,210
138	1611015053	Sealing Frame	1	8,030	품절
141	1610290066	Rotary shaft lip seal	1	6,380
142	1610290069	Rotary shaft lip seal	1	3,740
143	1614601021	Retaining ring	1	4,840
144	1610251006	Supporting Disc	1	3,740
145	1610119012	Spring retaining ring	1	1,980
154	2916660023	Spring retaining ring	1	3,080	품절
160	1610290095	Damping Ring	1	6,930	품절
161	1610290094	Damping Ring	1	2,860	품절
162	1610210204	O-Ring	1	3,740
163	1610290065	Seal Ring	1	5,500
165	1610210079	O-Ring	1	3,740
167	1610283033	Rotary shaft lip seal	1	3,960
168	1610210144	O-Ring	1	3,080
171	1613435016	Torx Oval-Head Screw	6	1,650
172	1613435013	Torx Oval-Head Screw	4	1,650	품절
174	1613435012	Torx Oval-Head Screw	6	1,650	품절
175	2912401018	Tapping Screw	4	1,210	품절
177	2603490024	Torx Oval-Head Screw	2	1,430
192	1614611019	Compression Spring	1	1,980
195	1613490015	Torx Oval-Head Screw	2	1,980	품절
196	1613435019	Screw and washer assembly	1	1,430	품절
198	1618900001	Control Lever	1	3,740	품절
200	1610284000	Bellows	1	6,380	품절
202	1611010006	Switch Hook	1	3,080	품절
661	1615430010	Grease Tube	1	3,740

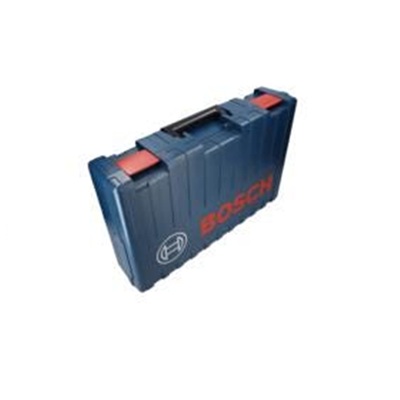

691	1615438461	Carrying Case	1	36,630
803	1614011098	Armature	1	91,850
805	1617000723	Power supply cord	1	21,450
808	160111A3H5	Nameplate	1	1,980	품절
811	1617014144	Carbon-Brush Set	1	11,220
816	1609271281	Socket head cap screw	2	1,210	품절
817	1614652004	Spiral Spring	1	4,840
818	2910011082	Socket head cap screw	2	1,210	품절
821	1617000A02	Bushing	1	18,480	품절
825	1617000706	Bearing Shaft	1	8,030	품절
830	1617000478	Supporting Disc	1	4,840	품절
835	1617000A4J	Hammer Pipe	1	133,870	품절
840	1607000EL7	Impact Mechanism Housing	1	91,850	품절
841	1617000899	Striker Pin	1	33,110
849	1617000839	Control Fork Control Fork	1	18,480	품절
854	1617000718	Guide Bushing	1	24,200
856	1617000A04	Hammer Piston	1	18,480
860	1607000F00	Spur Wheel Clutch	1	36,630
873	1607000ET8	Housing Cover	1	40,480	품절
884	1607000F30	Auxiliary Handle	1	21,450
886	1607000F31	Auxiliary Handle	1	8,800	품절
890	1615430015	Grease Tube	1	30,140
891	1617000A26	Spring Pack	1	18,480

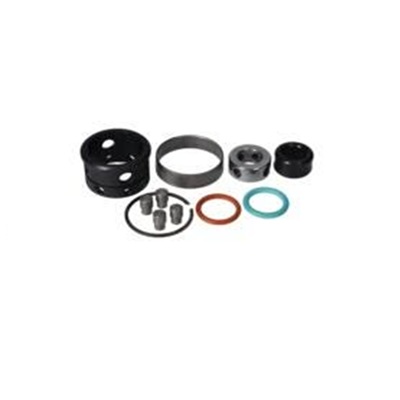

897	1617000A4L	Wear and Tear Part Set	1	49,720
