보쉬 GSB24-2 분해도 (3601A9C9B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 59개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

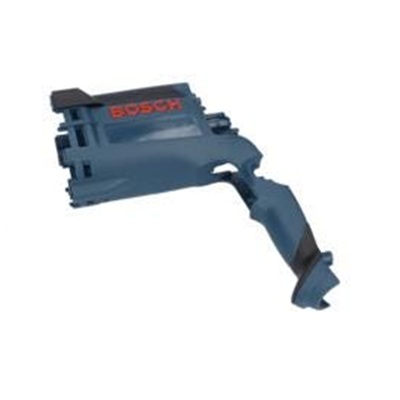

1	2605105141	Motor Housing	1	18,480

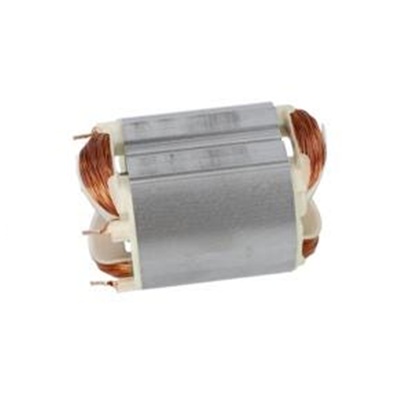

2	2604220727	Field	1	18,480

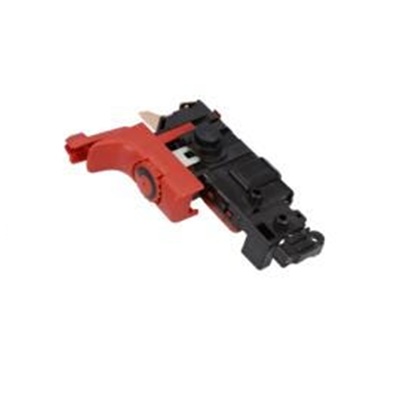

4	160720038B	Switch	1	30,140	품절
9	160111C2KG	Manufacturer's nameplate	1	1,980	품절
14	2600905095	Ball Bearing	1	8,030
19	2603490017	Torx Oval-Head Screw	1	1,650
20	2601115903	Reference Plate	1	1,980	품절
24	2606135148	Drilling Spindle	1	18,480	품절
26	2604616013	Compression Spring	1	1,650
27	1900905163	Groove ball bearing	1	6,930
28	2600100695	Shim	1	1,430
29	2916650008	Spring retaining ring	1	1,430
30	2602300032	Flat Key	2	2,530
31	2600101671	Retaining Washer	1	1,430
33	2606317086	Cylindrical Gear	1	5,500
34	2606317098	Cylindrical Gear	1	8,030
35	2600101047	Shim	2	1,430	품절
36	2600190105	Catch Disk	1	1,980
38	2600000021	Shim washer	1	1,430	품절
38	2600000030	Shim washer	1	1,430	품절
38	2600000031	Shim washer	1	1,430	품절
40	1903230009	Ball	1	1,210	품절
40	1903230010	Ball	1	1,210
40	2603230007	Ball	1	1,210
41	2602026168	Rotary Knob	1	1,650
42	2603120064	Control Shaft	1	2,200

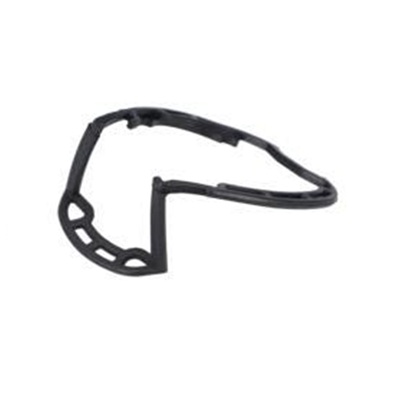

44	2601015091	Seal	1	2,530
46	2603435086	Tapping Screw	4	1,210
47	2605132070	Housing Cover	1	8,800
53	2600550008	Disc Spring	1	1,430
63	2603435085	Headless Screw	3	1,210
68	2604616014	Compression Spring	1	1,210
69	2602026117	Rotary Knob	1	1,650
71	1600A01BV3	Ratchet Cap	2	1,210
72	2603490027	Torx Oval-Head Screw	1	1,210
73	2603490022	Screw	2	1,210
74	2601324062	Switch Contact	2	1,430
75	2601099260	Contact	2	1,650

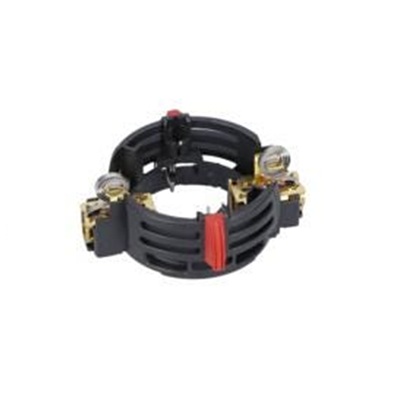

76	1614336086	Brush Plate	1	12,430
78	2916660014	Spring retaining ring	1	1,430
84	2916660008	Spring retaining ring	1	1,650
87	1600A014ZP	Connecting Cable	1	1,650
89	2605510206	Lens	1	1,980
210	160111C0YY	Sticker	1	1,650	품절
653	2602025184	Auxiliary Handle	1	18,480
655	1613001009	Depth-Gauge	1	2,530
803	2604011401	Armature	1	49,720

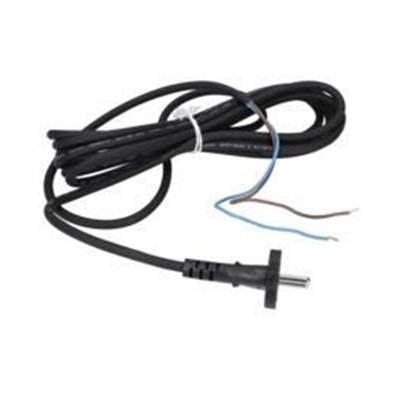

805	1607000386	Power supply cord	1	14,190
810	1617000525	Carbon-Brush Set	1	6,930

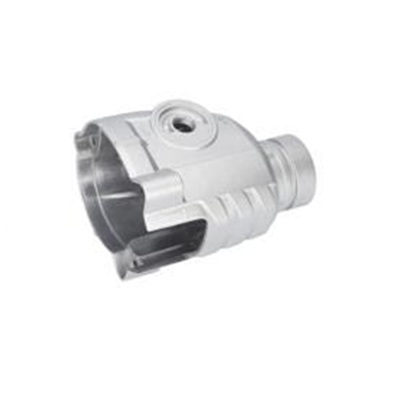

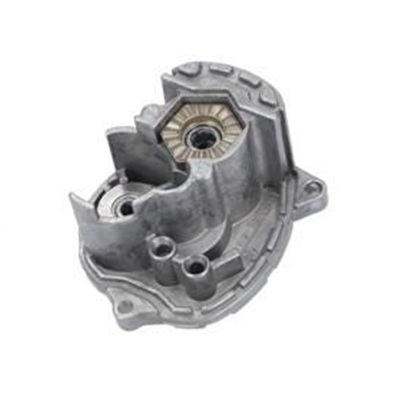

825	2605806882	Gear Housing	1	40,480	품절
843	2605700946	Bearing Bracket	1	26,840	품절

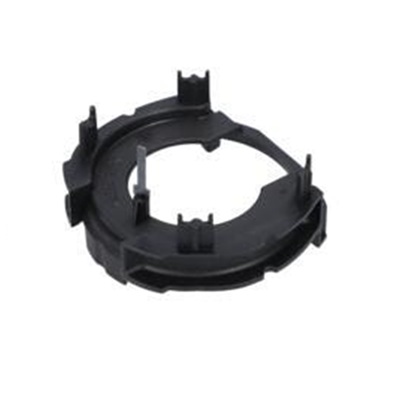

845	2600148016	Air-Deflector Ring	1	2,200	품절
859	2606309942	Transmission	1	30,140
866	2602033018	Adjusting Slide	1	2,860
867	2606308925	Toothed rack	1	3,740
885	2607950007	Chuck Wrench	1	3,960
888	2601328900	Holding Plate	1	2,200
890	2607001305	Fastening parts kit	1	2,860
895	3605430003	Grease Tube	1	21,450
