보쉬 GBS75A 분해도 (3601B740A1)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 52개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	2605104549	Motor Housing	1	26,840
2	2604220480	Field	1	14,190
3/60	2606610049	Fan	1	1,650
4	2607200084	Switch	1	6,380	품절
6	2600703017	Grommet	1	1,980
7	2601035001	Cable Clip	1	1,430
12	1600A0086Z	Suppression Filter	1	2,860
13	2605805008	Flanged Bearing	1	3,080
16	2604449026	Brush Holder	2	1,430
18	2603410001	Socket head cap screw	2	1,430
19	2603490022	Screw	11	1,210
20	2603490023	Torx Oval-Head Screw	1	1,210
25	1600502011	Intermediate Ring	1	1,980	품절

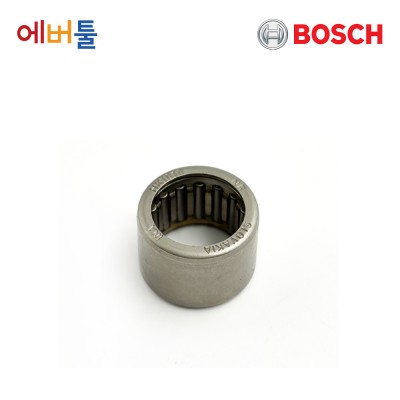

26	2600910001	Needle-Roller Bearing	1	2,860
28	1900905041	Groove ball bearing	1	8,800
30	2600100099	Shim	2	1,650	품절

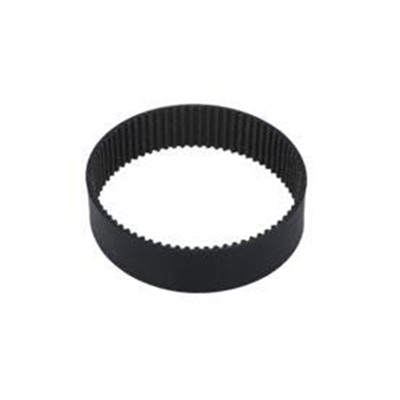

33	2604736010	Toothed Belt	1	5,500
35	1600206024	Intermediate Ring	1	1,430	품절
37	1605510150	Covering hood	1	2,860

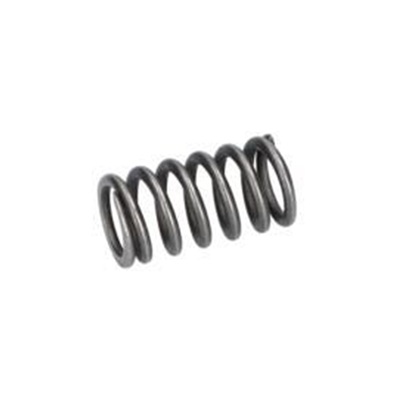

40	2604630002	Compression Spring	1	1,430	품절
41	2603339005	Wing Nut	1	2,200	품절
44	1608005004	Base	1	8,800
46	1603521027	Axle	1	6,380

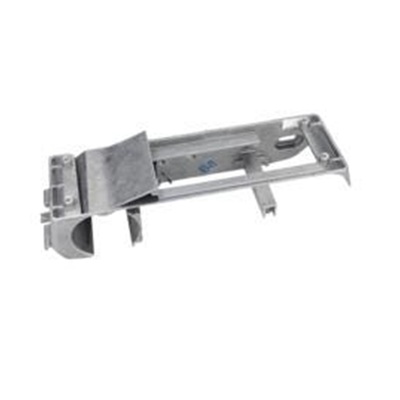

47	2601098040	Base Plate	1	4,840
48	2603410045	Socket head cap screw	2	1,650	품절
49	1605500122	Brush-Cover	1	3,740
50	2910011170	Socket head cap screw	4	1,430
51	2600301089	Sintered-Metal Bushing	2	2,860
52	1605807013	Bearing Bracket	1	5,500
53	1602098006	Tensioning Lever	1	1,980
54	1604619017	Compression Spring	1	1,650
55	2917030110	Button-Head Rivet	1	1,980
56	1600146001	Locking washer	2	1,430
60	2910021126	Socket head cap screw	1	1,210
61	2915011005	Hex Nut	1	1,210	품절
63	2600290033	Seal Ring	1	2,530	품절
66	1601010007	Ceramic Plate	1	1,980
67	1605133036	Handle	1	4,840
68	1604438018	Connecting Cable	1	1,430
69	1604448000	Connecting Cable	1	1,650
70	1605500120	Housing Cover	1	1,980	품절
71	1606610120	Fan	1	1,980	품절
72	2603300015	Hex Nut	1	1,210

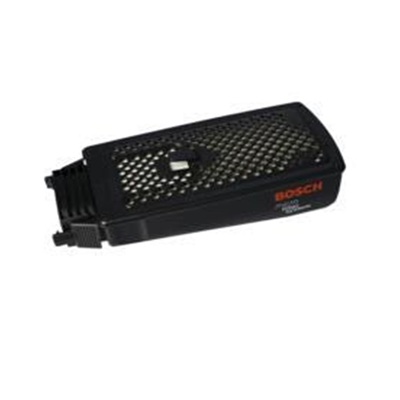

654	2605411129	Dust Chamber	1	8,800
655	2605702038	Fitting	1	3,080

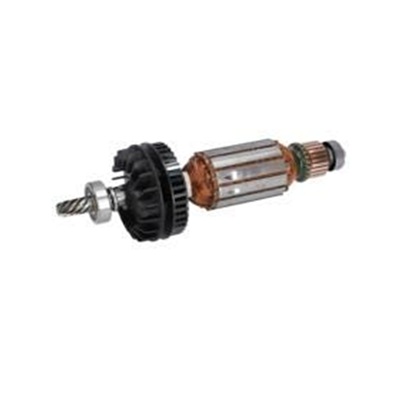

803	2604010935	Armature	1	49,720
810	2604321905	Carbon-Brush Set	1	6,930
814	1610905011	Groove ball bearing	1	9,900	품절
827	2606333900	Crown Gear	1	14,190
831	2606625907	Toothed Belt Wheel	1	2,200

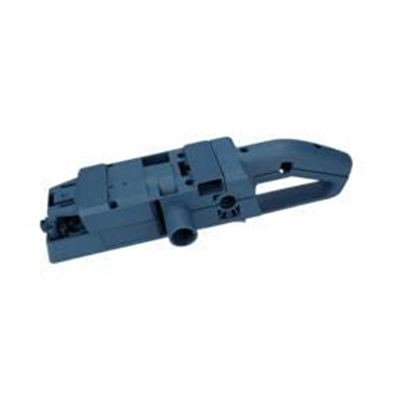

838	2605190900	Housing	1	40,480
843	2606625905	Roller	1	18,480
