보쉬 GBH36VF-LIPlus 분해도 (3611J07001)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 97개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	16051082G8	Housing Section	1	14,190

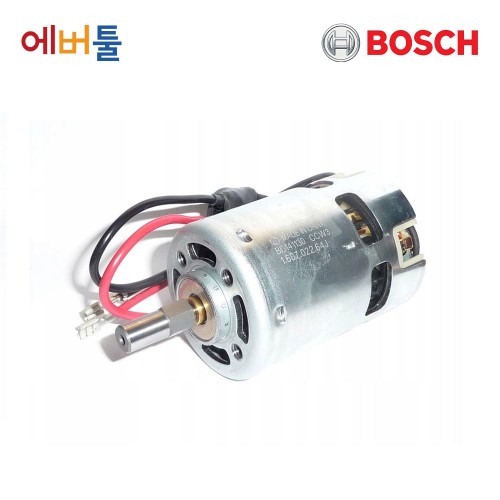

2	1607022672	DC motor	1	102,190

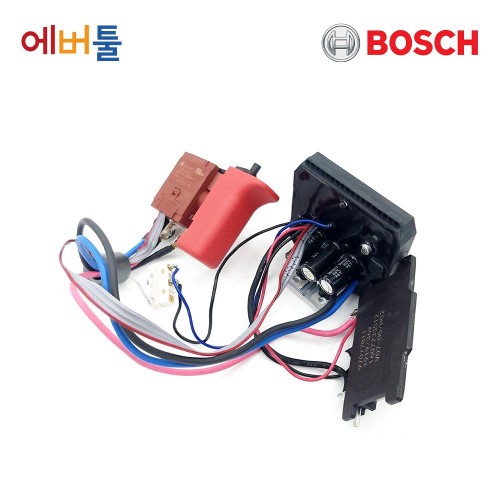

4	1600A00A4B	Electronics Module	1	73,480
4/4200	1609280A56	Contact retainer	1	8,800

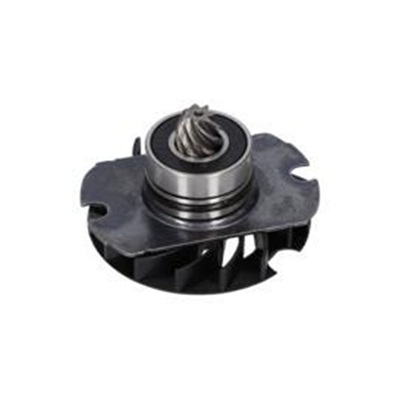

6	1617000A5F	Drive pinion	1	26,840
6/6	1616610157	Fan	1	3,080	품절
6/7	1600A01143	Drive pinion	1	12,430
6/14	1610905044	Groove ball bearing	1	5,500
6/47	1610283047	Rotary shaft lip seal	1	8,030
6/48/1	1610210208	O-Ring	1	1,430
6/48	1610290102	Bearing Ring	1	3,960
6/49	1615700044	End Shield	1	1,650
10	161111C025	Manufacturer's nameplate	1	1,980
11	161111C02G	Reference Plate	1	2,200
17	1600A001HK	Bearing Ring	1	1,650
18	1600A001FP	Motor Bearing	2	5,500
25/53	1610210245	O-Ring	1	2,200
26	16170006A5	Hammer Piston	1	30,140
26/27	1610311019	Striker	1	14,190
26/29	1600A01TD0	Piston Pin	1	2,860
26/56	1610210121	O-Ring	1	1,980
26/71	1610100016	Guide Disc	2	1,430
32	1612026151	Clamp Handle	1	9,900
32/324	1610210046	O-Ring	1	1,650
32/323	1612026035	Switch Button	1	1,430
32/325	1614611006	Compression Spring	1	2,530
32/322	1614690009	Driver Pin	1	2,530
406363	1600A001CN	Needle bearing	1	1,980
406364	1610390069	Bushing	1	1,650	품절
40/68	1610283036	Rotary shaft lip seal	1	4,840
45	1610591055	Air-Deflector Ring	1	1,430
55	1610210206	Seal Ring	1	3,740
66	1610202021	Plain bearing	1	1,980
74	160343000V	Torx Oval-Head Screw	4	1,210
75	2603490023	Torx Oval-Head Screw	9	1,210
76	2603490027	Torx Oval-Head Screw	4	1,210
78/1	1600A003TA	Shim	1	1,210
78/1	1600A004FU	Shim	1	1,210	품절
78/1	1600A004FV	Shim	2	1,210
79	1613435023	Thread-forming tap. Screw	2	1,210	품절
84	1600A001E5	Switch Slide	1	1,210
88	1600A001CM	Push-Button	1	1,430
89	1604612007	Compression Spring	1	1,650
90	1600A001E3	Lens	1	1,650
91	1601200006	Leaf Spring	1	1,210
92	1600A001ED	Control Element	1	1,650
93	1600A0022Y	Guide Piece	1	1,980
96	1614601046	Retaining ring	1	1,430
113	1616325002	Switching Panel	1	8,030

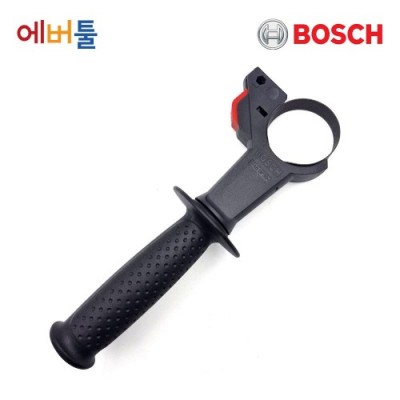

120	160202508Y	Auxiliary Handle	1	16,390
120120	160202507H	Auxiliary Handle	1	6,930
120124	1611316021	Clamping Band	1	2,200
120125	1613490001	T-Head Bolt	1	5,500
120802	1617000685	Support clamp	1	3,080
130	1616333049	Gear Sleeve	1	12,430
135	1614601067	Retaining ring	1	1,430
136	1610205017	Felt Disc	1	1,210
137	2916660012	Spring retaining ring	1	1,430
200	1600A001CL	Bellows	1	3,080
321	16170006BV	Toolholder	1	36,630
321/22	1616312004	Cylindrical Gear	1	8,030
321/28	1613124097	Striker Pin	1	16,390
321/33	1610590020	Holding Jacket	1	3,960
321/37	1613100019	Straight Pin	3	1,430
321/38	1600A008AG	Catch Disk	1	2,530
321/42	1610102084	Thrust Ring	1	5,500
321/46	1610390068	Guide Bushing	1	11,220
321/50	1614615008	Compression Spring	1	3,740
321/58	1610210105	O-Ring	2	2,860
321/59	1600A009VC	Shaft Seal	1	2,200
321/60	1610210209	O-Ring	1	1,430
321/72	1604601027	Retaining ring	1	1,210	품절
321/86	1614601034	Retaining ring	1	1,650
321/87	1604601028	Retaining ring	1	1,210
325203	1610508047	Protective Cap	1	1,650
390/89	1610499059	Guide Sleeve	1	2,860
390/90	1610590016	Collar Sleeve	1	2,860
390/91	1610200033	Backup ring	1	2,200
390/95	1614643016	Compression Spring	1	1,650
390/97	1614601047	Retaining ring	1	1,430
651	1613001009	Depth-Gauge	1	2,530

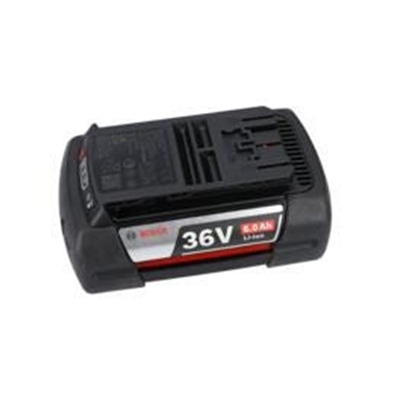

653	1607A350R2	Battery Pack	1	210,760
653	1607A350RC	Battery Pack	1	274,450

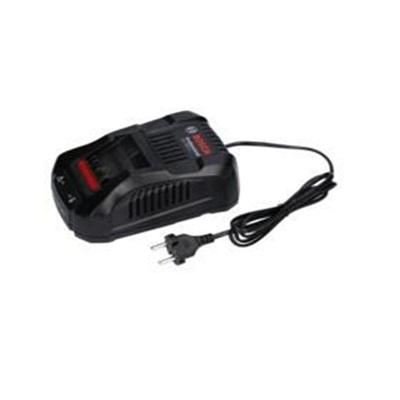

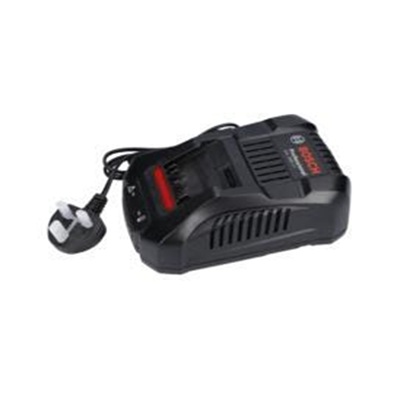

654	2607226457	Charger GAL3680CV	1	133,870	품절
654	2607226459	Charger	1	102,190	품절
654	2607226461	Charger	1	117,370	품절
654	2607226465	Charger	1	102,190
661	1615430010	Grease Tube	1	3,740
808	160111A92J	Nameplate	1	1,980	품절
820	1617000A5J	Intermediate Flange	1	24,200
821	16170006BU	Tool Holding Fixture	1	44,880
824	1617000A5K	Jack Shaft	1	49,720
825	1617000895	Tool Holding Fixture Tool Holding	1	33,110
828	16170006A7	Striker Pin	1	40,480
830	1617000698	Gear Sleeve	1	24,200

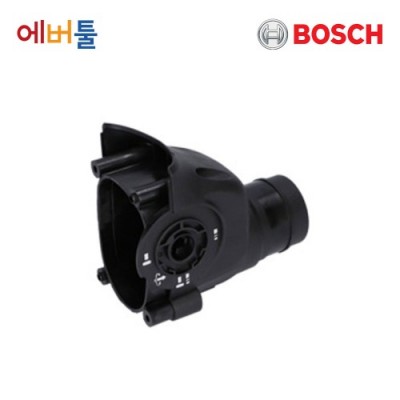

840	1617000699	Impact Mechanism Housing	1	21,450
890	1617000V41	Guide Sleeve	1	6,930
