보쉬 GTM12JL 분해도 (3601M15071)

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1

7 베어링 슬리브

266898-7

1,100

총 196개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0
이미지 항목번호 부품번호 부품명 소요량 판매가 장바구니 담기
1 1619PA4304 Motor Housing 1 18,480

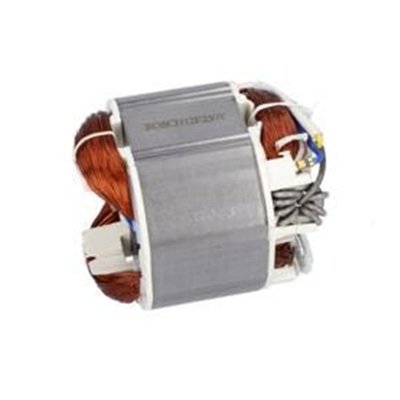

2 1619PA4305 Field 1 60,610

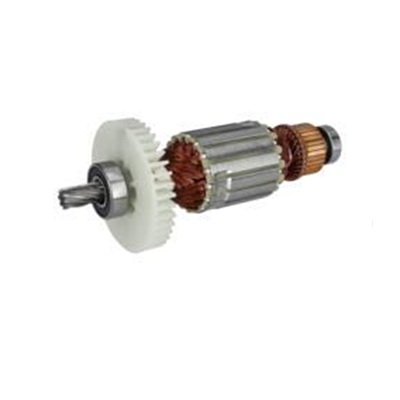

3 1619PA4307 Armature 1 54,670
4 1619PA4309 Switch 1 21,450
6 1619PA4314 Grommet 1 1,210
9 1619PA8129 Adapter Ring 1 1,210
12 1619PA4320 Condenser 1 1,210
13 1619PA4321 Ball Bearing 1 3,960
14 1619PA4322 Ball Bearing 1 4,840
15 1619PA6339 Cover 1 1,210
16 1619PA4323 Brush Holder 2 6,930
18 1619PA8128 Screw 2 1,210
19 1619PA4324 Thread-forming tap. Screw 4 1,210
20 1619PA8126 Adjustment washer 1 1,210
21 1619PA4325 Cover 1 4,840
23 1619PA4327 Connection 1 1,980
24 1619PA3393 Soft Start-Up Module 1 40,480
25 1619PA4328 Thread-forming tap. Screw 9 1,210
26 1619PA4329 Thread-forming tap. Screw 1 1,210

품절
27 1619PA4330 Box 1 8,800

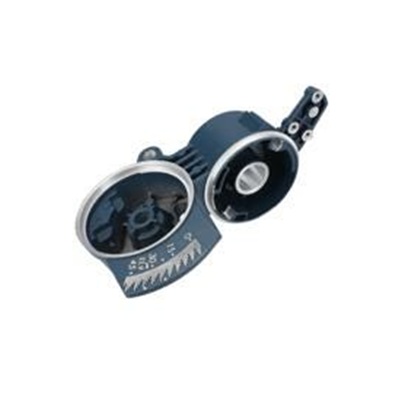

28 1619PA4331 Gear Housing 1 66,660
29 1619PA4332 Thread-forming tap. Screw 1 1,210
30 1619PA4333 Plate 1 1,980
32 1619PA4335 Thread-forming tap. Screw 2 1,210

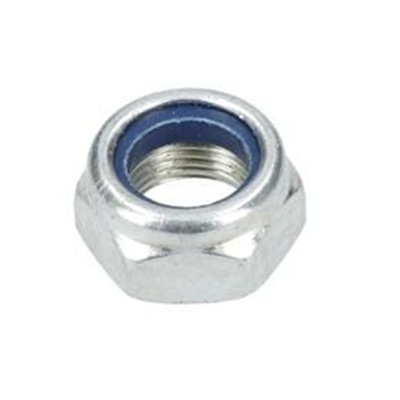

33 1619PA4336 Nut 2 1,210
34 1619PA4337 Washer 2 1,210
35 1619PA4338 Spring 2 1,210
36 1619PA4339 Thread-forming tap. Screw 1 1,210
46 1619PA4349 Thread-forming tap. Screw 1 1,430

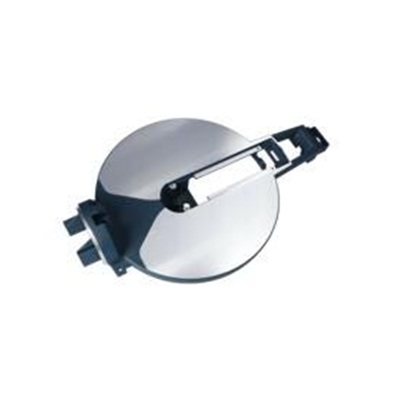

47 1619PA4350 Lower guard 1 6,930
48 1619PA4351 Flange 1 5,500
49 1619PA4352 Blade 1 82,610
50 1619PA4353 Flange 1 4,840
51 1619PA4354 Thread-forming tap. Screw 1 1,430
52 1619PA4355 Cover 1 21,450
53 1619PA4356 Thread-forming tap. Screw 2 1,210
54 1619PA4357 Cable Clip 1 1,210
55 1619PA8127 Adjustment washer 1 1,210

품절
57 1619PA4360 Box 1 9,900
58 1619PA4361 Cord guard 2 1,210
60 1619PA4363 Seal 1 1,210
61 1619PA4364 Thread-forming tap. Screw 1 1,210
63 1619PA4366 Washer 16 1,210
69 1619PA8121 Lamp 1 3,740
71 1619PA4373 Cover 1 1,210
72 1619PA4374 Cover 1 4,840
73 1619PA4375 Seal 1 1,210
74 1619PA4376 Thread-forming tap. Screw 4 1,210
75 1619PA4377 Knob 1 1,430
79 1619PA4381 Washer 12 1,210

품절
80 1619PA4382 Air-Deflector Ring 1 2,530
82 1619PA4384 Thread-forming tap. Screw 2 1,210
83 1619PA8122 Lens 1 1,430
84 1619PA4385 Washer 13 1,210
85 1619PA4386 Thread-forming tap. Screw 6 1,210

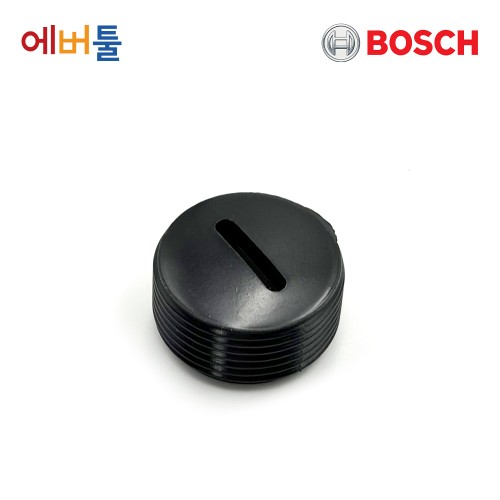

86 1619PA4387 Brush-Cover 2 1,210
88 1619PA4389 Housing 1 2,530
89 1619PA4390 Thread-forming tap. Screw 2 1,210
90 1619PA4391 Thread-forming tap. Screw 1 1,650
91 1619PA4392 Cover 1 8,030
92 1619PA4393 Handle 1 44,880
93 1619PA4394 Plate 1 1,210
94 1619PA4395 Thread-forming tap. Screw 1 1,210
95 1619PA4396 Thread-forming tap. Screw 1 1,210
96 1619PA4397 Thread-forming tap. Screw 1 2,530
97 1619PA4398 Thread-forming tap. Screw 2 1,210
98 1619PA4399 Thread-forming tap. Screw 1 1,210
99 1619PA4400 Thread-forming tap. Screw 3 1,210
100 1619PA4401 Handle 1 16,390
101 1619PA4402 Cover 1 1,210
102 1619P04129 Mains switch 2 6,930
103 1619PA4403 Thread-forming tap. Screw 3 1,210
105 1619PA4405 Thread-forming tap. Screw 30 1,210
106 1619PA4406 Washer 15 1,210
108 1619PA4408 Nut 23 1,210
110 1619PA4410 Thread-forming tap. Screw 4 1,210
111 1619PA4411 Plate 1 8,030
112 1619PA4412 Washer 15 1,210
115 1619PA4415 Thread-forming tap. Screw 2 1,210
116 1619PA4416 Shaft 1 3,080

품절
117 1619PA4417 Plate 1 12,430
119 1619PA4419 Pin 2 1,210
125 1619PA4425 Spring 2 1,650

품절
126 1619PA4426 Shaft 1 3,080

품절
131 1619PA4431 Nut 3 1,210

품절
132 1619PA4432 Lever 1 1,210
133 1619PA4433 Bolt 1 2,530
136 1619PA4436 Thread-forming tap. Screw 1 1,430
137 1619PA4437 Cover 1 1,430

품절
138 1619PA4438 Spring 1 1,650

품절
139 1619PA4439 Thread-forming tap. Screw 1 1,210
140 1619PA4440 Thread-forming tap. Screw 3 1,210
141 1619PA4441 Cover 1 5,500
142 1619PA4442 Thread-forming tap. Screw 1 1,210
143 1619PA4443 Ball Bearing 1 3,080
144 1619PA4444 Shaft 1 11,220
145 1619PA4445 Flat Key 1 1,210
146 1619PA4446 Retaining ring 1 1,210
147 1619PA4447 Gear 1 21,450
148 1619PA4448 Ball Bearing 1 3,960
153 1619PA4453 Cover 1 1,210
154 1619PA4454 Thread-forming tap. Screw 1 1,210

품절
155 1619PA4455 Knob 1 1,430

품절
156 1619PA4456 Spring 1 1,210
157 1619PA4457 Nut 1 1,210
158 1619PA4458 Bolt 1 1,650
159 1619PA4459 Washer 2 1,210
160 1619PA4460 Nut 1 1,430
162 1619PA4462 Knob 1 1,430
163 1619PA4463 O-Ring 1 1,210
164 1619PA4464 Pin 1 2,530
165 1619PA4465 Washer 1 1,210
166 1619PA4466 Nut 1 1,430
167 1619PA4467 Bolt 2 1,210
168 1619PA4468 Plate 1 3,960

품절
169 1619PA4469 Guard 1 6,930
171 1619PA4470 Bracket 1 49,720

품절
172 1619PA4471 Spring 1 21,450
173 1619PA4472 Bushing 1 2,860
174 1619PA4473 Shaft 1 5,500
175 1619PA4474 Slider 1 24,200
176 1619PA4475 Washer 6 1,210
177 1619PA4476 Bolt 2 1,210
178 1619PA4477 Bushing 1 1,210
179 1619PA4478 Dish 1 1,650
180 1619PA4479 Carrier 1 5,500

품절
181 1619PA4480 Washer 3 1,980
182 1619PA4481 Pointer 1 1,210
184 1619PA4483 Thread-forming tap. Screw 1 1,210
186 1619PA4485 Thread-forming tap. Screw 2 1,210
187 1619PA4167 Insert 1 2,530
189 1619PA4486 Knob 2 1,650
190 1619PA4487 Thread-forming tap. Screw 2 1,430
192 1619PA4489 Bolt 1 1,210
193 1619PA4490 Nut 1 1,210
194 1619PA4491 Table 1 73,480
195 1619PA4492 Plate 1 1,210
196 1619PA4493 Base 1 1,650
197 1619PA4494 Plate 1 1,210
199 1619PA4496 Thread-forming tap. Screw 1 1,210
201 1619PA4498 Knob 1 3,740
203 1619PA4500 Thread-forming tap. Screw 2 1,210
204 1619PA4501 Washer 6 1,210
205 1619PA4502 Label 2 1,210
206 1619PA4503 Base 1 117,370
207 1619PA4504 Plate 1 1,980
208 1619PA4505 Bolt 1 1,210
209 1619PA4506 Cushion 4 1,650
213 1619PA4510 Knob 1 1,430
217 1619PA4514 Plate 1 1,210
222 1619PA4519 Block 1 1,980
253 1619PA4549 Workpiece Pusher 1 6,380
265 1619PA4561 Spring 1 1,210
267 1619PA4563 Washer 1 1,210
268 1619PA4564 Thread-forming tap. Screw 2 1,210
270 1619PA4566 Washer 3 1,210
271 1619PA4567 Thread-forming tap. Screw 1 1,210
272 1619PA4568 Thread-forming tap. Screw 2 1,210
273 1619PA4569 Washer 1 1,210
275 1619PA4571 Cover 1 1,430
276 1619PA4572 Thread-forming tap. Screw 2 1,210
280 1619PA4576 Bushing 1 21,450
281 1619PA4577 O-Ring 1 1,210
285 1619PA4581 Seal 1 1,210
287 1619PA3508 Printed-Board Assembly 1 30,140
290 1619PA4585 Pin 1 1,430

품절
291 1619PA4586 Thread-forming tap. Screw 12 1,210

품절
292 1619PA4587 Knob 2 2,200
295 1619PA4590 Nut 5 1,210
296 1619PA4591 Thread-forming tap. Screw 2 1,210
297 1619PA4592 Washer 2 1,210

품절
298 1619PA8157 Screw 1 1,210
302 1619PA4765 Screened Electric Cable 1 4,840
305 1619PA4916 O-Ring 1 1,210
306 1619PA6340 Cable 1 1,430
308 2610911933 Connector 1 1,210

품절
309 1609902275 Fastening Clamp 4 1,210
328 1619PA9304 Bolt 1 1,210
653 1619PA4166 Clamp 1 12,430
654 1619PA4560 Dust Bag 1 4,840

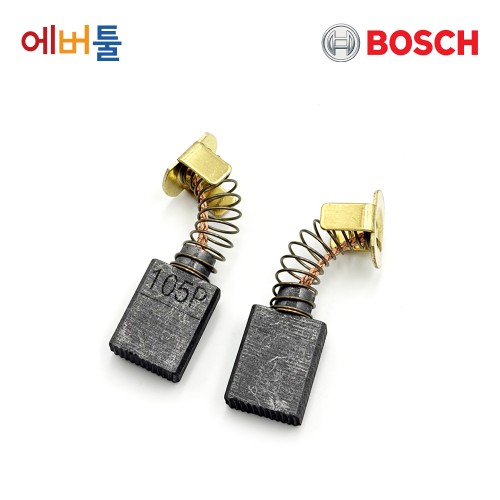

810 1619PA4631 Carbon Brush 1 11,220
811 1619PA4632 Lower guard 1 33,110
812 1619PA4633 Pin 1 8,030
813 1619PA4634 Table 1 73,480
814 1619PA4635 Laser 1 8,800
815 1619PA4636 Linkage 1 12,430
816 1619PA4637 Lower guard 1 11,220
817 1619PA4638 Light Unit 1 12,430
818 1619PA4639 Guide 1 82,610
819 1619PA4640 Linkage 1 4,840

품절
820 1619PA4762 Linkage 1 4,840

품절
821 1619PA5029 Button 1 2,530
822 1619PA8131 Cable 1 2,200
823 1619PA8132 Cable 1 1,980
826 1619PA9308 Guide 1 40,480
837 1619PA5970 Plate 1 3,740

목록에 없는 부품은 단종되었거나 제조사에서 공급하지 않는 부품입니다.
