보쉬 GKM18V-50 분해도 (3601FB80B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 57개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

2	2610034094	Screw	7	1,210
10	2610034144	Screw	4	1,210	품절

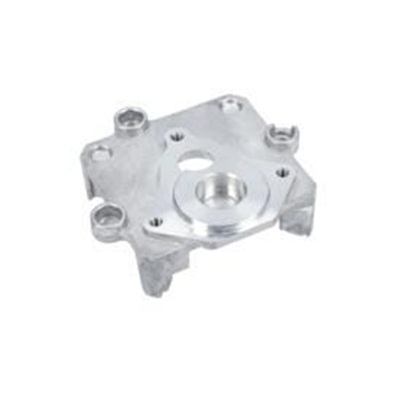

11	2610033566	Bearing Housing	1	6,930
12	2610034143	Gasket	1	1,210
13	2610034157	Compression Spring	1	1,210
14	2610034095	Knob	1	1,430
26	2610034145	Screw	1	1,210
27	2610033564	Bumper	1	1,430	품절
28	2610034140	Screw	1	1,210	품절
29	2610031712	Extension Spring	1	2,530
30	2610033580	Bushing	1	1,210
31	2610033559	Flap Guard	1	9,900	품절
32	2610034151	Plain Washer	1	1,210
33	2610034153	Retaining ring	1	1,210
34	2610033579	Seal	1	1,430	품절
35	2610033571	Intermediate Flange	1	2,200	품절
37	2610033572	Washer	1	1,980
38	2610033581	Locking Bolt	1	1,650
44	2610034142	Lens	1	1,210
45	2610034161	Hexagon Socket Wrench	1	1,210
48	2610035267	Ferrite	2	3,960
49	2610013564	Compression Spring	1	1,210	품절
50	2610034103	Torsion Spring	1	1,210
51	2610033560	Trigger	1	1,430
52	2610034156	Compression Spring	1	1,210
53	2610033561	Locking Lever	1	1,430	품절
54	2610033576	Baffle	1	1,430
55	2610033577	Baffle	1	1,430
56	2610034158	Screw	1	1,210
58	1619PB7084	Nameplate	1	1,980	품절
59	1619PB6970	Manufacturer's nameplate	1	1,980	품절
60	2610034146	Screw	8	1,210
61	2610034148	Locking Bolt	1	1,650
62	2610034147	Hex Nut	1	1,210
64	2610034141	Locking Bolt	1	1,430
65	2610034150	Washer	1	1,210	품절
66	2610033578	Fastening Rod	1	2,200
67	2610033563	Adjusting Lever	1	1,430
68	2610034159	Screw	1	1,210
70	1619PB6963	Upper guard	1	6,930	품절
71	1619PB6964	Upper guard	1	5,500	품절
72	1619PB6952	Window	1	1,980	품절
73	1619PB6966	Cover	1	3,080	품절
74	1619PB6951	Lid Lock	1	1,210	품절
75	1619PB6974	Screw	5	1,210	품절
77	1619PB4911	Electronics Module	1	21,450
79	1619PB6973	Washer	1	1,210	품절
80	2610036144	Product label	1	1,430	품절
81	1619PB7064	Shrinkable Tube	2	1,430	품절
91	2607337085	Battery Pack	1	188,650
201	2610034087	DC motor	1	152,240
202	2610034090	Gear	1	36,630	품절
203	2610034096	Assembly Hook	1	6,380
204	1619PB6972	Housing Assembly	1	16,390	품절
650	1619PA9720	Parallel-Guide	1	2,860
651	1619PA9719	Wing Screw	1	1,430	품절
653	2607226263	Fast Charger GAL18V-40	1	60,610
