보쉬 GKS18V-57-2 분해도 (3601FC12B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 56개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	1619P16879	Motor Housing	1	5,500
2	1619P16618	Stator	1	40,480
3	1619P16617	Rotor	1	30,140

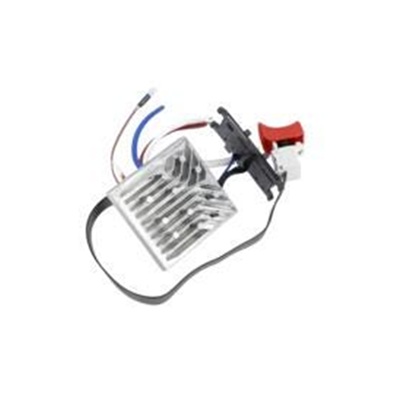

4	1619P16372	Electronic Module	1	73,480
22	1619P16880	Handle	1	9,900
23	1619P17004	Cover	1	1,210
24	1619P16881	Baffle	1	1,430
25	1619P16931	Set ring	1	1,210
34	1619P06225	Cap	1	1,210
37	1619PS0628	Suction Socket	1	3,960
38	1619P16906	Guide Bracket	1	1,980
39	1619P01642	Compression Spring	1	1,210
50	1619P16909	Inner Disc	1	2,200
51	1619P11884	Locking washer	1	3,080
52	1619P06232	Screw	1	1,650
54	1619P06238	Locking washer	1	1,210
57	1600210050	O-Ring	1	1,210
58	1619P16878	Lower guard	1	3,740
59	F000640007	O-Ring	1	1,210
60	1619P17216	Extension Spring	1	1,430	품절
61	1619P06236	Bumper	1	1,650
62	2610935251	Compression Spring	1	1,430
64	2600590006	Ratchet Cap	1	1,430
67	1619P09219	Shoulder Screw	1	1,210
68	2610924684	Jam Nut	1	1,430
69	1619P16883	Base Plate	1	18,480
70	2610001398	Adjusting Screw	4	1,210
71	1619P16912	Adjusting Bolt	1	1,650
72	2604690055	Compression Spring	1	1,210	품절
74	1619P02796	Retaining ring	1	1,210
75	1619P17175	Adjusting Nut	1	1,430
76	1619P17173	Lever	1	1,210
77	2916011014	Plain Washer	2	1,210
78	1619P09218	Round-Head Bolt	1	1,430
79	1619P16910	Switch Button	1	1,210
80	1619P16908	Lever	1	1,210
81	1619P16913	Scale	1	1,210
82	1619P16907	Adjustment rod	1	2,530
85	1619P01618	Wing Screw	1	1,210
87	2603490022	Screw	11	1,210
88	1619P17511	Label	1	1,210	품절
89	1619P16905	Bracket	1	1,980
90	1619P16884	Hinge Bracket	1	1,650
91	1619P16885	Bracket	1	2,200
92	1619P16903	Hinge	1	3,740
93	1613435015	Torx Oval-Head Screw	4	1,430
94	1619P06246	Screw	1	1,650
95	2610925864	Screw	3	1,210
96	1619P01931	Screw	3	1,210
97	1619P11431	Thread-forming tap. Screw	2	1,210
98	1619P16997	Scale	1	1,210	품절
651	2610364015	Hexagon Socket Screw Key	1	2,530
653	1619P16999	Mitre Fence	1	3,080
657	2607337085	Battery Pack	1	188,650
823	1619P17446	Upper guard	1	24,200
853	1619P17447	Bearing Flange	1	30,140
