보쉬 GKS18V-70L 분해도 (3601FB9000)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 51개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	16051082L2	Housing	1	24,200
4	160440001S	Cable	1	11,220
5	16072335NK	Electronics Module	1	66,660	품절
6	1600A025GS	Cover	2	1,650	품절
26	1619P06237	Flange Bushing	1	1,210
31	1600A01NS1	Protection cover	1	11,220
32	2610386516	Torx Oval-Head Screw	9	1,430
33	1600210041	O-Ring	1	1,980	품절
37	1600A0219K	Suction Socket	1	4,840
51	1600A01D0W	Locking washer	1	3,740
52	1600A01Z45	Screw	1	1,210
54	1619P06238	Locking washer	1	1,210
56	1600A024PD	Scale	1	1,210
58	1600A01VV1	Lower guard	1	16,390
60	1600A00XC9	Extension Spring	1	1,430
61	1619P06236	Bumper	1	1,650
62	160461202N	Compression Spring	1	1,210
64	1600A01VV2	Lever	1	1,650
67	1619P11929	Screw	1	1,650
68	2609003491	Hex Nut	1	1,210
72	1609280477	Compression Spring	1	1,430
73	1600A01BV3	Ratchet Cap	1	1,210
79	1600A01NS6	Safety Switch	1	1,430
80	1600A027XG	Lever	1	1,650
82	1600A01P78	Rod	1	3,740
84	2610957469	Hex Socket Head Cap Screw	1	1,210
85	1603480018	Wing Screw	1	1,650	품절
86	2609007156	Washer	1	1,210
87	2916080014	Locking washer	1	1,210
88	1600A01DD4	Corrugated Washer	1	1,210
91	2603490022	Screw	9	1,210
92	2914491413	Screw	1	1,210
94	1619P06246	Screw	1	1,650
97	1600A01VL3	Locking Lever	1	1,650
98	1600A01VL4	Screw	1	1,210
99	1600A01VL5	Hex Nut	1	1,430
101	160343003T	Screw	5	1,210
106	1600A014R6	Contact Plate	1	6,930
120	1600A028YL	Wafer	1	3,960
121	1600A000LE	Lens	1	1,430
137	1600A01S1S	Disc	4	1,210
138	1600100632	Shim	9	1,210
140	1600A024PE	Scale	1	1,210	품절
150	1600A021DZ	Cover	1	2,200	품절
620	2610364015	Hexagon Socket Screw Key	1	2,530
808	160111A8FV	Nameplate	1	1,980	품절
822	1607000DL5	Auxiliary Handle	1	16,390
853	1607000E5S	Drive Unit	1	133,870	품절
869	1607000E5T	Base Plate	1	133,870	품절

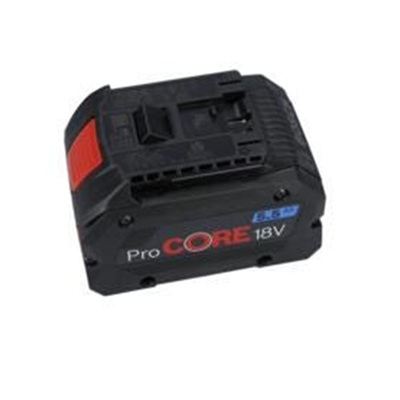

891	1607A350LR	Battery Pack	1	152,240
891	1617S019K0	Battery Pack	1	188,650	품절
