보쉬 GKT18V-52GC 분해도 (3601FB40B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 73개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

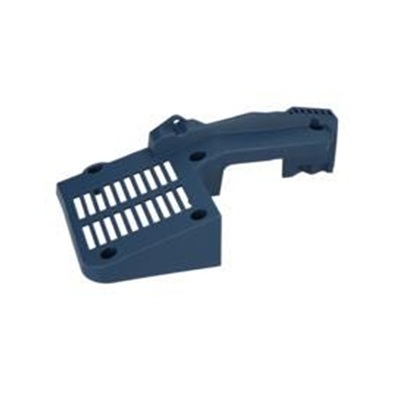

1/1	160580664R	Handle	1	21,450	품절
1/7	2602026200	Locking Slide	1	1,650
1/9	2602051004	Locking Lever	1	1,650
1/10	2602026201	Selector Switch	1	1,650
1/11	2602123010	Rocker	1	1,430
1/12	2603101070	Locking pin	1	1,430
1/17	2607202386	Switch	1	5,500
1/54	1600210094	O-Ring	1	1,210
1/55	1600A01UT1	Shim Plate	1	1,210
1/60	1600A019DG	Compression Spring	1	1,210
1/61	2604618015	Compression Spring	1	1,210
1/64	2604618014	Compression Spring	1	1,210
1/66	2603490022	Screw	3	1,210
1/67	2603490024	Torx Oval-Head Screw	7	1,430

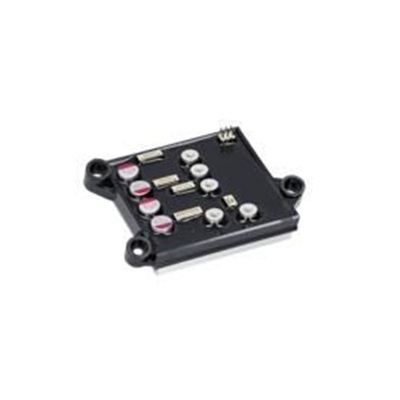

3	16072335F7	Electronic Module	1	82,610
4	1605132182	Housing Cover	1	2,200
5	1605132181	Housing Base	1	3,080
6	1600A015X0	Support	1	1,980
13	1600A015F8	Data cable	1	2,530
14	1600A013D8	Connecting Cable	1	2,860
15	1600A013D5	Connecting Cable	1	2,530
16	1600A0161F	Contact Plate	1	6,930
18	16072335GD	Electronic Module	1	24,200
19	1600A016CZ	Electronics Module	1	6,380	품절
20	1600A016ML	Cover Panel	1	1,210
22	1600A0135N	Cover	1	1,210

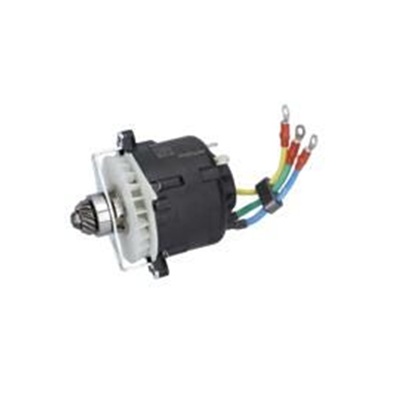

23/2	160702266Y	DC motor	1	91,850

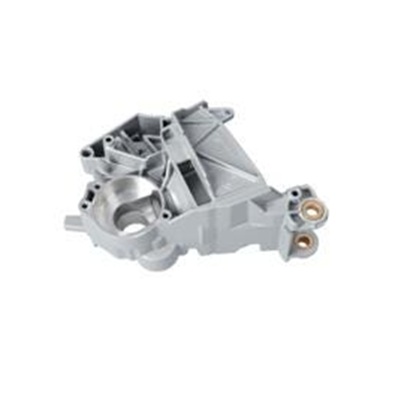

23/23	160580664W	Gear Housing	1	30,140
23/26	1600A01305	Rejection Slide	1	8,030
23/30	3600210136	O-Ring	1	1,210
23/31	1600A0131C	Shim	1	1,210
23/31	1600A019L6	Shim	2	1,210	품절
23/31	1600A019L7	Shim	1	1,210
23/31	1600A019L8	Shim	1	1,210
23/35	1600A0213M	Jack Shaft	1	26,840
23/37	1600A0213N	Output Shaft	1	30,140
23/70	1619X05274	Screw	4	1,210
23/71	2610386516	Torx Oval-Head Screw	1	1,430
23/91	2605719049	Clamping-Flange	1	3,740
23/92	2605719051	Clamping-Flange	1	4,840
23/94	1600A01H00	Socket head cap screw	1	1,210
29	1600A015MM	Shim	1	1,210	품절
34	2605510323	Protection cover	1	21,450
39	1603123067	Bearing bolt	1	3,960
40	160030011H	Bushing	1	1,650
41	2605730067	Suction Socket	1	2,530
42	160465101C	Coiled Spring	1	3,960
43	2601010079	Damper	1	1,210
44	2600460059	Depth gauge	1	8,030
45	1600A012ZA	Base Plate	1	40,480
46	2601073020	Cover	1	1,650
47	1600A018TN	Filling Piece	1	1,430
48	2605730068	Carrier	1	2,860	품절
49	1600A019N6	Angle Lever	1	3,960	품절
50	2610387875	Hex Nut	2	1,980
51	1600A012ZD	Carrier	1	2,530
52	2601010082	Setting Device	1	6,380
53	1600A012ZH	Setting Device	1	6,380
62	1609280477	Compression Spring	1	1,430
63	160461200R	Compression Spring	1	1,210
65	1600A018U8	Torsion Spring	1	1,210
68	2914491410	Thread-forming tap. Screw UM4x16-St	5	1,210
69	2603410051	Thread-forming tap. Screw	2	1,210
72	2603410048	Thread-forming tap. Screw	1	1,430
74	160343003T	Screw	5	1,210
78	2916660033	Spring retaining ring	1	1,210
79	2916011892	Plain Washer	4	1,210
80	2918660002	Washer	2	1,210
93	2610364015	Hexagon Socket Screw Key	1	2,530
95	160343509S	Torx Oval-Head Screw	11	1,210	품절
97	1600A013WF	Electronics Module	1	26,840
654	160541101V	Dust Bag	1	12,430
808	160111A801	Nameplate	1	1,980
