보쉬 GTS10XC 분해도 (3601M304B3)

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1

7 베어링 슬리브

266898-7

1,100

총 277개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0
이미지 항목번호 부품번호 부품명 소요량 판매가 장바구니 담기
1 1619PA5589 Motor Housing 1 14,190
2 2610016834 Field 1 91,850
3 2610016833 Armature 1 82,610

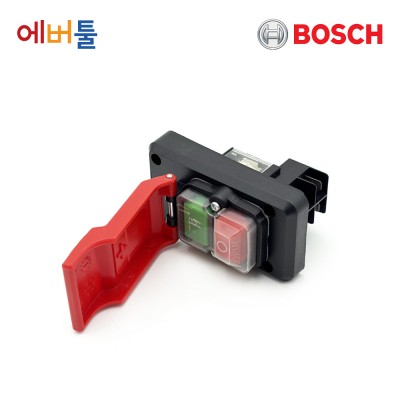

4 2610018210 On-Off Switch 1 44,880
5 1619PA9119 Power supply cord 1 30,140

품절
6 2610915699 Rubber Bushing 1 4,840

품절
7 2610358842 Clamp 1 1,430

품절
9 2610018213 Label 1 1,980

품절
12 2610018216 Suppression Filter 1 14,190

품절
13 2610004595 Ball Bearing 1 8,030

품절
14 2610911927 Ball Bearing 1 18,480

품절
18 2610018217 Screw 4 1,210

품절
19 2610358844 Screw 2 1,430
22 2610996913 Pin 2 2,860

품절
23 2610996917 Plate 2 1,430
24 2610997274 Pin 2 1,210
25 2610937292 Guide Pin 1 1,430

품절
27 2610996912 Fixing Plate 2 3,740
28 1600A00724 Mounting Rail 2 1,650
29 2610950075 Mounting Rail 1 5,500
30 2610303029 Screw 8 1,210

품절
31 2610018218 Handle Cover 1 2,530
32 2610018219 Handle Cover 1 2,530
33 2610018580 Screw 20 1,210

품절
34 2610950126 Mounting Bracket 1 5,500
35 2610950070 Bushing 1 1,210

품절
36 2610950127 Mounting Bracket 1 6,930
37 2610998575 Screw 4 1,210
38 2610018220 Holding Plate 1 40,480

품절
39 2610950052 Guiding bolt 2 4,840
40 2610992380 Spring retaining ring 4 1,210
41 2610018221 Threaded Rod 1 9,900
42 2610996896 Toothed Gear 2 3,740
43 2610910796 Bolt 2 1,650

품절
44 2610358149 Nut 2 1,210

품절
45 2610018223 Plain Washer 1 1,210
46 2610018224 Shaft 1 8,030

품절
47 2610997212 Mounting Bracket 1 2,200

품절
48 2610297323 Screw 3 1,210

품절
49 1619PA5649 Bushing 1 1,430

품절
50 2610997277 Spring retaining ring 1 1,210
51 2610997276 Spring retaining ring 1 1,210

품절
52 2610996938 Bushing 1 5,500

품절
53 2610996933 Threaded Bushing 1 9,900
54 2610303026 Screw 2 1,210

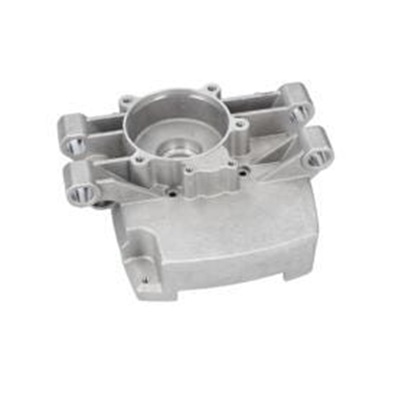

55 2610018225 Gear Housing 1 44,880

품절
57 2610018226 Baffle 1 2,860

품절
63 1609902054 Set screw 2 1,210

품절
65 2610911569 Insert 2 1,980

품절
66 2610356706 Nut 2 1,980

품절
67 2610911929 Screw 2 1,210

품절
68 2610996948 Rubber Ring 1 1,430

품절
69 2610358932 Connector 2 1,430

품절
70 2610018227 Cover 1 6,380

품절
71 1609203K96 Cable Clip 2 1,210
72 2610017110 Washer 1 1,650

품절
73 2610998571 Screw 3 1,210

품절
74 2610018228 Support bracket 1 1,430
76 1609902050 Cable Strap 2 1,210
77 2610998587 Screw 4 1,210

품절
81 2610911924 Spring Washer 1 2,530
82 2610018231 Shaft 1 14,190

품절
83 2610997210 Ball Bearing 1 9,900

품절
84 2610997282 Spring retaining ring 1 1,210

품절
85 1600A024EU Bearing Block 1 12,430
86 2610996949 Ball Bearing 1 9,900

품절
87 2610993102 Woodruff Key 1 1,650

품절
88 2610997208 Toothed Gear 1 30,140

품절
89 2610997281 Spring retaining ring 1 1,210

품절
90 2610996932 Bearing Sleeve 2 1,980

품절
91 2610355923 Screw 1 1,210
92 2610996875 Torsion Spring 1 1,430

품절
93 2610996874 Locking Lever 1 6,930

품절
94 2610996876 Shoulder Screw 1 1,430
95 2610998588 Screw 1 1,430

품절
96 2610018233 Bushing 1 4,840

품절
97 2610998573 Spring retaining ring 1 1,210

품절
98 2610015359 Screw 2 1,210
99 2610018230 Screw 4 1,210

품절
100 2610328617 Screw 11 1,210
102 2610018234 Cover Plate 1 3,960

품절
103 2610018235 End stop 1 1,430
104 2610018236 Holding Spring 1 2,530

품절
105 2610018237 Screw 1 1,210
106 2610018238 Front Panel 1 24,200

품절
107 2610950118 Screw 1 1,210
108 2610018239 End stop 2 1,430
109 2610018599 Screw 2 1,210
110 2610997271 Spring 1 1,430
111 2610998550 Plain Washer 2 1,430
112 2610997299 Plain Washer 1 1,430
113 2610997298 Nut 1 3,080

품절
115 2610950129 Plain Washer 1 1,210
116 2610341465 Washer 2 1,650

품절
117 2610950115 Spring 2 1,210

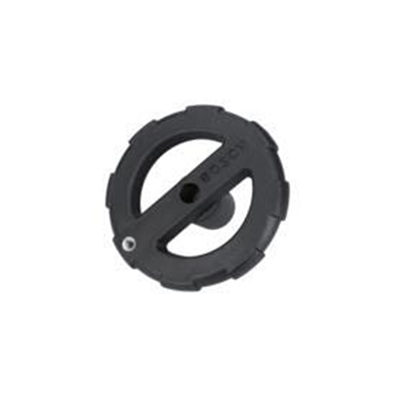

118 2610950057 Handwheel 1 9,900
121 2610950059 Handle 2 1,210
122 2610997270 Shoulder Screw 1 1,650
123 2610355325 Spring Washer 1 1,210

품절
124 1609902669 Set screw 1 1,210

품절
125 1609203L56 Clamping Flange 1 8,030
127 2610950046 Clamping Flange 1 8,030
128 2610358858 Nut 1 1,980

품절
129 2610018241 Cover Plate 1 12,430

품절
130 2610018242 Cover Plate 1 8,800
131 2610018243 Screw 1 1,210

품절
132 2610358869 Retaining snap ring 1 1,430

품절
134 2610937291 Mounting Bracket 2 2,200

품절
135 2610018244 Linkage 1 8,800
136 2610937293 Retaining ring 4 1,210

품절
137 1619P03473 Washer 2 1,210
138 2610018245 Clamping Lever 1 8,030

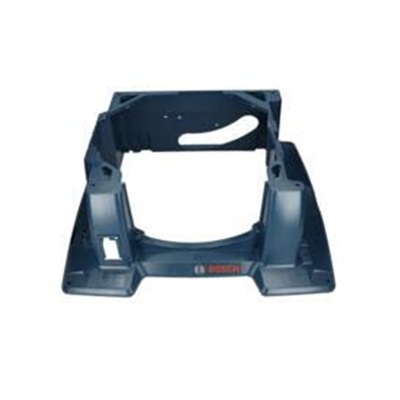

139 2610018246 Housing 1 91,850

품절
140 2610018247 Clamp 2 1,980
141 2610998574 Screw 2 1,210
142 2610996930 Pickup Clip 2 1,980
143 2610910047 Screw 8 1,210
144 2610018248 Screw 1 1,650
145 2610018249 Nut 1 1,650
146 2610018250 Holding Spring 1 1,650

품절
147 2610018251 Holding Spring 1 2,530
148 2610018252 Company Logo 1 3,960
150 2610018254 Hexagon Socket Screw Key 1 2,860
151 2610911920 Rubber Bushing 1 1,210
156 2610990504 Cable Clip 2 1,210
157 2610018255 Mounting Bracket 1 1,650

품절
158 2610018256 Holding Spring 1 1,980
159 2610018257 Suction Socket 1 3,960
160 2610018258 Chain 1 1,210
161 2610018259 Clip 2 1,210
162 2610016560 Stud bolt 2 1,210
164 1609B06851 Screw 3 1,210
164 2610018262 Pin 1 1,210

품절
166 1609203L06 Knob 2 2,530
166 2610018263 Plain Washer 2 1,210
167 2610018264 Washer 2 1,210
168 1609203L09 Guard Plate 1 6,380

품절
169 2610018265 Screw 1 1,210
170 1609902052 Spring Washer 1 1,210
171 1609902053 Plain Washer 1 1,210
172 1609203L10 Plain Washer 5 1,210
173 1609203L11 Nut 1 1,430
174 2610018266 Sleeve 1 1,210
175 2610997297 Screw 4 1,210
176 2610355570 Washer 2 2,530
178 2610018267 Switch Cover 1 5,500

품절
180 2610018268 Housing 1 30,140

품절
181 1609902684 Hex Nut 2 1,210
182 2610018269 Guard Plate 1 21,450

품절
183 2610018270 Retaining ring 2 1,210
184 2610018271 Screw 2 1,650
185 2610018272 Rubber Bushing 2 1,980

품절
186 2610358846 Rubber Bushing 2 1,430

품절
187 2610018275 Profile Rail 1 49,720
188 2610018276 End stop 1 1,430

품절
189 2610950133 Screw 2 1,210

품절
190 2610950135 Washer 2 1,210
191 2610950134 Bolt 2 1,210
192 2610018277 Stamped Part 1 1,650

품절
193 2610018278 Screw 2 1,210

품절
194 2610018279 Profile Rail 1 40,480
195 2610997218 Cover 1 1,210

품절
196 2610997216 Cover 1 1,210

품절
197 2610018280 Table top 1 82,610

품절
198 2610950086 Mounting plate 2 3,080

품절
201 2610018283 Screw 4 1,210

품절
202 2610950087 Screw 4 1,210

품절
203 1609902042 Washer 4 1,430
204 2610304772 Nut 4 1,430

품절
205 2610950121 End stop 1 2,200
206 2610018284 End stop 1 1,980
207 2610018285 Sticker 1 1,980
208 2610950078 Pointer 1 2,530
210 2610018286 Table top 1 82,610

품절
211 2610320339 Screw 1 1,210
213 2610018287 Slide Rail 2 6,380

품절
213 2610018288 Slide Rail 2 6,380

품절
213 2610018384 Connecting Cable 1 1,650

품절
214 2610014697 Screw 12 1,210

품절
215 2610018289 Bushing 1 1,210
216 2610950062 Pointer 1 1,980

품절
217 2610355278 Screw 1 3,080

품절
234 2610018290 Fixing Plate 1 21,450
235 2610011716 Holding Spring 1 1,210

품절
236 2610997283 Stud 4 1,210
237 1609902055 Screw 1 1,210

품절
238 2610018291 Sliding Rail 2 18,480

품절
239 2610996944 Guide Bracket 2 9,900

품절
240 2610018292 Spring retaining ring 4 1,210

품절
241 2610998585 Knob 2 1,650
243 2610018294 Clamping Plate 1 1,650
244 2610997249 Shoulder Screw 2 1,210
245 2610950102 Bracket 1 2,860
246 2610950143 Lens 1 1,980
247 2610951946 Screw 1 1,210
248 2610018295 Clamping Plate 1 2,530
249 2610997240 Clamping Piece 1 1,650
250 2610997245 Adjusting Screw 1 1,980
251 2610950098 Clamping Plate 1 1,980
255 2610997289 Pin 1 1,210
256 2610950095 Housing 1 16,390

품절
257 2610950094 Handle Cover 1 3,960
258 2610950096 Bolt 1 1,210
259 2610950097 Bolt 1 1,650
260 2610018296 Cover 1 1,650
261 2610967422 Screw 4 1,210
262 2610018297 Edge Guide 1 49,720

품절
263 2610303023 Screw 4 1,210
264 2610358802 Washer 4 1,430
265 2610018298 Bracket 1 3,960

품절
266 2610911577 Retaining Pin 1 1,430
267 2610996888 Spring 1 1,430
268 2610950107 Edge Guide 1 11,220

품절
269 2610018299 Cover 1 1,210
270 2610997293 Screw 2 1,210
271 2610998593 Spring 1 1,210
272 2610018300 Washer 2 1,210
273 2610018301 End stop 1 16,390
274 2610996880 Box Wrench 1 3,080
275 2610018302 Insert 1 12,430

품절
276 2610018303 Nut 1 1,430

품절
277 2610015022 Workpiece Pusher 1 3,960
280 1609203L00 Sticker 1 1,430

품절
281 2610018304 Table top 1 24,200
282 2610029674 Washer 2 1,430
284 1609203L38 End stop 1 30,140

품절
285 2610018307 Guide Bar 1 12,430
286 2610018308 Clamp Handle 1 8,800

품절
288 2610909178 Plain Washer 1 1,210

품절
289 2610018309 Pointer 1 1,430
290 2610997215 End stop 1 1,430
291 2610358519 Screw 3 1,210
292 2610908272 Nut 3 1,210
294 2610997213 Base Support 1 2,200
295 2610358832 Screw 3 1,430
296 2610015065 Screw 1 1,210
297 1609203L08 Bolt 1 1,430
298 1609203L04 Clamping Plate 3 1,650

품절
299 1609902047 Round Nut 1 1,980
300 2610993221 Plain Washer 1 1,210
301 1609203L07 Profile Rail 1 14,190

품절
302 2610018313 Knob 1 1,980
303 2610018315 Table top 1 210,760

품절
304 2610018316 Profile Rail 1 30,140

품절
305 2610018317 Screw 1 1,210
306 2610018318 End stop 1 1,210
307 2610018319 Screw 1 1,210
308 2610018320 Mounting Bracket 1 2,530
309 2610018321 Clamping Lever 1 2,860

품절
310 2610018322 Spring 1 1,210
311 2610018323 Pin 1 1,210

품절
312 2610018324 Locking Pin 1 1,650

품절
313 2610018325 Axle 1 1,210

품절
314 2610018326 Spring retaining ring 1 1,210

품절
315 2610018327 Screw 1 1,210

품절
316 2610996921 Holding Bracket 4 1,430
317 2610908271 Tapping Screw 12 1,430
319 2610996918 Set screw 1 1,650
320 2610997275 Pin 2 1,210
321 2610996920 Connecting Nut 1 3,740

품절
322 2610018567 Bracket 1 3,080
323 2610996915 Clamping Piece 1 6,930
324 2610018350 Plain Washer 1 1,210
325 2610028342 Cap Nut 1 1,430
326 2610998567 Cable Clip 1 1,210

품절
327 2610015078 Screw 2 1,210

품절
358 1619PA9309 Shrinkable Tube 2 1,210

품절
801 1600A01R18 Protective Cover 1 21,450
802 2610018329 Edge Guide 1 117,370

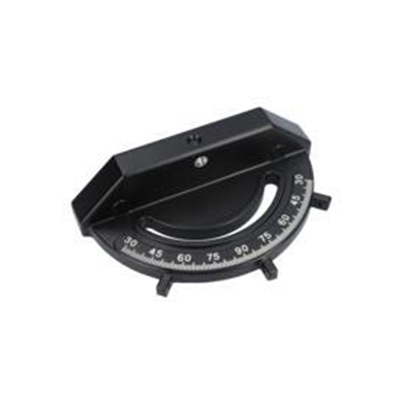

803 2610015508 Mitre Fence 1 49,720

품절
804 1600A01D8L Riving Knife 1 24,200
810 2610018332 Carbon-Brush Set 1 16,390
814 1609B06826 Clamping Lever 1 2,860

품절
816 1609B07133 Brush holder assembly 2 6,380

품절
820 2610018333 Clamp Handle 1 54,670
821 2610018334 Rod 1 6,380
822 2610018335 Locking clamps 1 18,480

목록에 없는 부품은 단종되었거나 제조사에서 공급하지 않는 부품입니다.
