보쉬 GPO12CE 분해도 (3601C890B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 55개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	1605108255	Motor Housing	1	11,220
4	1607200257	Switch Assembly	1	21,450	품절
4/56	1603415004	Lens Head Screw	2	1,430	품절
7	2601035001	Cable Clip	1	1,430
9	1619PS5336	Manufacturer's nameplate	1	2,860	품절
13	2600905032	Ball Bearing	1	3,080
14	1600905032	Groove ball bearing	3	3,740
16	1601323023	Brush Holder	2	2,530	품절
17	1604652013	Spiral Spring	2	1,430
18	1619P09274	Switch Button	1	1,650	품절
19	1604611041	Compression Spring	1	1,430	품절
20	3604611039	Compression Spring	1	1,430	품절
22	1619P07907	Plastic covering	1	2,200	품절
25	1600A01N0J	Handle	1	8,800
26	1600206036	Rubber Ring	1	1,430	품절
27	1600206025	Rubber Ring	1	1,650
29	1600591025	Air-Deflector Ring	1	1,980	품절
30	1600591014	Air-Deflector Ring	1	1,980	품절
32	1619P07906	Grinding Spindle	1	12,430
33	1600210035	O-Ring	1	1,430
37	1600290016	Rotary shaft lip seal	1	1,980	품절
38	1619P07918	Crown Gear	1	30,140	품절
39	1619P07919	Bevel Gear	1	21,450	품절
40	1600119011	Retaining clip	1	1,650
41	1619P08829	Groove ball bearing	1	3,960
42	1619P07912	Cylindrical Gear	1	18,480
43	1619P07911	Cylindrical Gear	1	18,480
45	1619P17544	Hex Nut	1	1,210
47	1619P00029	Screw	2	1,210
48	2912401005	Tapping Screw	2	1,210	품절
49	1619P08825	Thread-forming tap. Screw	9	1,210
50	1619P00105	Torx Oval-Head Screw	3	1,430	품절
53	1619P01066	Torx Oval-Head Screw	4	1,210
58	1619P07915	O-Ring	1	1,210
108	1605500258	Cover	1	1,980
109	1605500263	Cover	1	2,860	품절
802	1604220417	Field	1	24,200	품절
803	1619P09115	Armature With Fan	1	54,670	품절

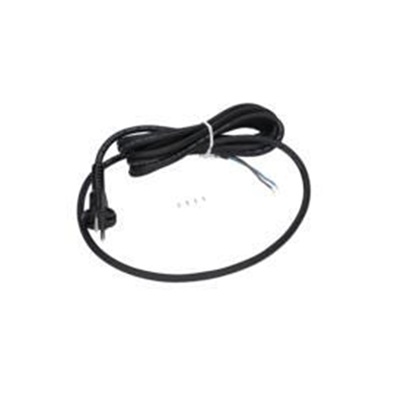

805	1607000391	Power supply cord	1	12,430
810	1607014176	Carbon-Brush Set	1	8,800
813	1607000378	Parts Set	1	3,960
821	1619P09078	Gear Housing	1	40,480
828	1619P09081	Bearing Flange	1	24,200
835	1616B00064	Fan	1	1,650	품절
838	1619P09080	Crown Gear	1	44,880
840	1619P09082	Push button set	1	1,650
851	1607233256	Speed governor	1	82,610
852	1604448025	Connecting Cable	1	1,650	품절
857	1619P09079	Gear Cover	1	12,430
890	1619P07563	Handle	1	18,480
891	160202509T	Auxiliary Handle	1	2,530	품절
893	1605430003	Grease Tube	1	26,840
894	1615430020	Grease Tube	1	14,190
895	1619P07614	Socket-Outlet Adaptor	1	2,860
898	1619P07611	Hex Screw	1	2,530
