보쉬 GFF18V-22 분해도 (3601F201B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 72개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	1619P15044	Motor Housing	1	6,930
2	1600A01A6N	Stator	1	21,450
3	1600A01A6S	Rotor	1	24,200
5	1619P15054	Fan	1	1,430
9	160111C5ET	Manufacturer's nameplate	1	1,980	품절
10	1600A02LT3	Face milling cutter	1	60,610
10/129	1600A02LP5	Round-Head Bolt	1	1,210
10/130	1600A02LM8	Frame	1	18,480
10/131	1600A02LN7	Straight Pin	2	1,980
10/132	1610210043	O-Ring	2	1,430
10/133	1600A02LP9	Extension Spring	2	2,860
10/134	160461205E	Compression Spring	2	1,210
10/135	1600A02LN8	Ball	2	1,210
10/136	1600A02LP4	Shim ring	2	1,210
10/137	1600A02LN9	Hex Nut	2	1,430
10/138	1600A02LP0	Tensioning Lever	2	1,430
10/139	1600A02LP6	Oval-Head Screw	2	1,430
10/140	1600A02LN4	Rubber stop	1	1,210
10/141	1600150047	Spring retaining ring	3	1,210
10/142	1600A02LN0	Housing Base	1	24,200
10/146	1600A02LP1	Sealing washer	1	1,430
10/147	1600A02LP2	Screw Plug	1	2,200
10/148	16002100B9	O-Ring	1	1,210
10/149	1600A02LN5	Vacuum Connection	1	1,430
10/158	1600A02LM9	Upper Housing	1	26,840
10/159	160341001U	Socket head cap screw	1	1,430
10/160	1600A02LN6	Depth-Gauge	1	6,930
10/181	16034350A8	Hex Screw	1	1,210
10/182	1600A02LN1	Workpiece stop	1	16,390
10/183	1600A02LP3	Knurled Thumbscrew	1	1,210
10/184	160120000N	Leaf Spring	1	1,210
10/185	160630001N	Toothed Gear	1	1,430
10/188	1600A02LN2	Clamping Piece	1	1,210
10/192	1600100631	Shim	1	1,430
11	1600A02LT4	Intermediate Flange	1	21,450
11/166	1600A02LM5	Stop Screw	1	1,210
11/173	1600A02LM6	Hex Nut	1	1,210

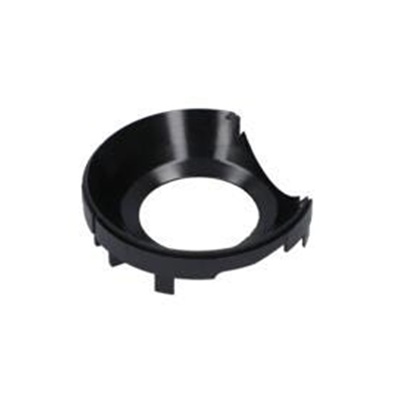

14	1600591065	Air-Deflector Ring	1	1,980
15	1600206025	Rubber Ring	1	1,650
18	1619P15338	Switch Handle	1	1,430
20	1619P15050	Adjusting Slide	1	1,210
29	1619P02820	O-Ring	1	1,430
32	1600A02N5H	Spindle	1	4,840
38	1619P15331	Crown Gear	1	6,380
41	1600200029	Plain bearing	1	2,860
46	1609280477	Compression Spring	1	1,430
48	3603435055	Torx Oval-Head Screw	4	1,980
49	2914491410	Thread-forming tap. Screw UM4x16-St	2	1,210
50	2609110201	Torx Flat-Head Screw	6	1,650

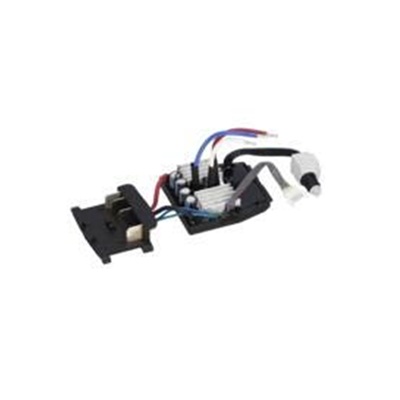

51	1600A01NC3	Electronics Module	1	60,610
60	1619P15795	Reverse-Transfer Lever	1	1,210

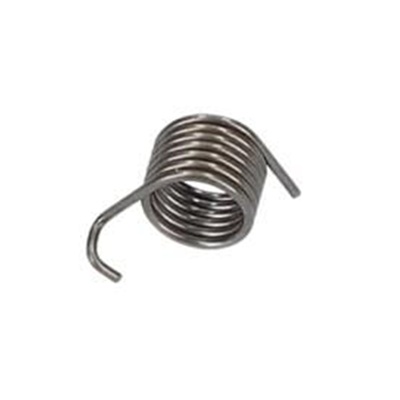

61	1619P15806	Torsion Spring	1	1,210
90	2603490024	Torx Oval-Head Screw	4	1,430
119	1619P07611	Hex Screw	2	2,530
120	16051321AE	Handle	1	5,500
128	1600A02LP7	Straight Pin	2	2,200
143	1600A027JS	Round Nut	1	2,860
144	1600A02LR2	Spacer Sleeve	1	2,200	품절
145	3605700154	Clamping-Flange	1	12,430
175	2610924685	Adjusting Screw	2	1,210
176	1600A02LR0	Cover	1	2,530
198	160111C5CS	Sticker	1	1,980	품절
199	160111C5CT	Sticker	1	2,530	품절
351	1619P02821	Shim	1	1,210
352	1619P02822	Shim	1	1,430
657	1600A02LR1	Intermediate Plate	1	1,980
658	1600A02UW6	Dust Bag	1	3,080
659	1607950052	N-Type Face-Wrench	1	2,530	품절
808	160111AD38	Nameplate	1	1,980	품절

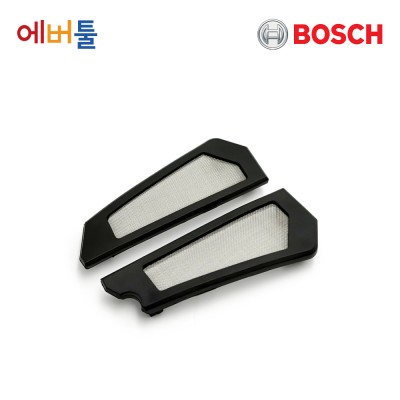

884	1607000CA9	Filter Unit	1	6,930
894	1615430020	Grease Tube	1	14,190
895	1605430003	Grease Tube	1	26,840
