보쉬 GBH36VF-LI 분해도 (3611J01R00)

제품이미지

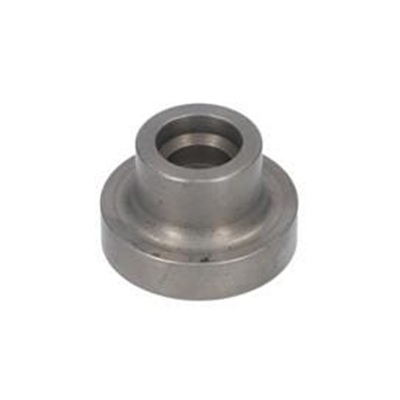

7 베어링 슬리브

266898-7

1,100

총 92개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

2	2610942109	Pole housing	1	16,390
13	2600905052	Groove ball bearing	1	4,840
17	1614652006	Spiral Spring	2	2,530
18	2603100056	Damping rubber	1	1,430
24	16170006EJ	Toothed Shaft	1	18,480
26	1600A01U34	Hammer Piston	1	14,190
26/27	1610311018	Striker	1	12,430
26/29	1613105012	Piston Pin	1	2,530
26/56	1610210187	O-Ring	1	1,650
26/71	1610101011	Shim washer	2	1,430
30	1600A01U33	Drive bearing	1	14,190
30/35	1610202024	Plain bearing	1	3,080
31	1610913016	Needle-Roller Assembly	1	2,530
32	1612026037	Clamp Handle	1	6,380
32/46	1614690002	Driver Pin	1	1,430
32/49	1612026035	Switch Button	1	1,430
32/76	1610210046	O-Ring	1	1,650
32/83	1614611006	Compression Spring	1	2,530
36	1611016003	Holding Plate	1	1,650
45	1601010058	Insulating Plate	2	3,740
55	1610290226	Seal Ring	1	2,530
57	1610210068	O-Ring	1	1,430
64/1	1610190060	Supporting Disc	1	1,650
66	1610202021	Plain bearing	1	1,980
76	160343000A	Thread-forming tap. Screw	4	1,210
77	1610290043	Locating Ring	1	1,650
79	1613435023	Thread-forming tap. Screw	2	1,210	품절
80	1610290084	Locating Ring	1	3,960
84	1613231017	Switch Slide	1	1,430
96	1614601046	Retaining ring	1	1,430
106	1614611022	Plain bearing	1	1,980
106105	1614611021	Compression Spring	1	1,430
189	1614610015	Compression Spring	1	2,860
190	2603490017	Torx Oval-Head Screw	2	1,650
191	2603490023	Torx Oval-Head Screw	10	1,210
321/22	1616312004	Cylindrical Gear	1	8,030
321/28	1613124082	Striker Pin	1	8,800
321/37	1613100019	Straight Pin	3	1,430
321/38	1600A008AG	Catch Disk	1	2,530
321/42	1610290099	Thrust Ring	1	3,080	품절
321/46	1610390066	Guide Bushing	1	8,030	품절
321/50	1614611020	Compression Spring	1	2,200
321/58	1610210178	O-Ring	1	1,430
321/59	1600A009VC	Shaft Seal	1	2,200
321/60	1610210176	O-Ring	1	1,210
321/72	1604601027	Retaining ring	1	1,210	품절
321/82	1614601034	Retaining ring	1	1,650
321/83	1604601028	Retaining ring	1	1,210
356217	2603421229	Countersunk-Head Screw	1	1,430
390/90	1610590016	Collar Sleeve	1	2,860
390/91	1610200033	Backup ring	1	2,200
390/95	1614643016	Compression Spring	1	1,650
390/97	1614601047	Retaining ring	1	1,430
650	160202508X	Auxiliary Handle	1	12,430	품절
650120	160202507H	Auxiliary Handle	1	6,930
650124	1611316021	Clamping Band	1	2,200
650125	1613490002	T-Head Bolt	1	2,860
650802	1617000475	Support clamp	1	6,380
651	1613001009	Depth-Gauge	1	2,530
653	1607A350R2	Battery Pack	1	210,760
653	1607A350R4	Battery Pack	1	210,760	품절
653	1607A350RD	Battery Pack	1	274,450	품절

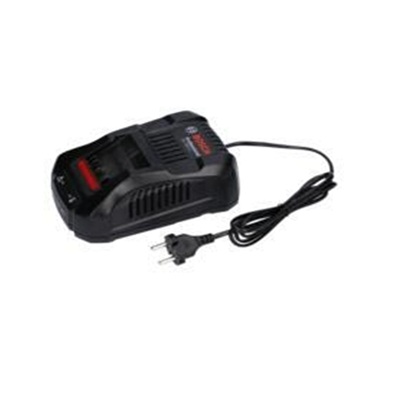

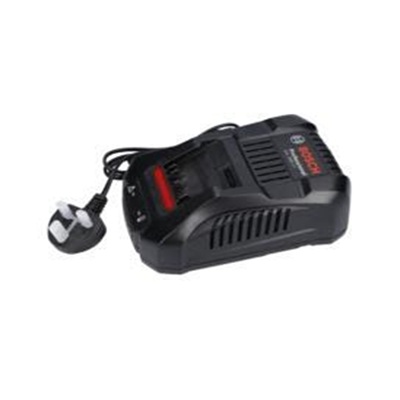

654	2607226457	Charger GAL3680CV	1	133,870	품절
654	2607226459	Charger	1	102,190	품절
654	2607226465	Charger	1	102,190
801	1617000A4W	Motor Housing	1	24,200
803	1617000473	Armature With Fan	1	91,850
804	1617000890	Electronics Module	1	91,850
805	1609280425	Contact retainer	1	11,220
806	1617000889	On-Off Switch	1	33,110
807	1607233209	Electronics Module	1	117,370
808	160111A3H9	Nameplate	1	1,980
816	1607000496	Carbon-Brush Set	1	54,670
816	1617014142	Carbon-Brush Set	1	6,930
820	1617000883	Intermediate Flange	1	30,140	품절
821	1617000V42	Pipe	1	54,670	품절
823	1617000884	Toothed Shaft	1	26,840

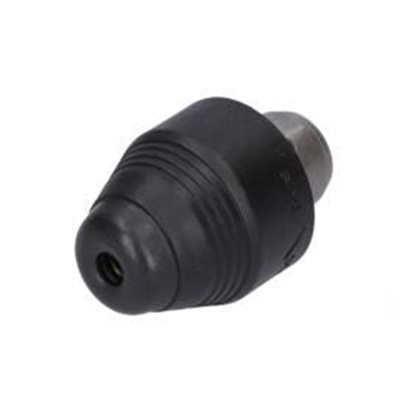

825	1617000895	Tool Holding Fixture Tool Holding	1	33,110
825203	1610508047	Protective Cap	1	1,650
828	1617000V43	Striker Pin	1	33,110
833	1610590014	Holding Jacket	1	1,650	품절
840	1617000V55	Gear Housing	1	26,840
840/48	1611098008	Tab Washer	1	1,650
840/63	1610910063	Needle bearing	1	3,740
840/68	1610283036	Rotary shaft lip seal	1	4,840
840/78	2603490022	Screw	1	1,210
861	1615820097	Switching Element	1	3,080
864	1617000A07	Supporting Disc	1	6,930
890	1617000V41	Guide Sleeve	1	6,930
891	16170006CS	Hammer Pipe	1	73,480	품절
895	1615430001	Grease Tube	1	14,190
896	1615430020	Grease Tube	1	14,190
